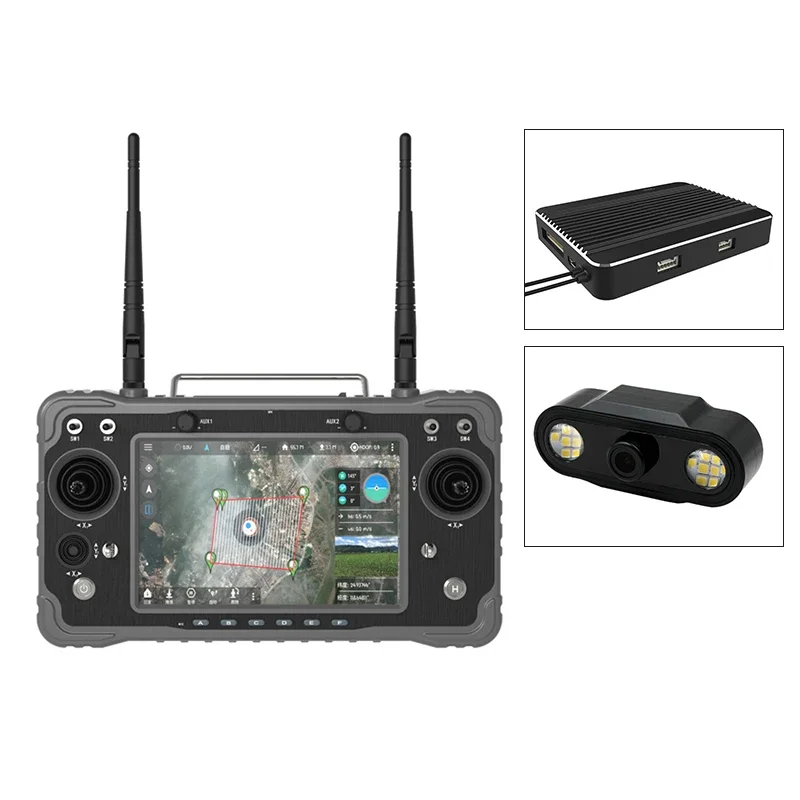

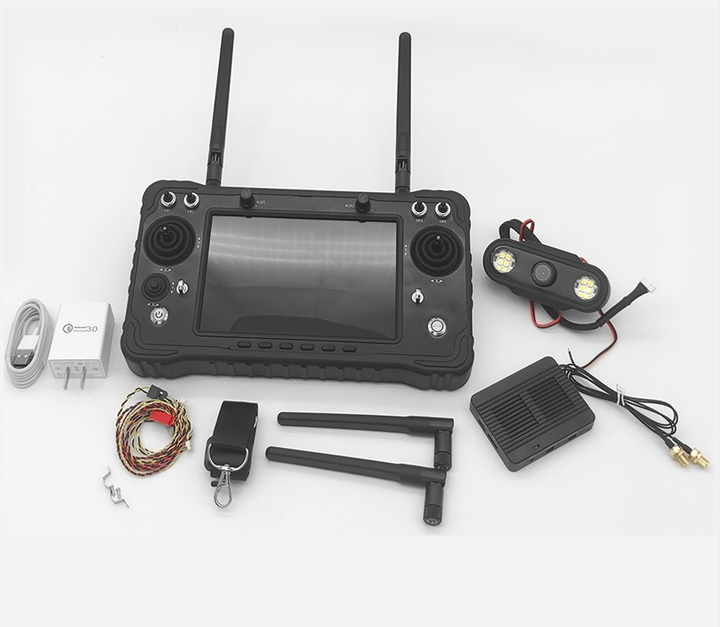

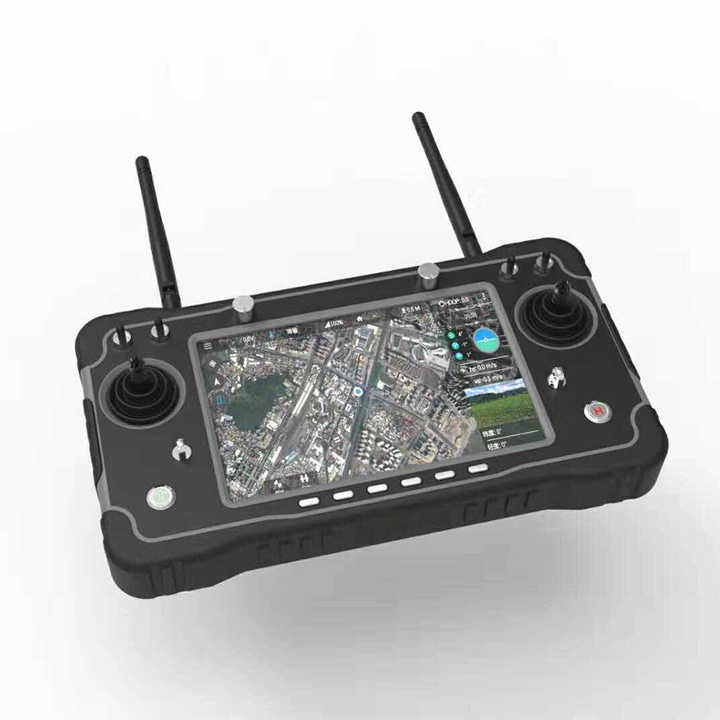

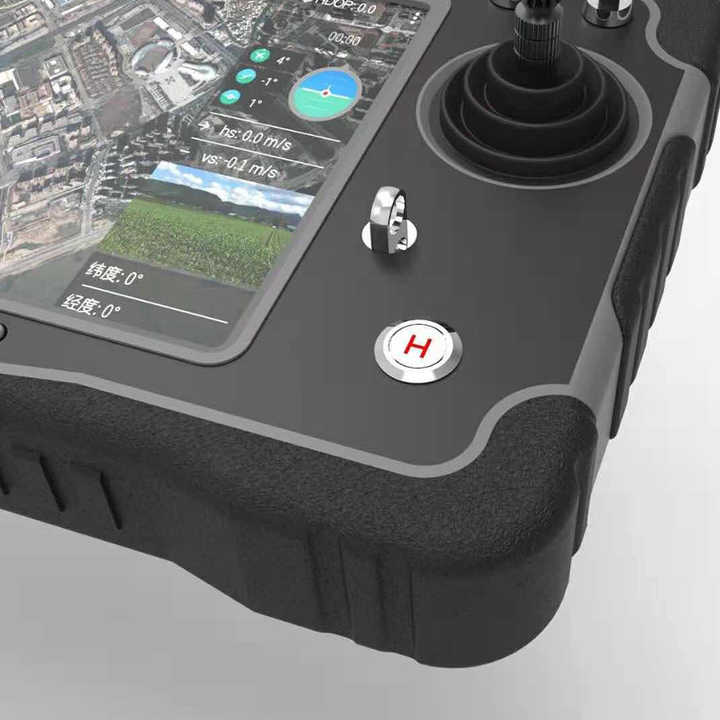

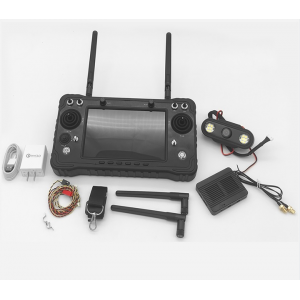

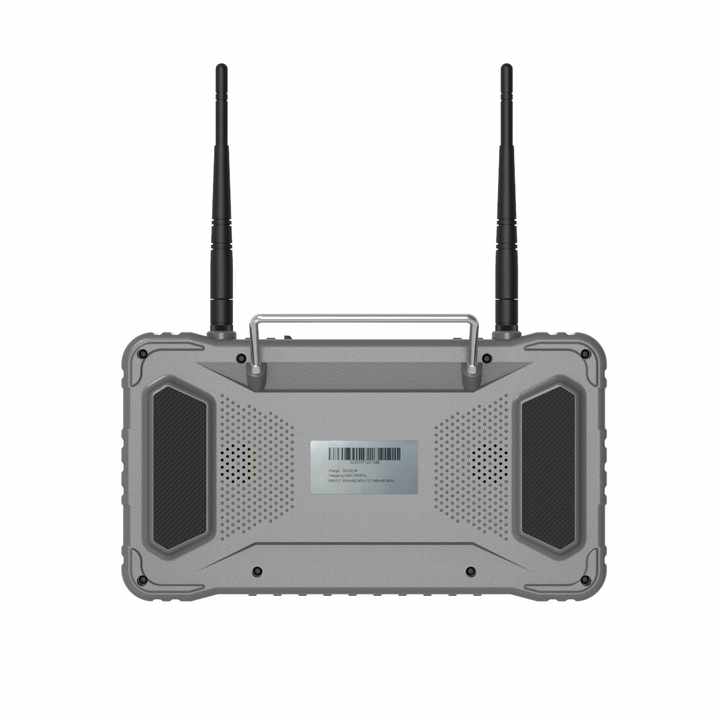

Skydroid H16 PRO 2.4GHz 16CH Fhss 1080P Digital Video Data Transmission Telemetry Transmitter W/ R16 Receiver Mipi Camera DIY
Specifications:Brand Name: SkydroidItem Name: H16 / H16 Pro Transmitter SetNumber of channels: 16 channelsFrequency: 2.400-2.483GHzWorking voltage: 4.2VWorking Current: 100mARF Power: 20DB@CE/23DB@FCC
Detailed Information
Specifications:
Brand Name: Skydroid
Item Name: H16 / H16 Pro Transmitter Set
Number of channels: 16 channels
Frequency: 2.400-2.483GHz
Working voltage: 4.2V
Working Current: 100mA
RF Power: 20DB@CE/23DB@FCC
Modulation: New FHSS
Weight: 1034g
Firmware: APP online
Dimension: 272*183*94mm
Duration: 6-20 hours
Battery Capacitor: 20000mA

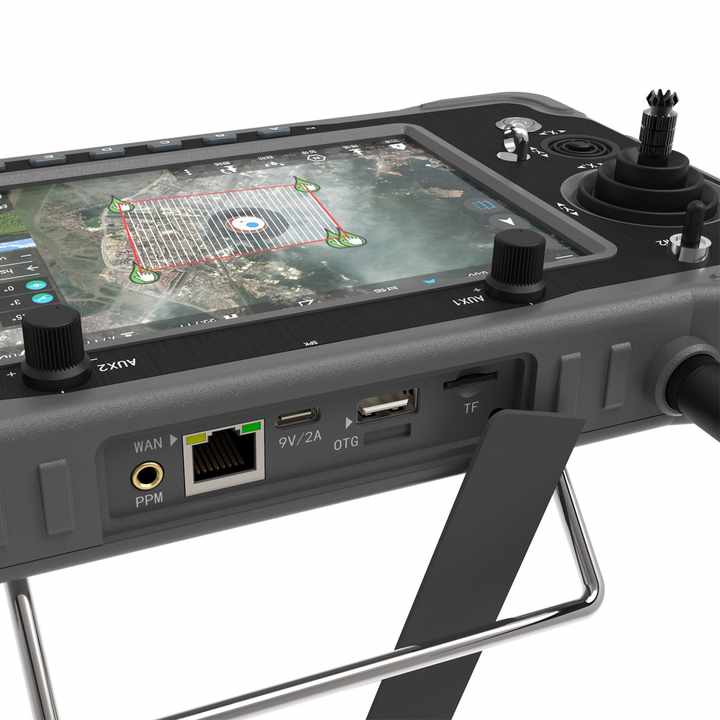

Charge Port: Type-C
Application: Helicopter,Fixed wing,Quadcopter,car boat

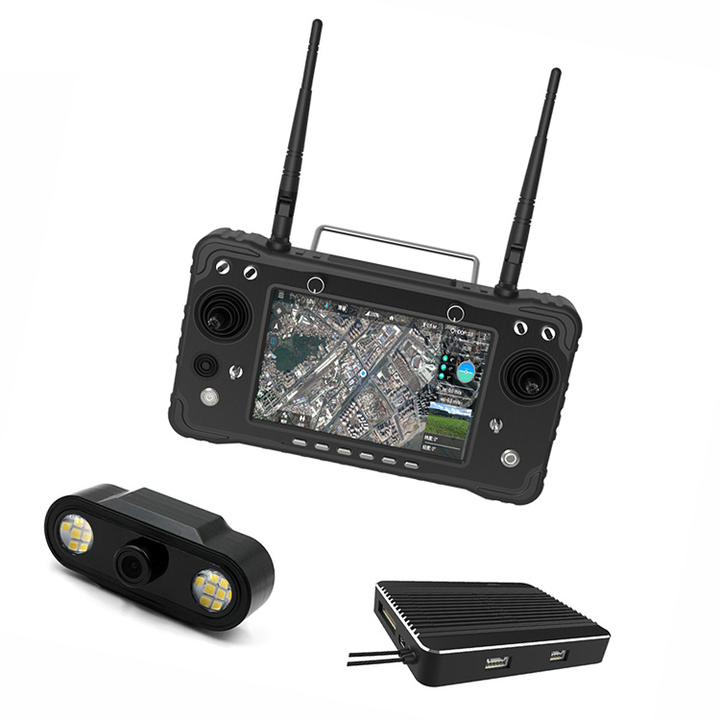

Receiver and Camera:
R16 | MIPI |
Working voltage: 7.2-72V | Working voltage: 14-72V |
Number of channels: 16CH | Working Current: 140mA (Open Light) |
RF Power: 20DB@CE/23DB@FCC | Working Current: 14mA (Not Open Light) |
Size: 76*59*11 MM | Size: 102.1*42.6*36.5 MM |
Weight: 90g | Weight: 55g |
