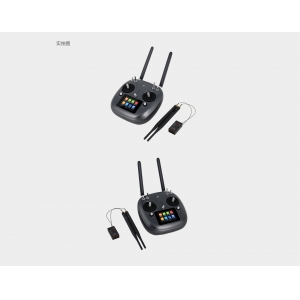

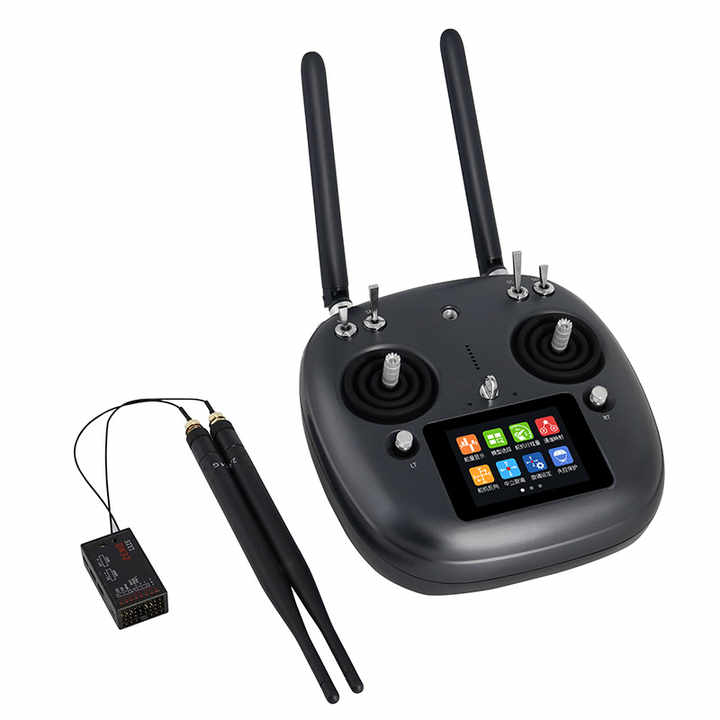

SIYI DK32/DK32S Remote Control Receiver Integrated 2.4G 16CH 10km/20km FPV UAV Agricultural Drones Sprayer

Technical Parameters:Overall performanceMaximum communication distance (no interference, no blocking): 15 kmOperating frequency: 2.400-2.483 GHzNumber of channels: 26 physical channels, 16 receiver ou

Detailed Information

Technical Parameters:
Overall performance
Maximum communication distance (no interference, no blocking): 15 km

Operating frequency: 2.400-2.483 GHz
Number of channels: 26 physical channels, 16 receiver output channels

Support models: plant protection machine / multi-rotor / fixed wing / glider / helicopter

Flight control supported by digital transmissio:TopXgun T1-A
Woozoom THEONE – A
EFY Finix200
JIYI K3A
BOYING PALADIN V2
QIAO Matrix
Cfuas C1-A
Open source flight control PIX, APM
DJI N3, A3 (requires buyer to match DJI expansion module support)

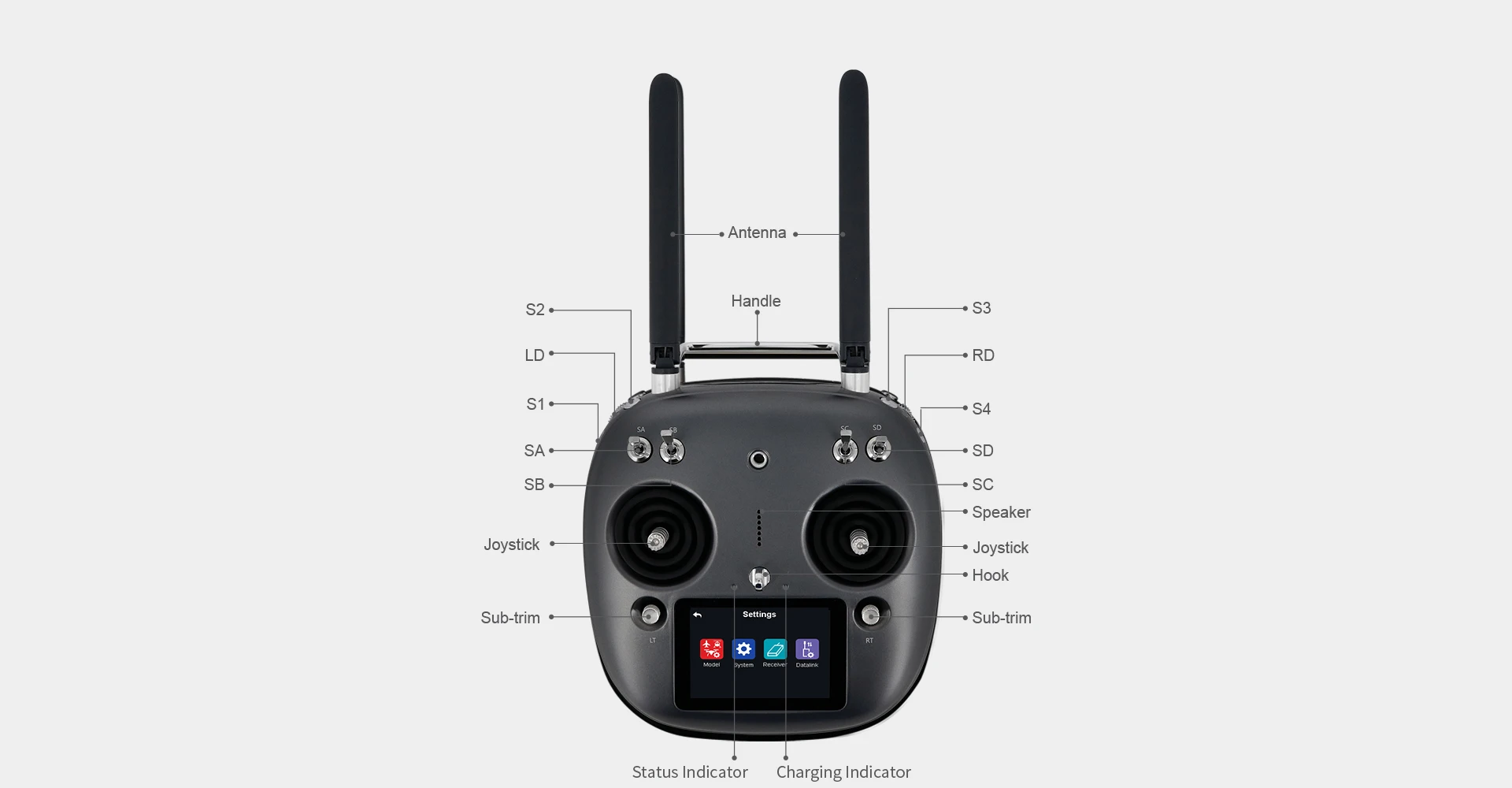

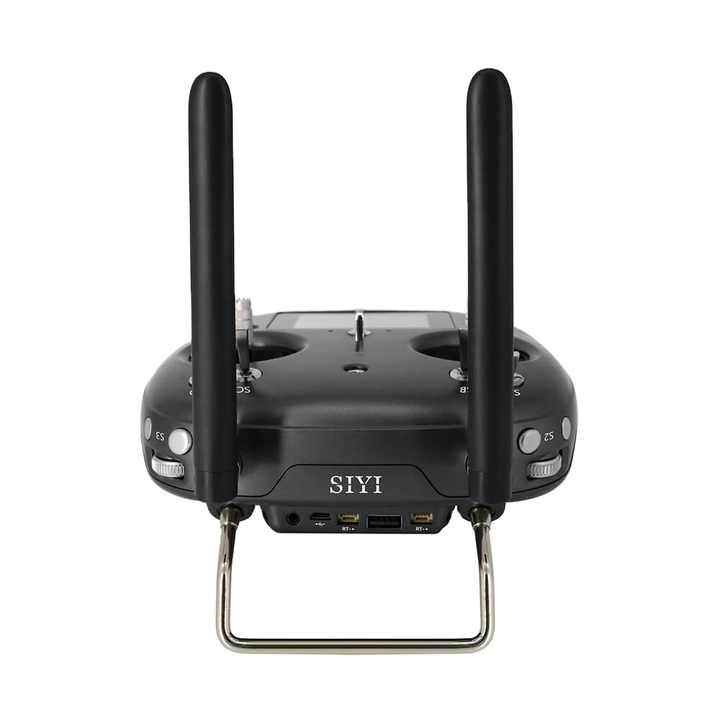

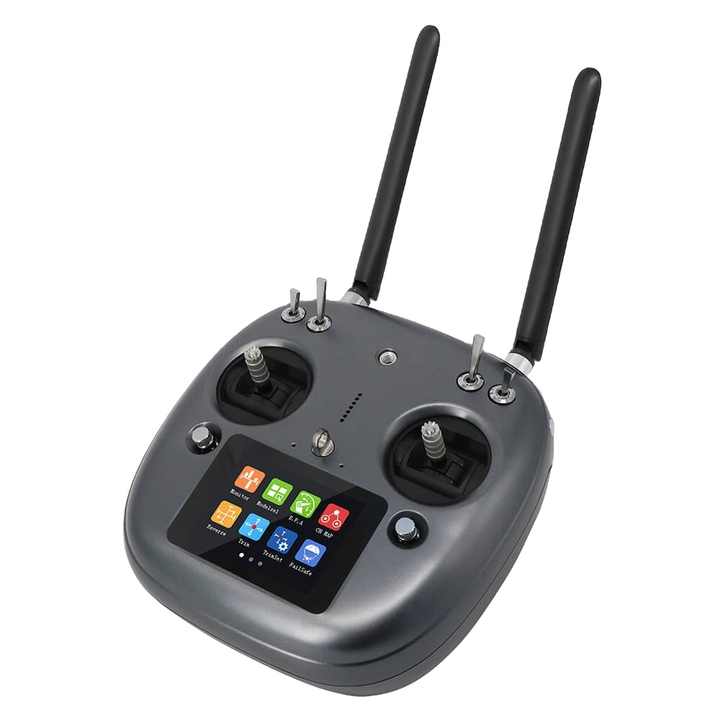

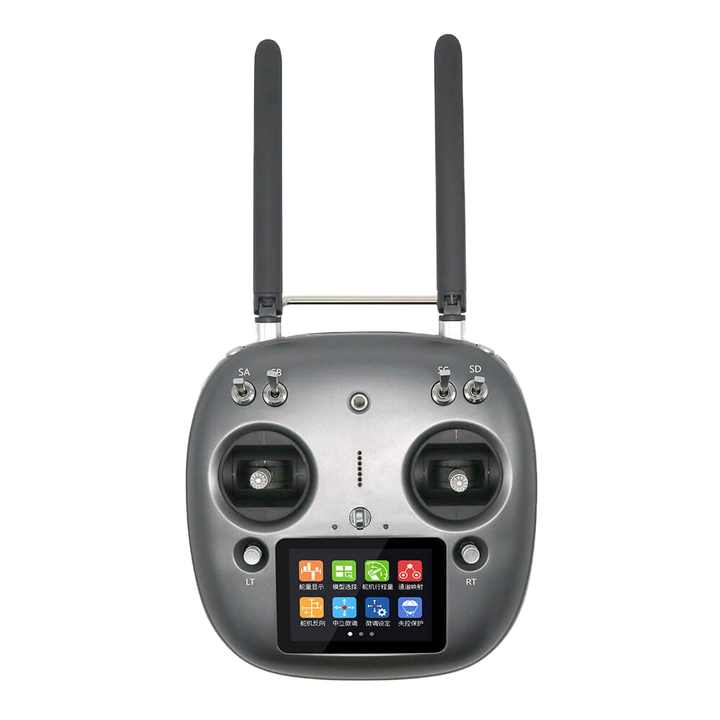

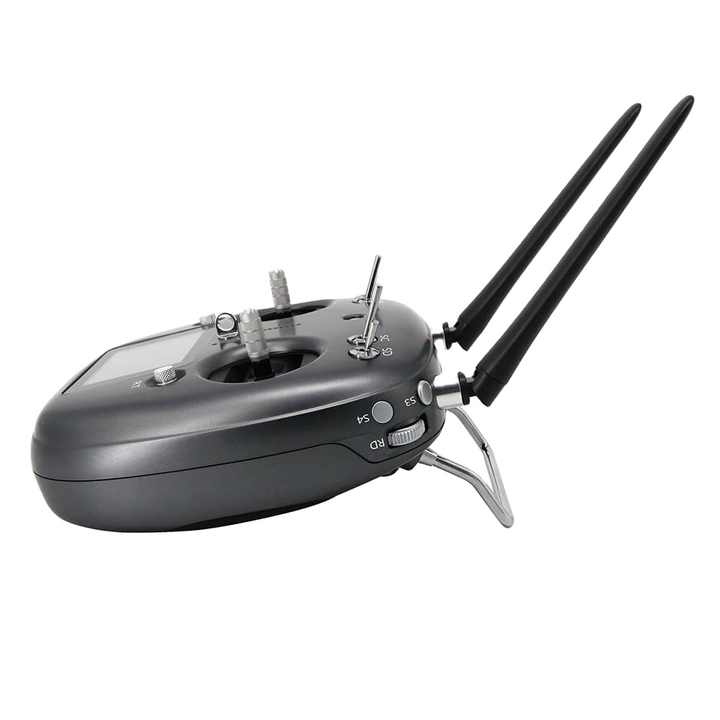

Ground terminal (remote carontrol transmitter)

Language display:Chinese/English

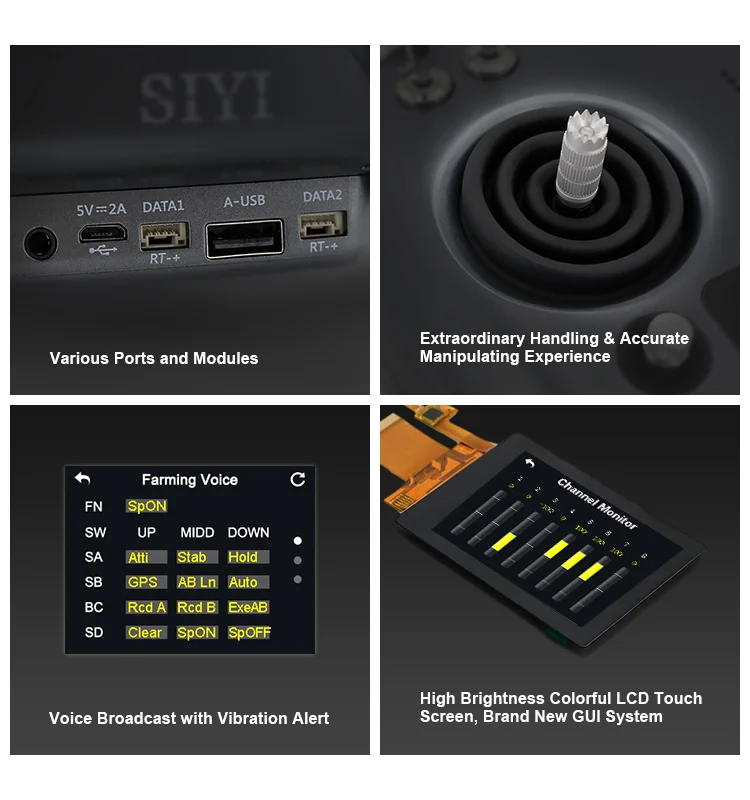

Connect mobile phone, tablet interface A-USB, Micro USB, WIFI (optional)

Dimensions :194.5 x 172.5 x 114mm
Weight :610g

Battery ambient temperature :0°C ~55°C
Battery 4000 mAh Lithium Rechargeable Battery 1S

Charging Micro USB 5V 2A

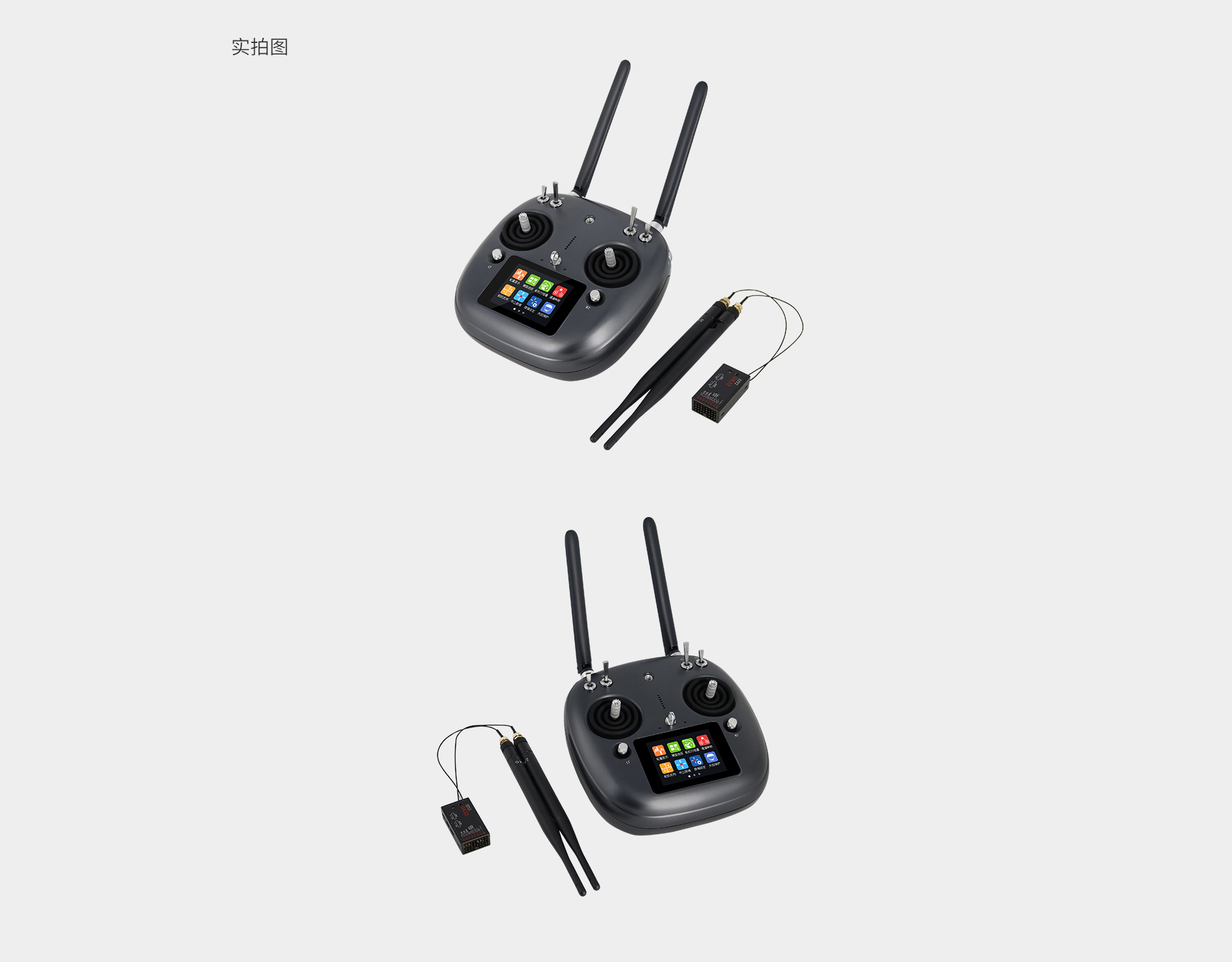

Sky terminal (remote control receiver integrated DATALINK)
Signal output 16-channel S.Bus, 9-channel PPM, 9-channel PWM
Connect flight control interface UART, CAN (optional)
Dimensions (without antenna) 49 x 26 x 14mm
Weight (without antenna) 22g
Antenna gain 5dBi
Working voltage 5 V-8.4V
Working environment temperature -10 ° C to 55 ° C
