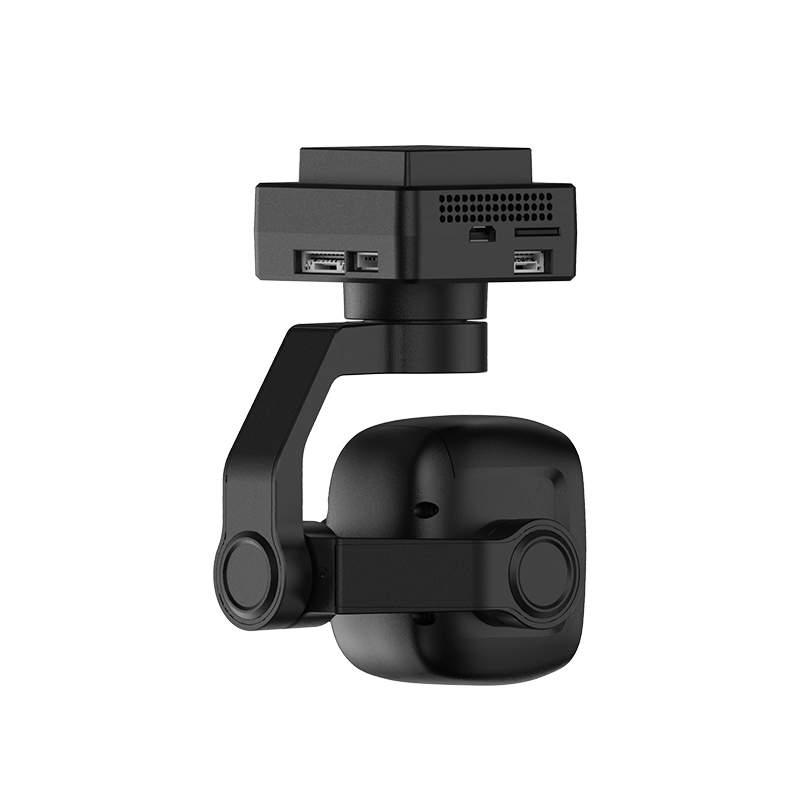

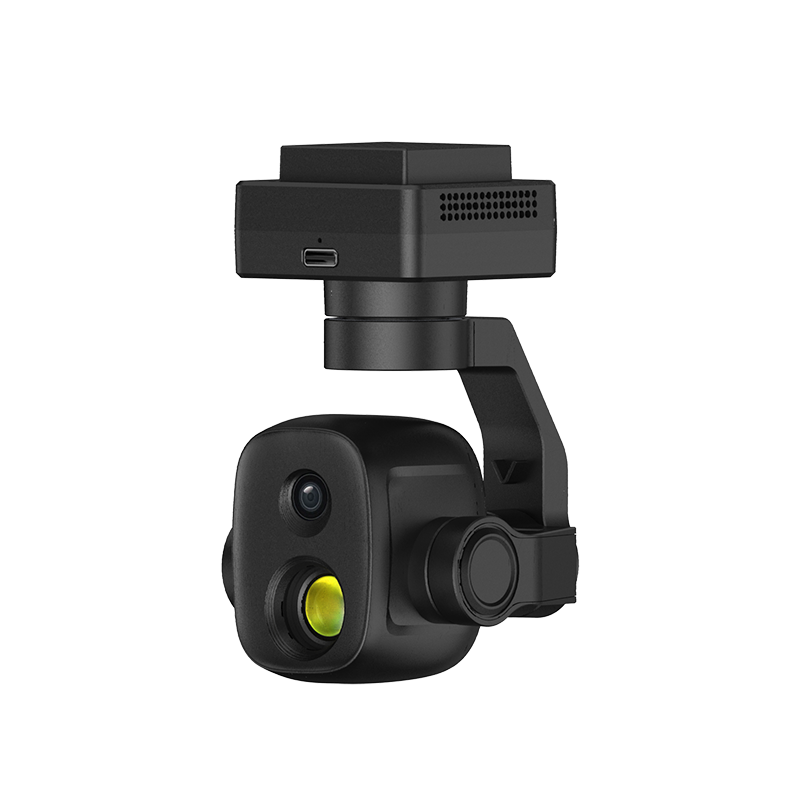

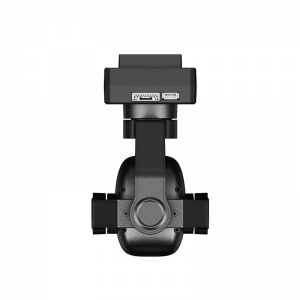

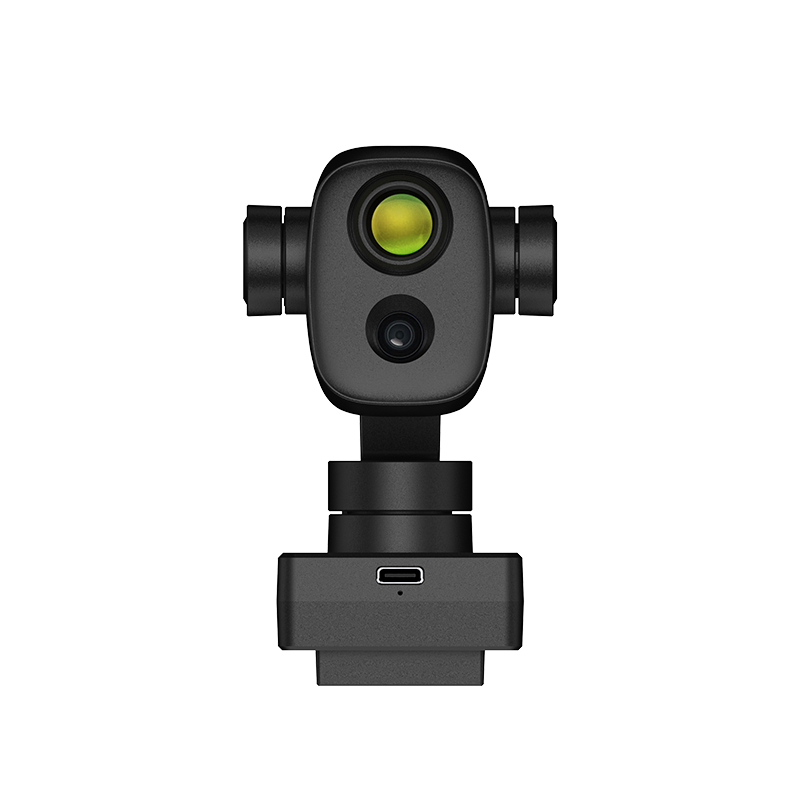

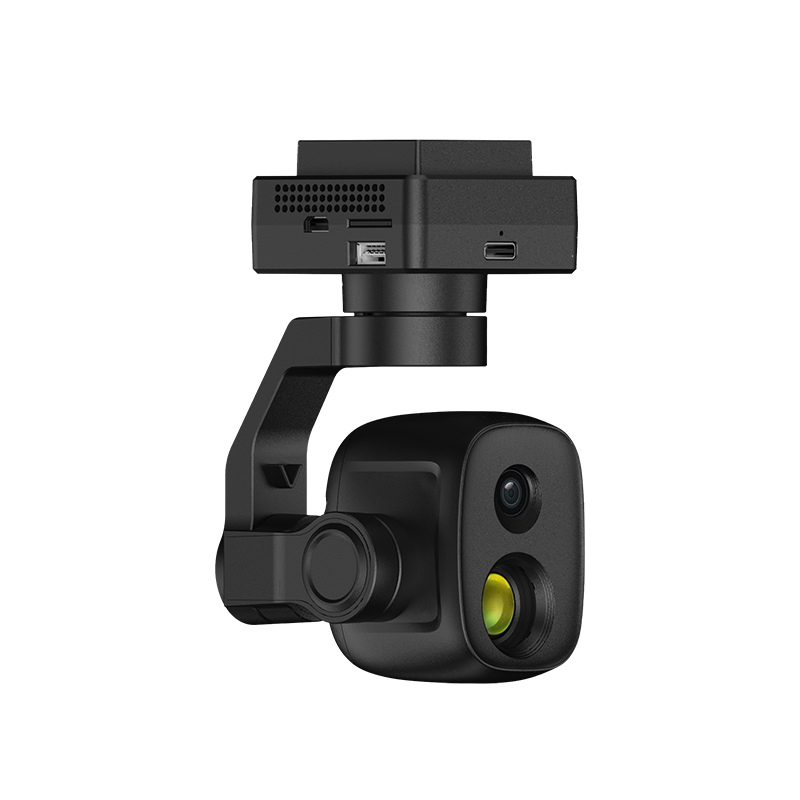

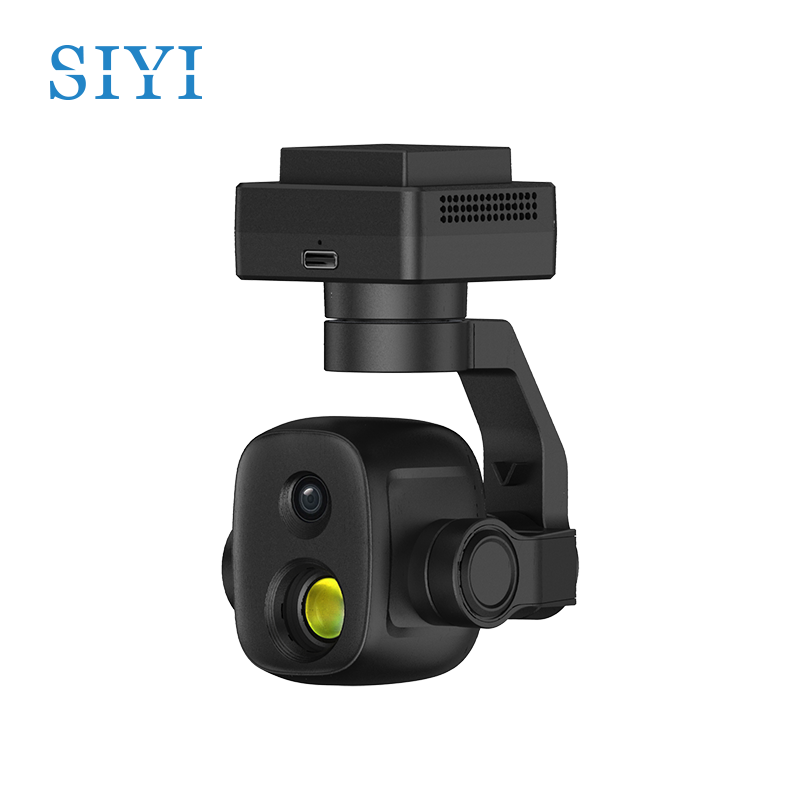

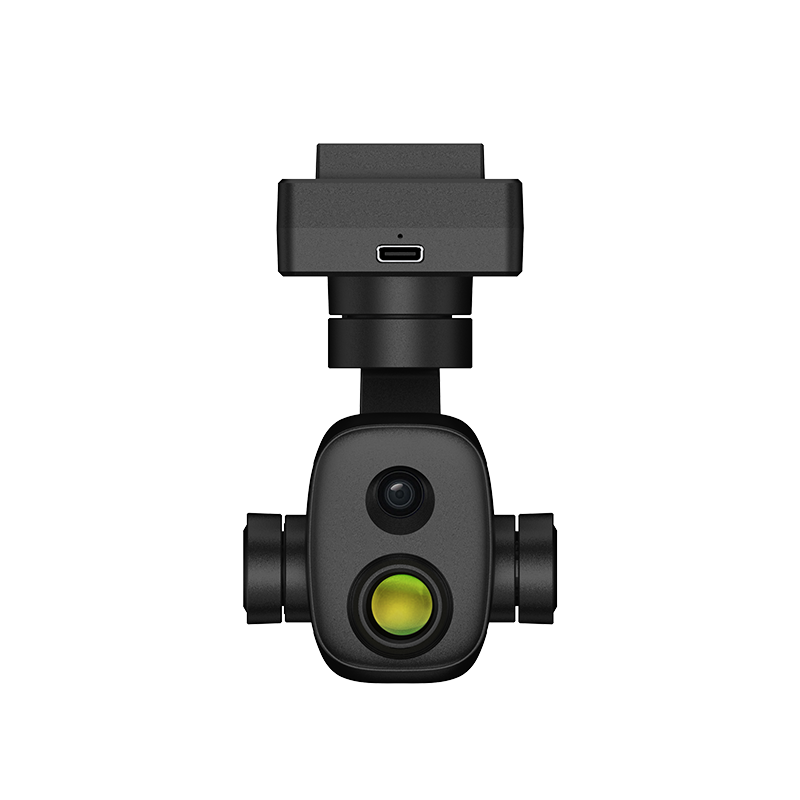

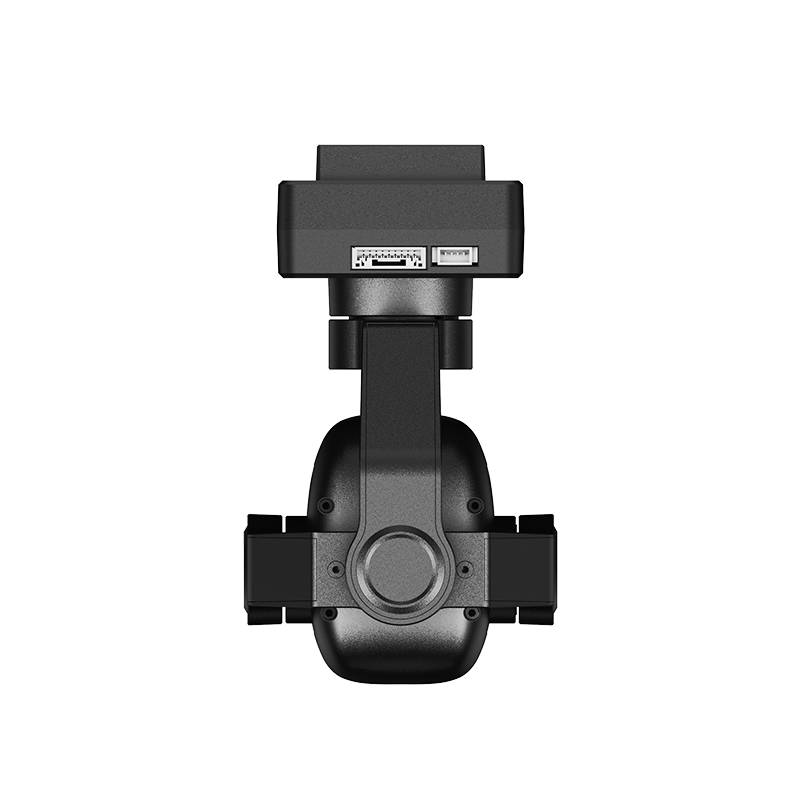

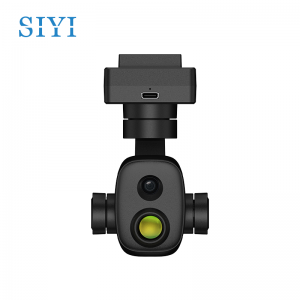

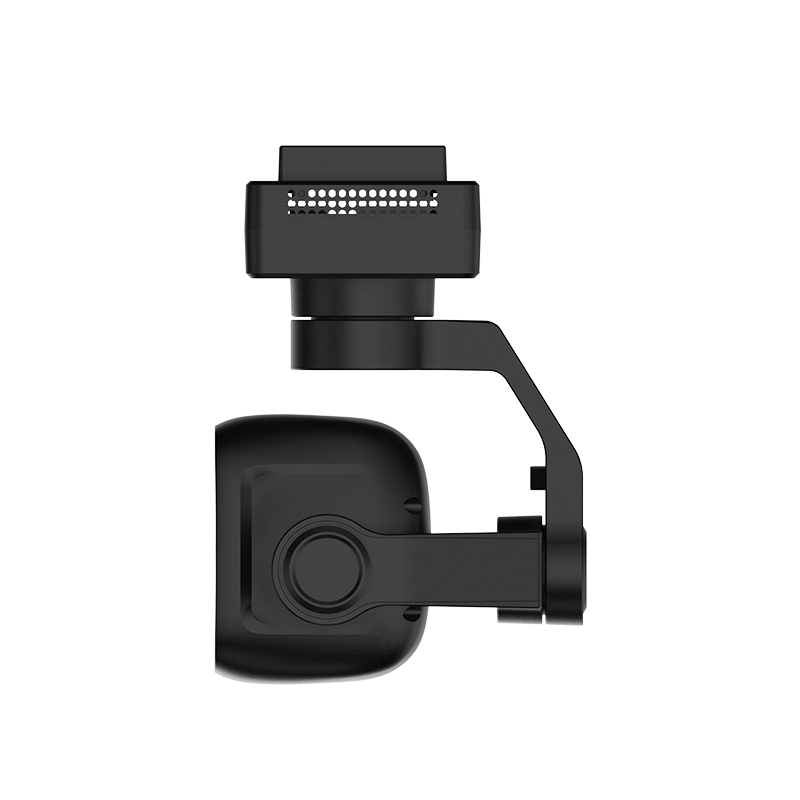

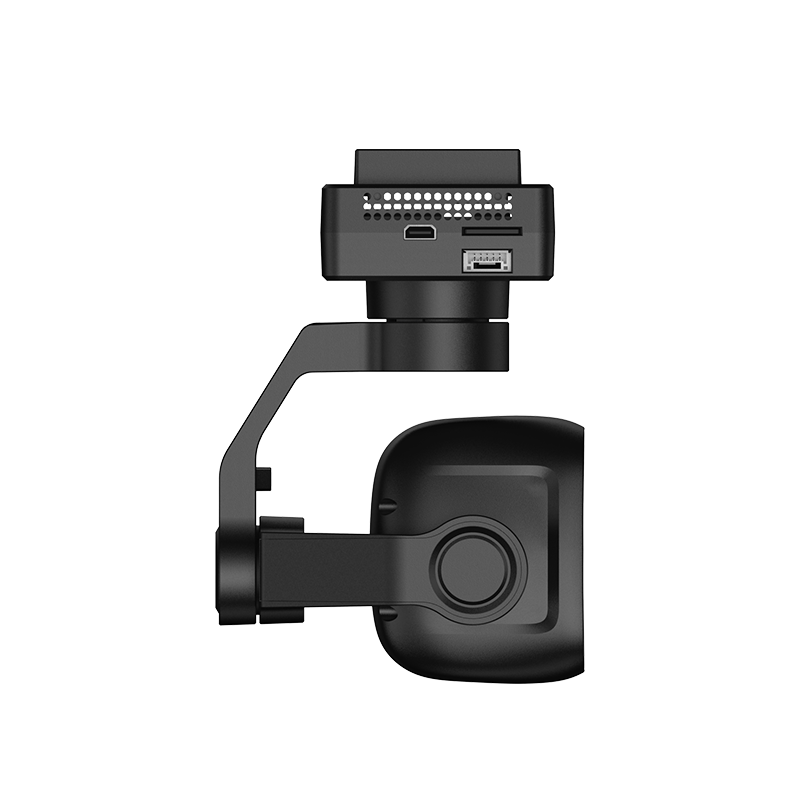

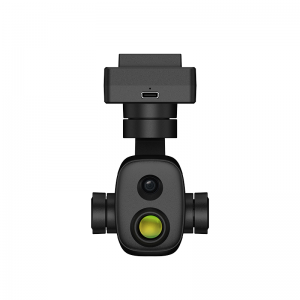

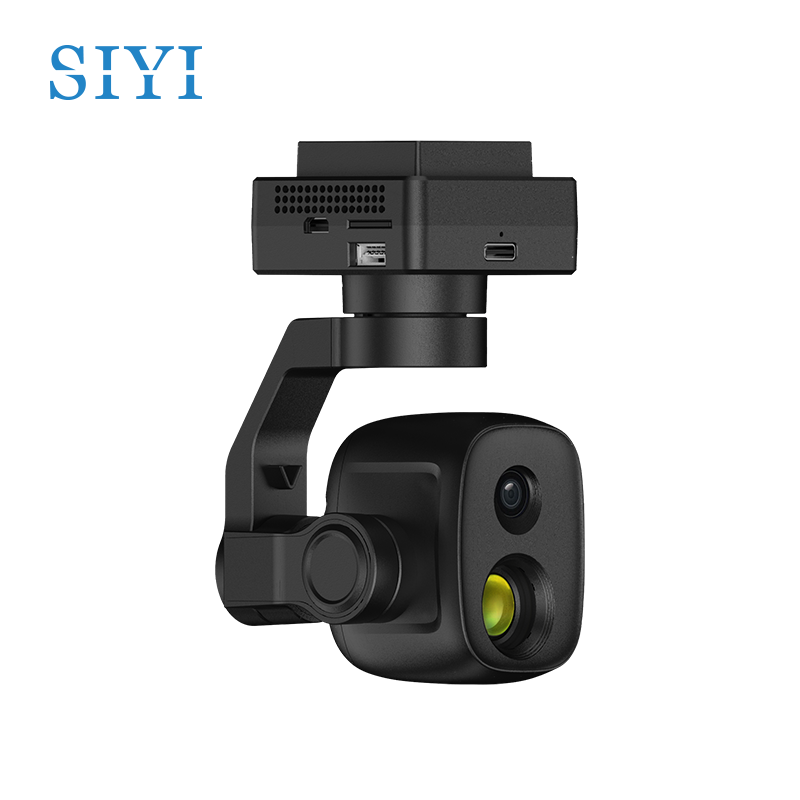

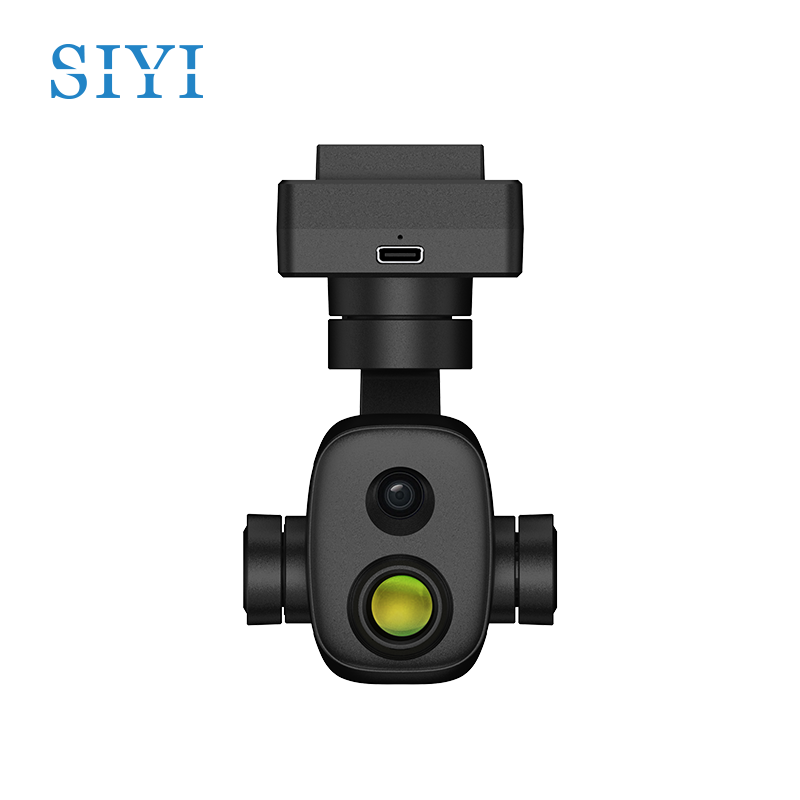

SIYI ZT6 4K 8MP 6X Digital Zoom Dual Sensors Thermal Imaging Temperature Measuring Gimbal Camera

Overall

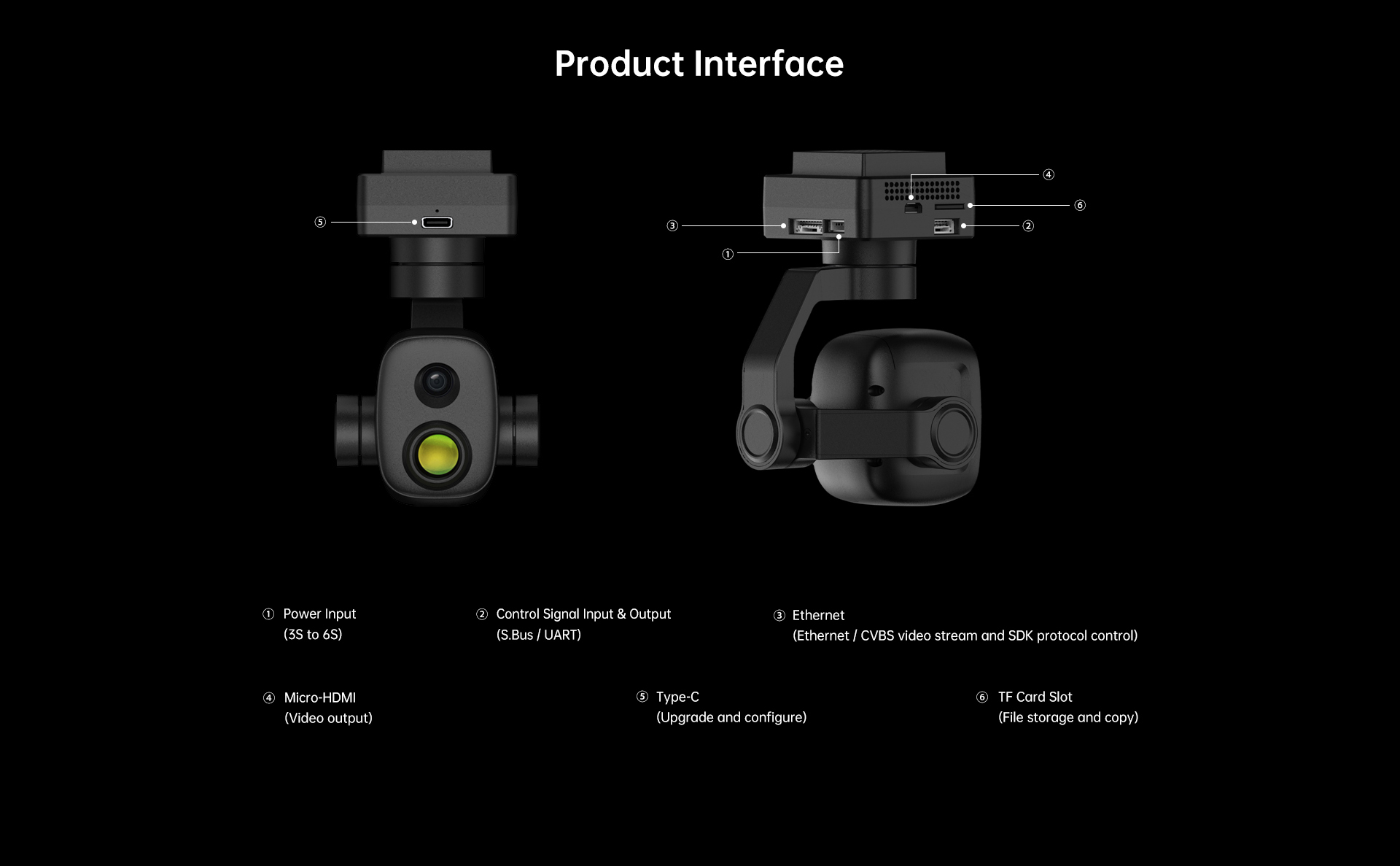

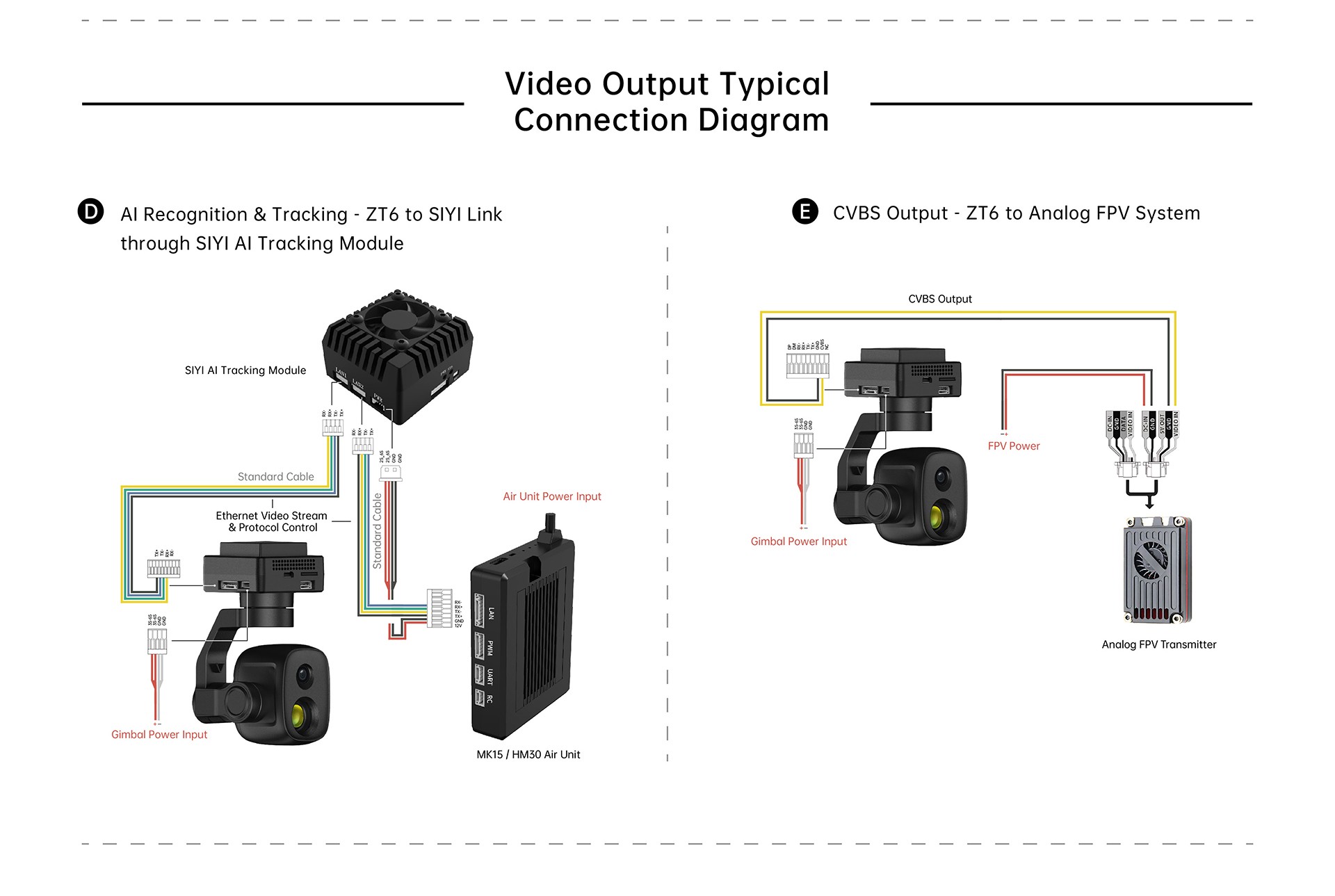

Video Output Port: Ethernet / CVBS, Micro-HDMI

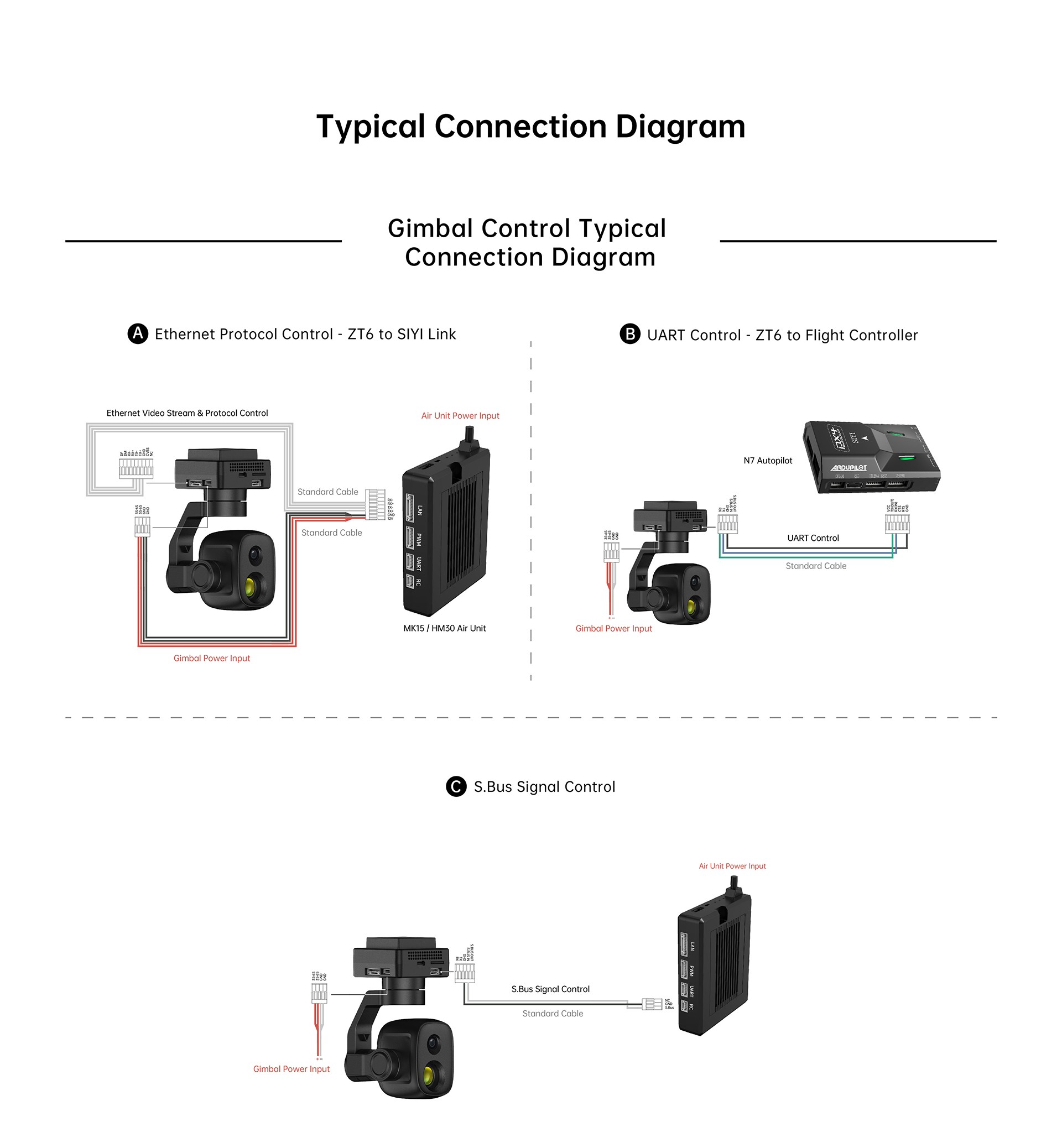

Control Signal Input Port: S.Bus, UART, Ethernet UDP / TCP
Control Signal Output Port: S.Bus
High Accuracy 3 Axis Stabilization: Yaw, Pitch, Roll
Working Voltage: 11 ~ 25.2 V
Power Consumption: Average 6.5 W, Summit 15 W
Waterproof Level: IP53
Working Temperature: -10 ~ 50 ℃
Dimension: 73.5 x 75 x 131.5 mm

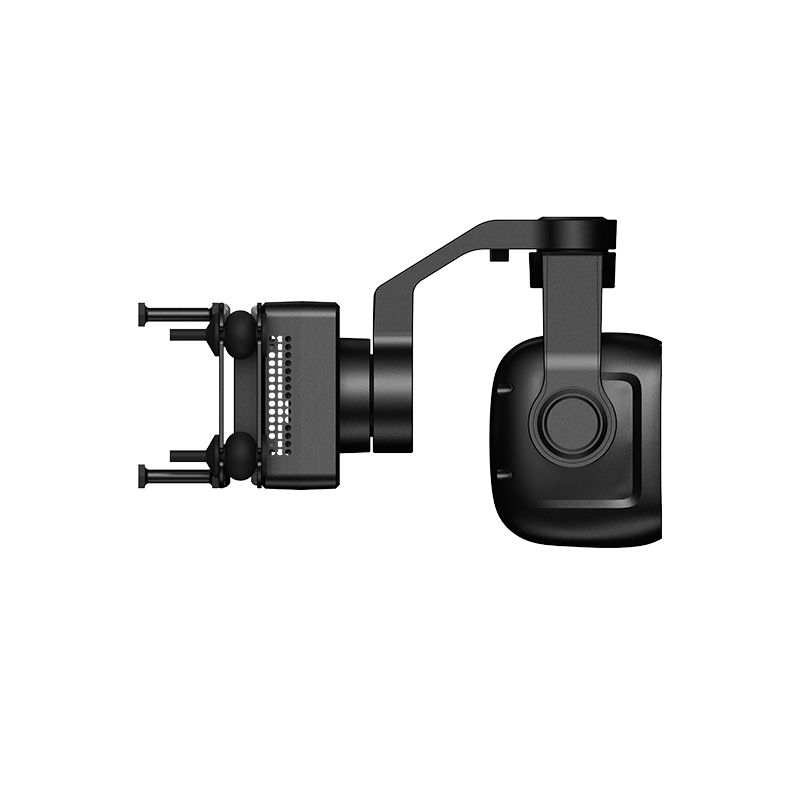

Weight: Excluding Anti-Vibration Board: 177 g
Excluding Anti-Vibration Board: 197 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° ~ +25°

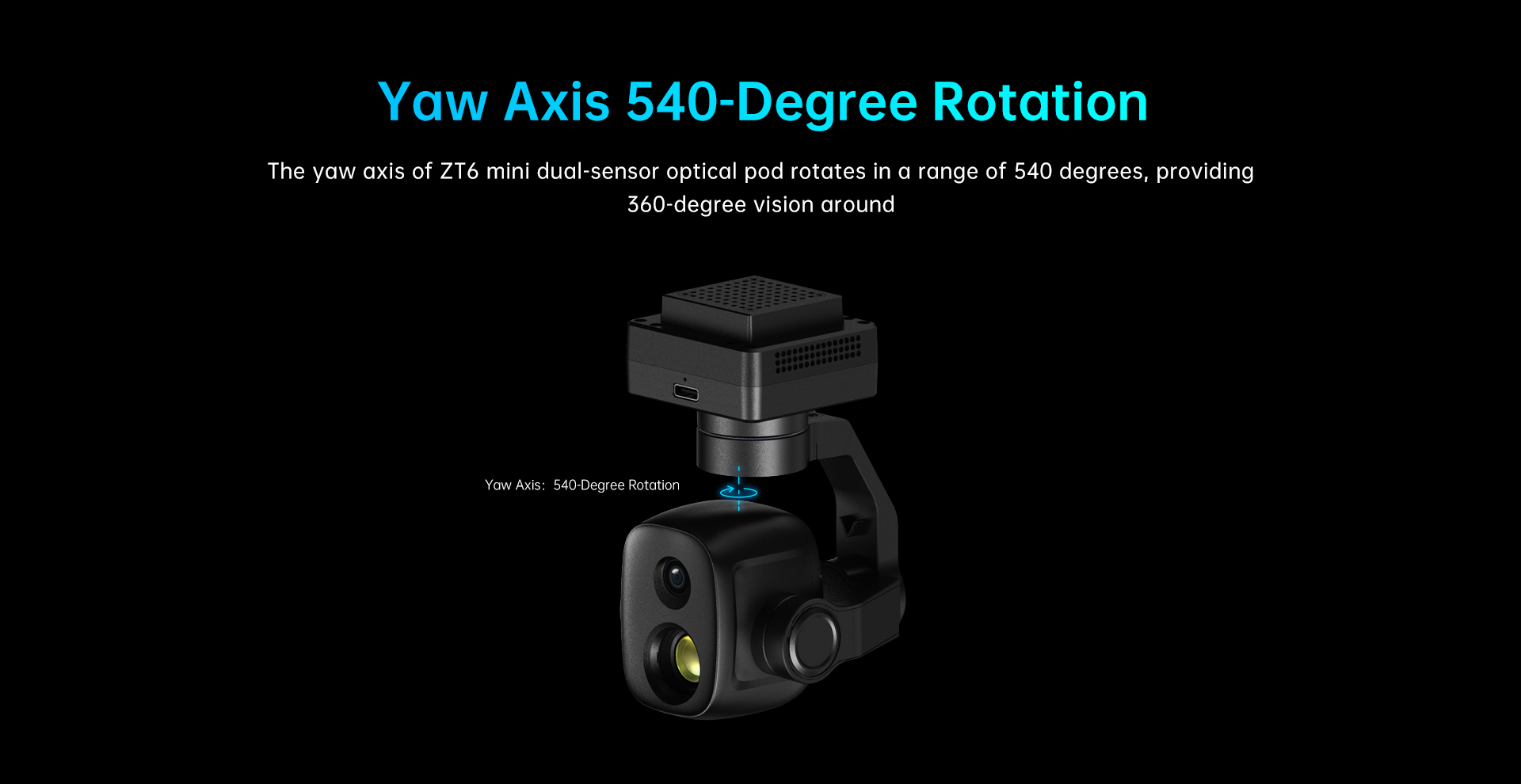

Controllable Yaw Angle: -270° ~ +270°
Rotatable Roll Angle: -45° ~ +45°

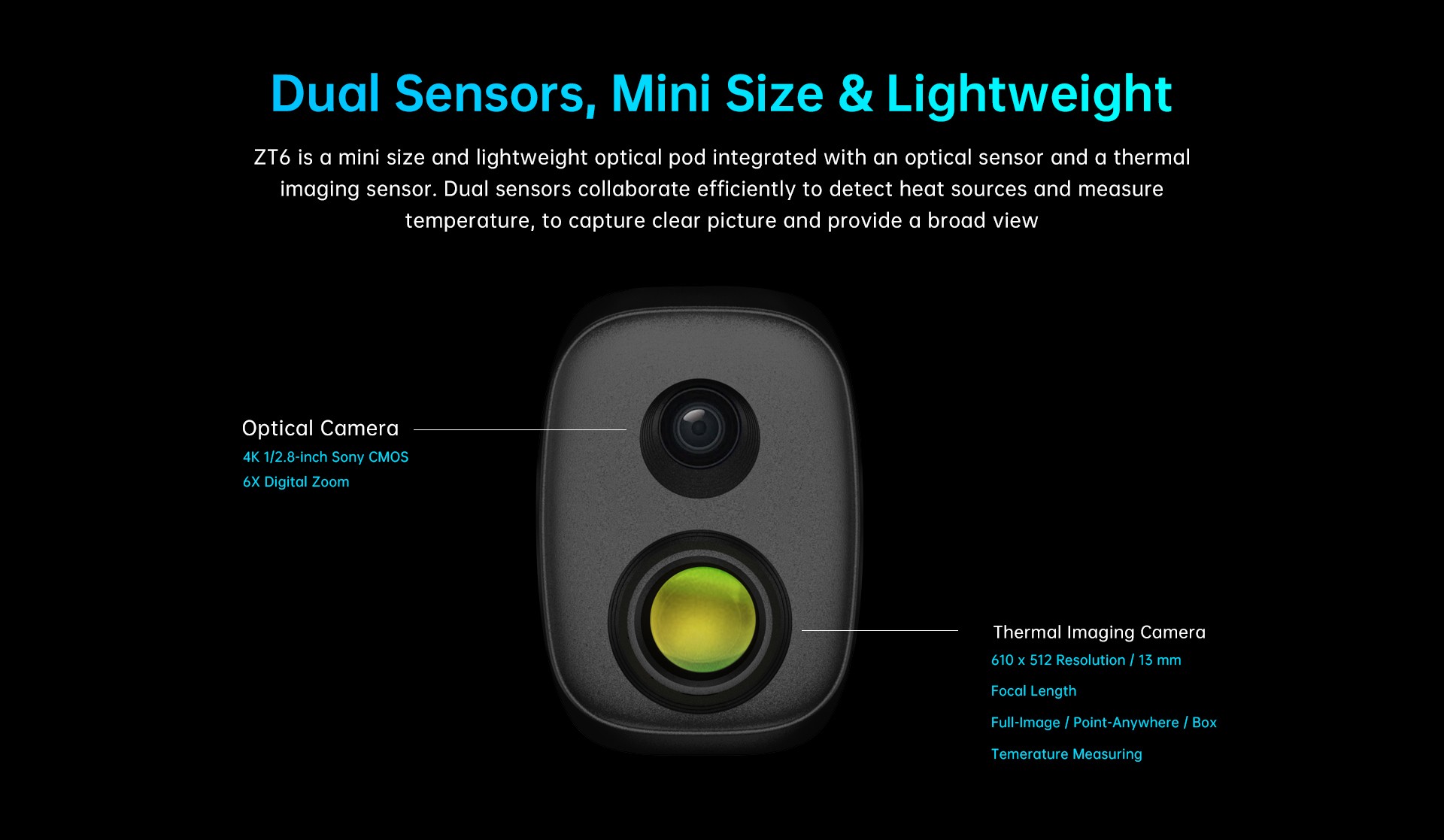

Optical Camera
Lens: Fixed Focal Length, 6x Digital Zoom
Equivalent Focal Length: 20 mm
Image Sensor: Sony 1/2.7 Inch CMOS
8 MP Effective Resolution
Aperture: F2.8
FOV: Diagonal 93° , Horizontal 84.5°
Video Recording Resolution: 4K (3840 x 2160) @ 30 fps, 2K (2560 x 1440) @ 30 fps
1080p (1920 x 1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
Still Photo Resolution: 4K (3840 x 2160)

Thermal Imaging Camera
Thermal Sensor: Uncooled VOx Microbolometer
Resolution: 640 x 512

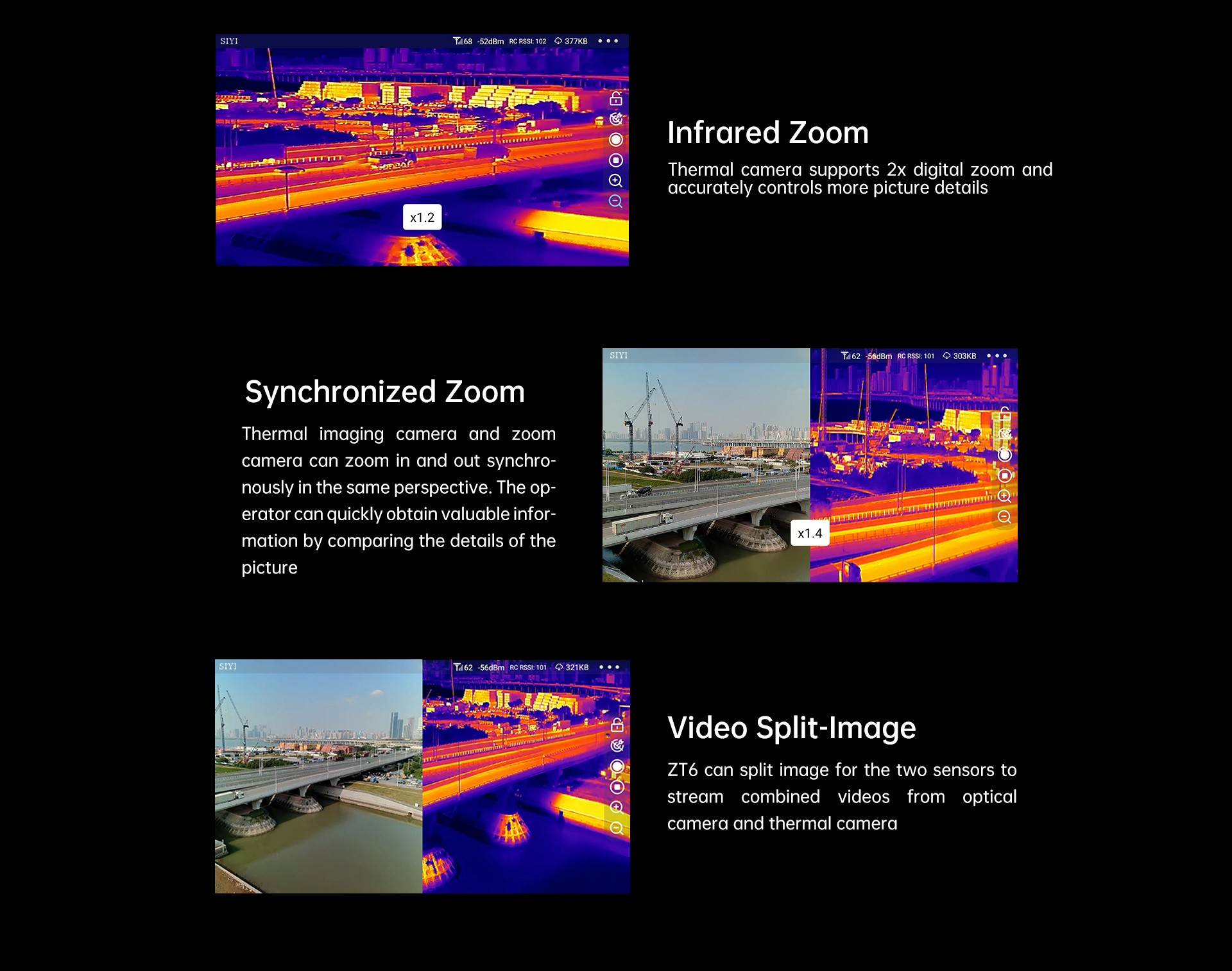

Zoom: 2X Digital
Lens: Focal Length: 13 mm, Aperture: F1.0, Fixed Focus, Athermalization
Wavelength Range: 8 ~ 14 um
Temperature Measuring Range: High Gain: -20 ~ +150℃, Low Gain: 50 ~ +550℃
Temperature Measuring Accuracy: ±2℃ (-20 ~ +150℃) , ±5℃ (50 ~ +550℃)

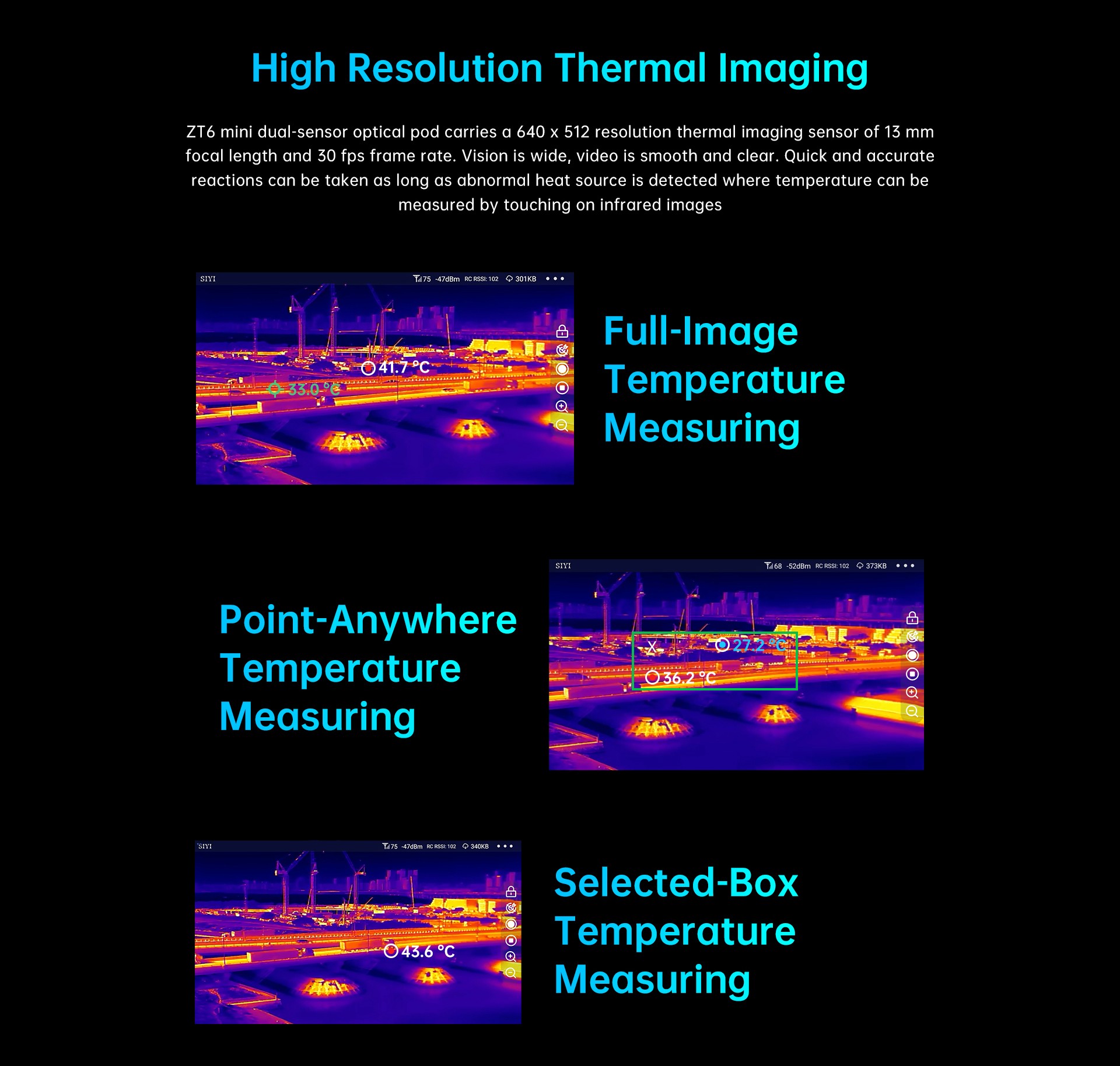

Temperature Measuring Mode: Point Anywhere Measurement, Full Image Measurement
Selected Box Measurement

General Camera Specs
Video Storage Bitrate: 15 Mbps (H.265 Codec)
File Storage Format: FAT32, ExFAT
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 256 GB
Still Photography Mode: Single
White Balance: Auto
