Detailed Information
Specs
Overall

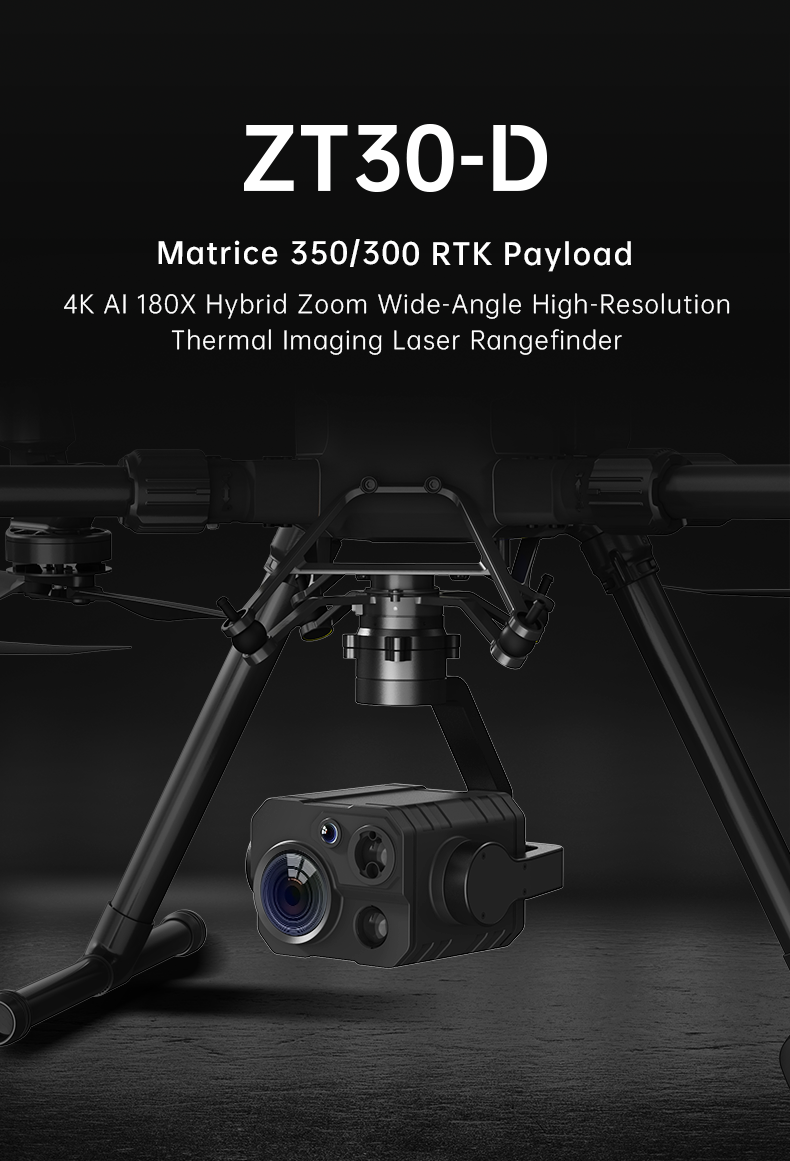

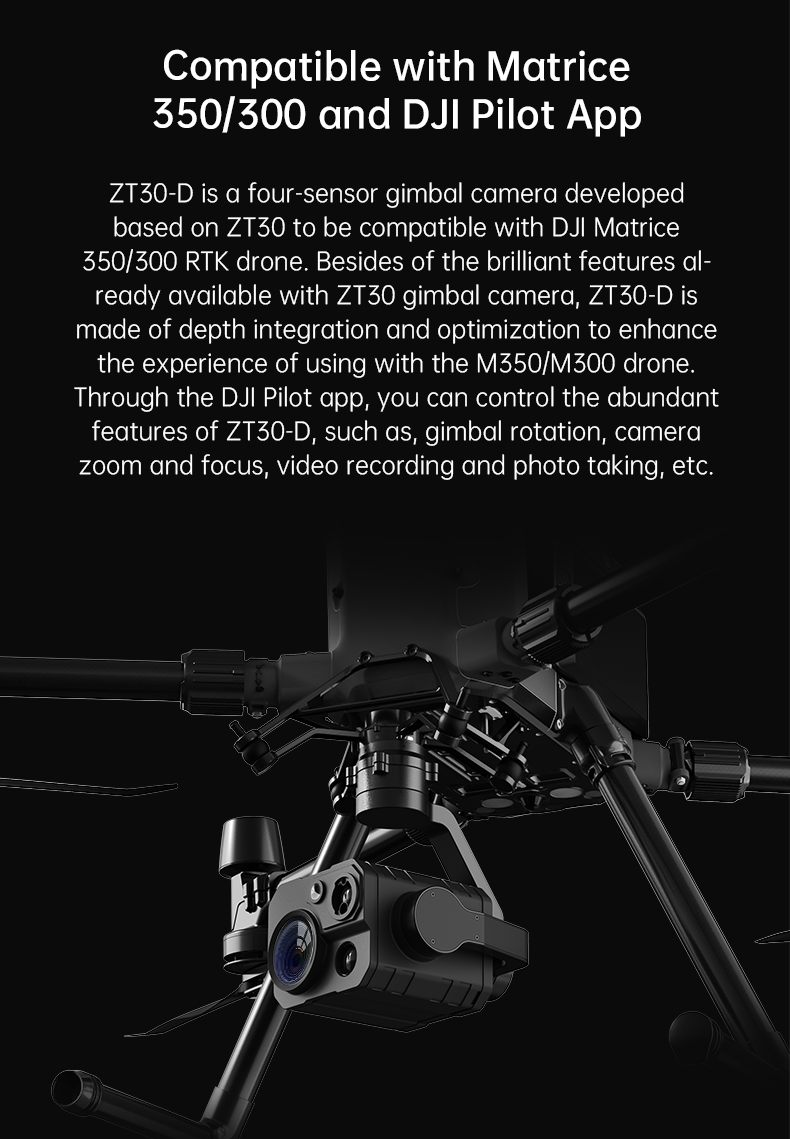

| Compatible Drones | Matrice 350 RTK Matrice 300 RTK |
| High-Accuracy 3-Axis Stabilization | Yaw, Pitch, Roll |
| Waterproof Level | IP4X |
| Working Temperature | -10° ~ 50°C |
| Dimension | 139*134*169 mm |
| Weight | 776 g |
Gimbal
| Angular Vibration Range | ± 0.01° |
| Controllable Pitch Angle | -90° ~ +25° |

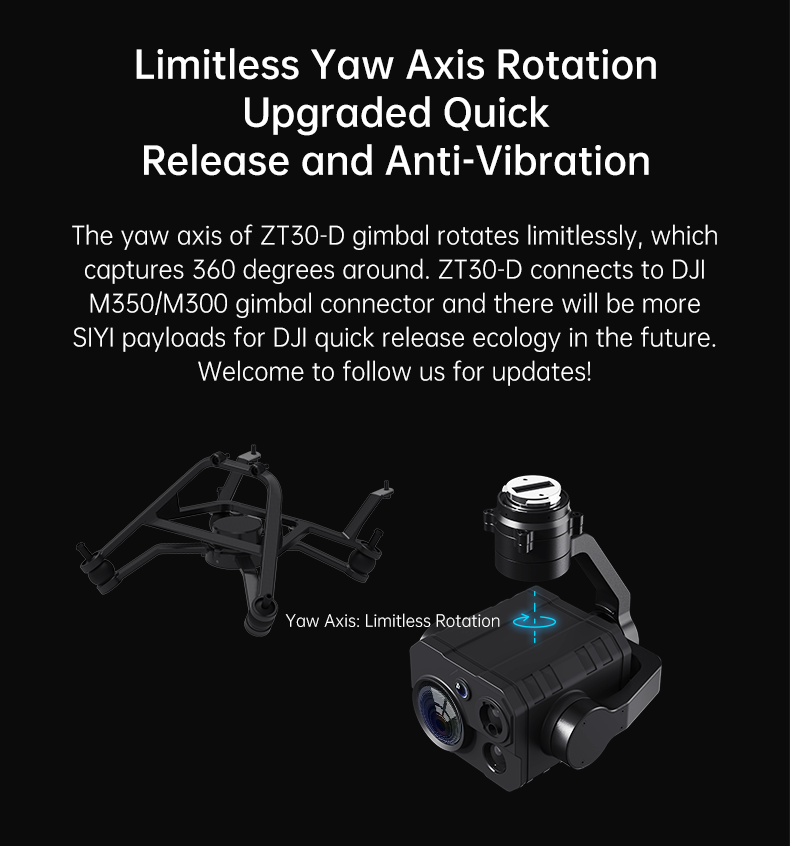

| Controllable Yaw Angle | Limitless |
| Roll Angle | -45° ~ +45° |

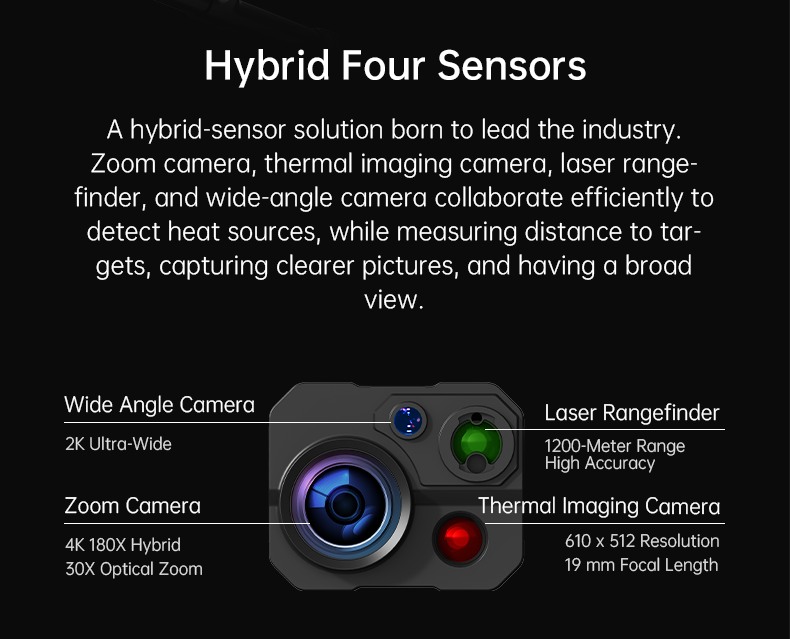

Zoom Camera
| Lens | 30X Optical Zoom (180X Hybrid Zoom) |
| Focal Length | 4.8 ~ 149 mm (±5%) |
| Image Sensor | 1/2.7 Inch, 8 MP effective resoultion |
| Aperture | F1.3 ~ 4.8 (±5%) |
| FOV | Without Zoom: Diagonal 65.4°, Horizontal 58.1° 30X Optical Zoom: Diagonal 2.48°, Horizontal 2.14° |
| Video Recording Resolution | 4K (4096×2160) @ 30 fps 2K (2560×1440) @ 30 fps 1080p (1920×1080) @ 30 fps 720p (1280×720) @ 30 fps |
| Still Photo Resolution | 4K (4096 × 2160) |

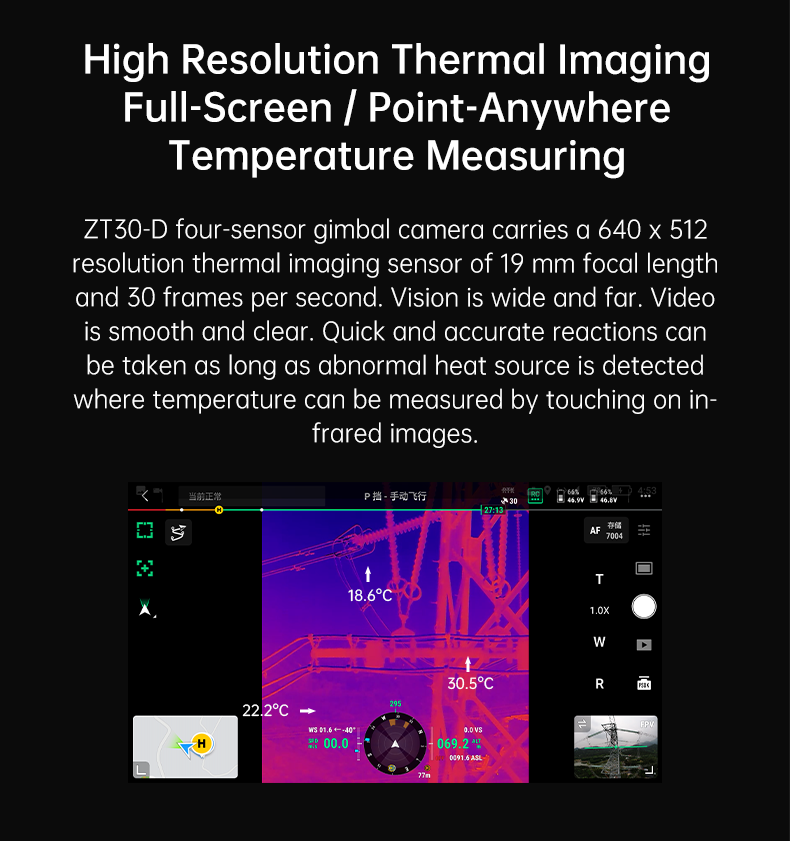

Thermal Imaging Camera
| Thermal Sensor | Uncooled VOx Microbolometer |
| Resolution | 640 × 512 |
| Digital Zoom | 2X |
| Lens | Focal Length: 19 mm Aperture: F1.1 Fixed Focus Athermalization |
| Wavelength Range | 8～14 um |
| Temperature Measuring Range | High Gain: -20 ~ +150 °C Low Gain: 0 ～ +550 °C |
| Temperature Measuring Accuracy | High Gain: -20 ～ +150 °C (±2°C) Low Gain: 0 ～ +550 °C (±5°C) |
| Temperature Measuring Mode | Point to Measurement Full Screen Measurement |
Wide Angle Camera
| Image Sensor | 1/2.8 Inch, 4 MP effective resoultion |
| Equivalent Focal Length | 21 mm |
| FOV | Horizontal 88° |
| Video Recording Resolution | 2K (2560 × 1440) @ 30 fps |
| Still Photo Resolution | 2K (2560 × 1440) |

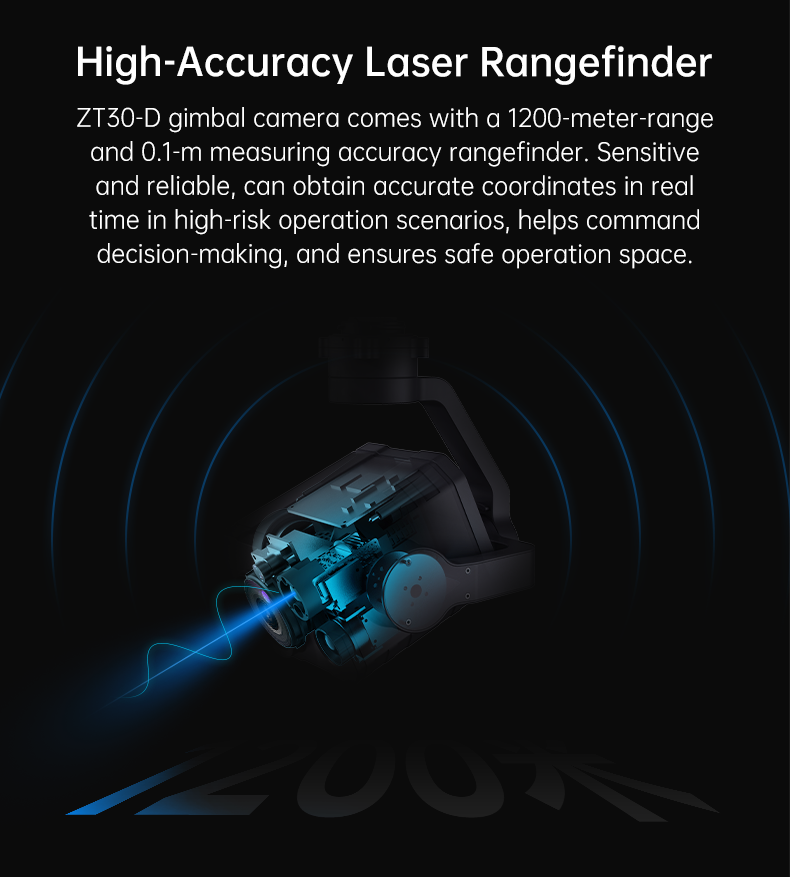

Laser Range Finder
| Range | 5 ～ 1200 m |
| Wavelength Range | 900 ～ 908 nm |
| Resolution | 0.1 m |
| Ranging Accuracy | ±1 m (3 ~ 100 m) ±1 + L*0.25% m, L=Length (100 ~ 600 m) |
| Laser Pulse Frequency | 3 Hz |
| Max Laser Power | 5 mW |
General Camera Specs
| Video Storage Bitrate | 15 Mbps (H.265 codec) |
| File Storage Format | FAT32 |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, Max 128GB |
| Still Photography Mode | Single |
| Metering Mode | Evaluative metering |
