Detailed Information
Brand name: HSKRC

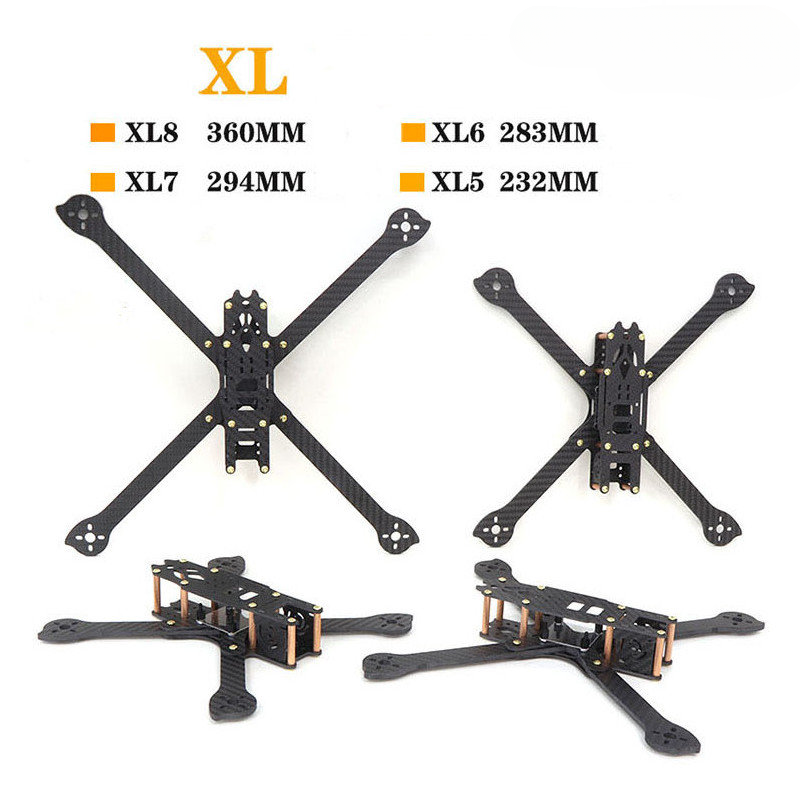

Item name: XL5/6/7/8/9 Frame kit
Wheelbase: 232/283/294/360/390mm
Meterial: Carbon Fiber + Aluminum column
Arm board: 4mm
Center board: 2mm
Camera install distance: 22mm
Frame Space: 23mm (Support 2 board flytower)
Flight Controller: F3/F4 30.5x30.5mm install hole
Item name: XL5/6/7/8/9 Frame kit
Wheelbase: 232/283/294/360/390mm
Meterial: Carbon Fiber + Aluminum column
Arm board: 4mm
Center board: 2mm
Camera install distance: 22mm
Frame Space: 23mm (Support 2 board flytower)
Flight Controller: F3/F4 30.5x30.5mm install hole

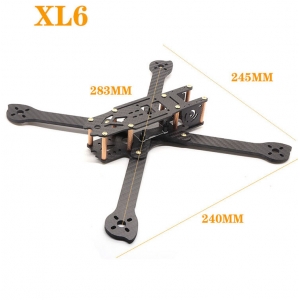

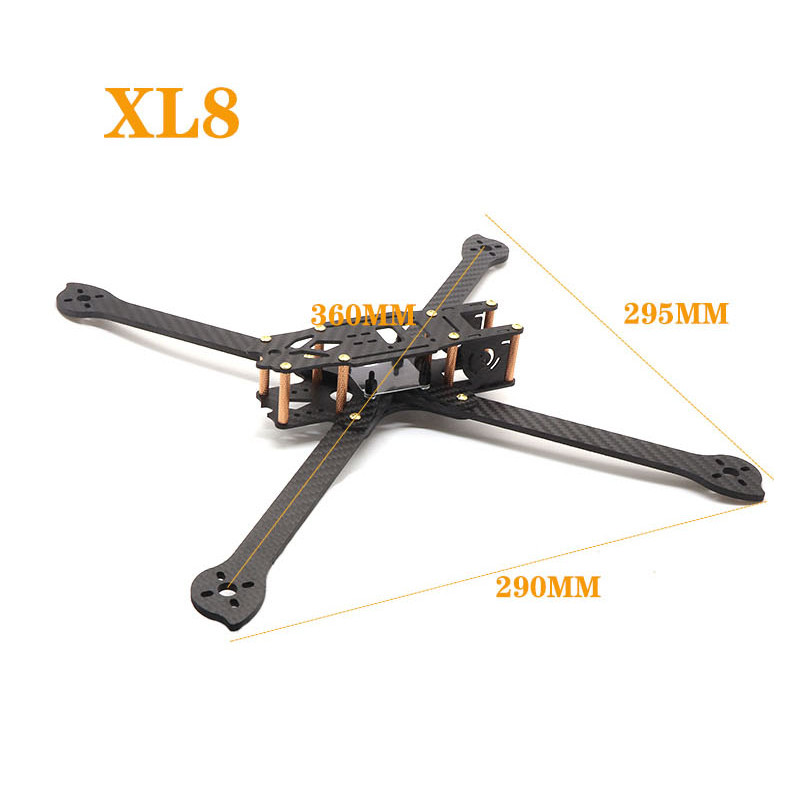

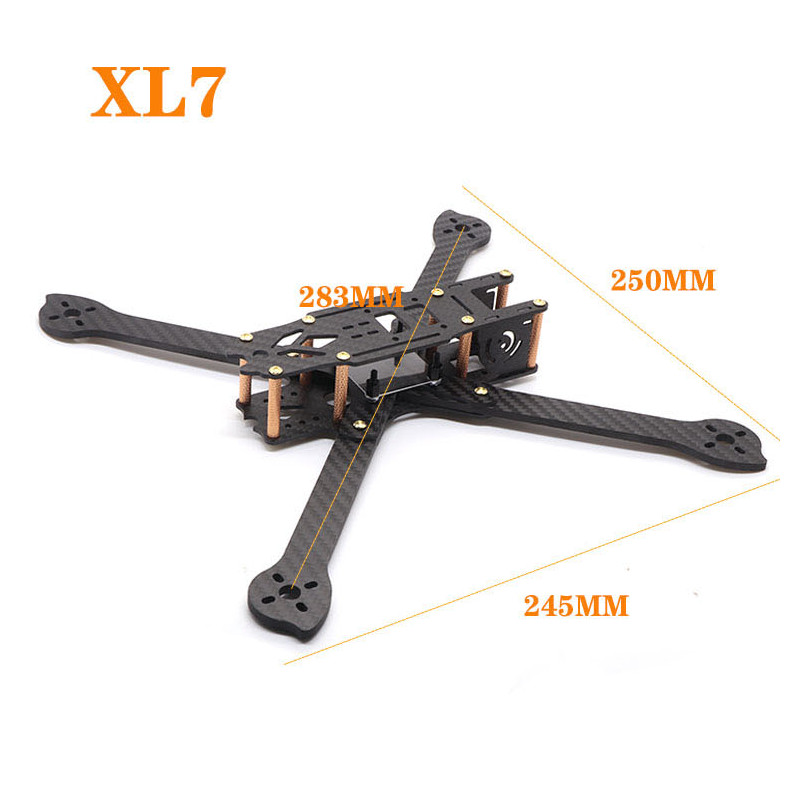

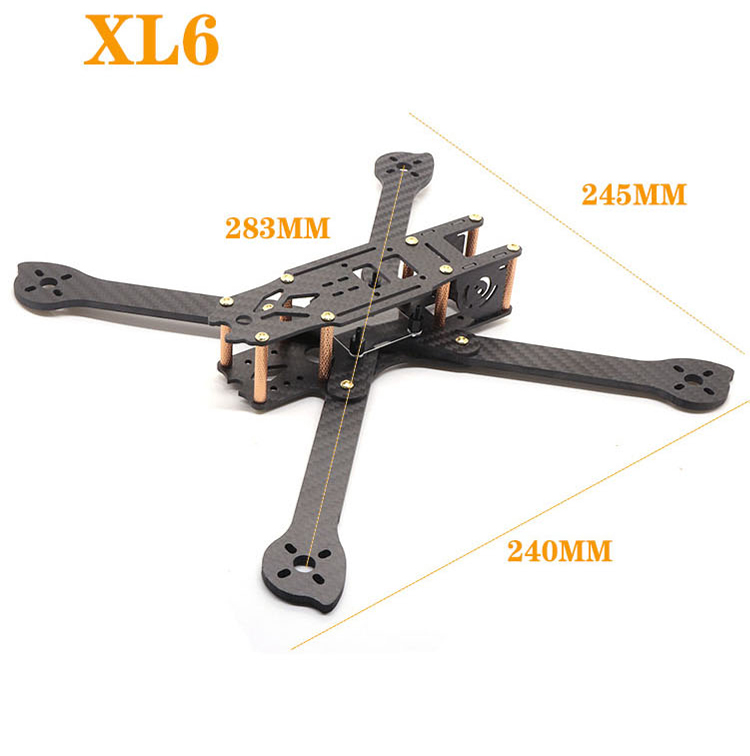

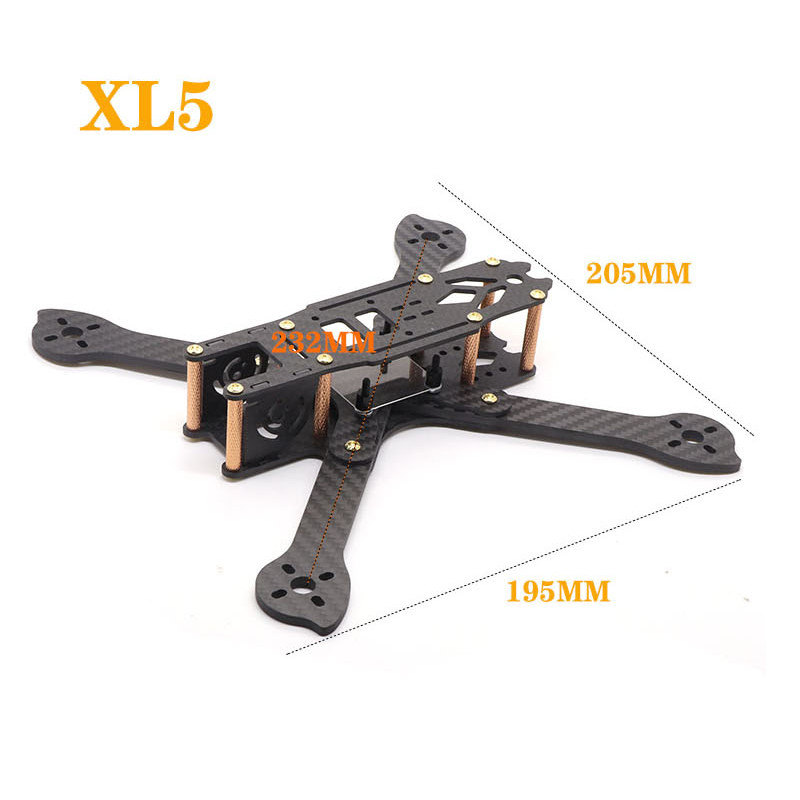

XL5 | XL6 | XL7 | XL8 | XL9 | |
Wheelbase | 232mm | 283mm | 294mm | 360mm | 390mm |
Weight | 116g | 130g | 131g | 147g | 154g |
Propeller(Recommend) | 5 Inch | 6 Inch | 7 Inch | 8 Inch | 9 Inch |
Motor (Recommend) | 2204 | 2204 | 2212 | 2212 | 2212-2306 |
ESC (Recommend) | 20A | 30A | 30A | 30A | 30-60A |
Battery (Recommend) | 1550mAh | 2200mAh | 2200mAh | 3300mAh | 3300mAh |
Package Included:
4 x Frame Arm
1 x 2mm Center board
8 x Aluminum column 30mm
5 x M3*6 screws
5 x M3*10 screws
20 x M3*6 screws
8 x M3*6+6 Nylon column
1 x Flight Controller insulation Plate
