Detailed Information
| Material | Toray T700 carbon with silky coating |
| Wheelbase | 142mm |
| Mouting hole | 20x20/25.5x25.5 M2 |
| Camera size | 14*14/19*19mm/20*20mm |
| Motor Mount | 12mm |
| System | Analog Cam/ O3 / Vista/ HDZero |
| Weight | Gross Weight 127g(Including all parts) |

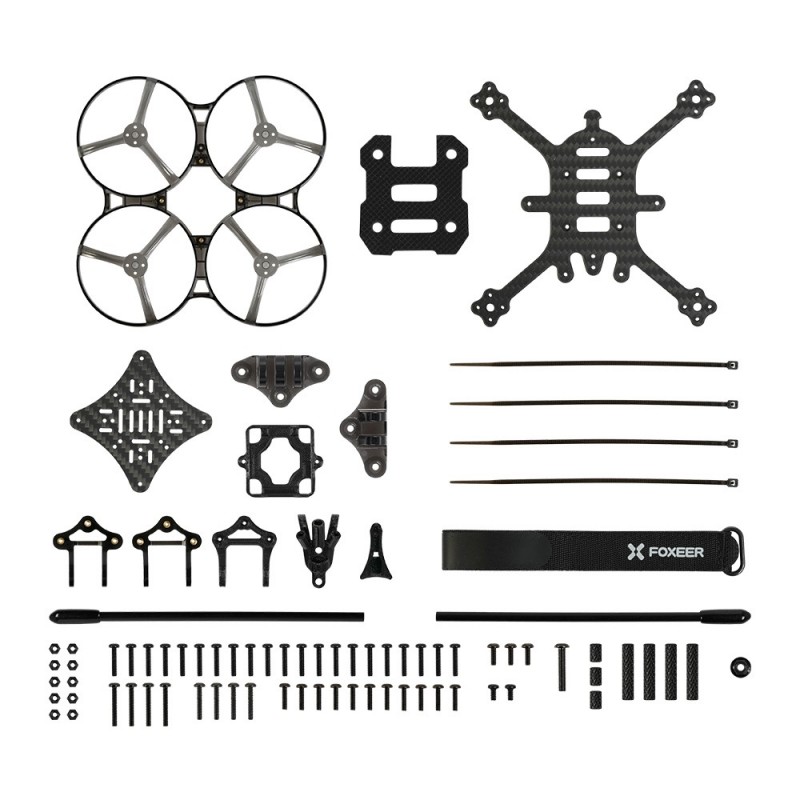

| Packing List | |
| Prop Guard - 1 | |
| Carbon Body - 1 | |
| Bottom Plate - 1 | |
| Action Cam Mount - 1 | |
| Battery Anti-slip Mat - 2 | |
| Action Cam Mount - 1 | |
| Nylon Ties - 4 | |
| 19cm Micro Cam Mount - 1 | |
| 14cm Nano Cam Mount - 1 | |
| O3 Cam TPU Mount - 1 | |
| Antenna/Receiver TPU Mount - 1 | |
| O3 Air Unit TPU Mount - 1 | |
| 15*225mm Silicon Battery Strap - 1 | |
| Receiver Antenna Protector Tube with Cap - 2 | |
| M2*19 Standoff - 4 | |
| M2*6.5 Standoff - 3 | |
| M3 Nut - 1 | |
| M2 Nut - 10 | |
| M2*12 Bottom Plate Tapping Screws - 4 | |
| M2*10 Motor Screw - 21 | |
| M2*8 Prop Screw - 8 | |
| M2*14 Screw - 4 | |
| M2*8 Screw - 11 | |
| M2*6 Screw - 3 | |
| M2*4 Screw - 2 | |
| M3*16 Screw - 1 | |
| Plastic Nuts - 10 |
