Mark 4 V2 10inch drone frame

Mark 4 V2 10inch drone frame

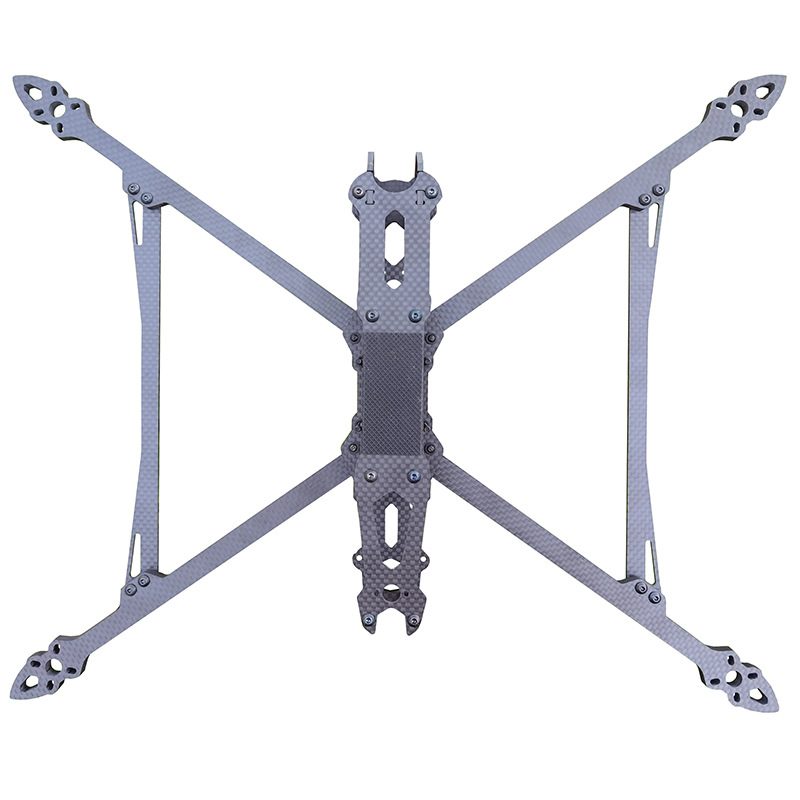

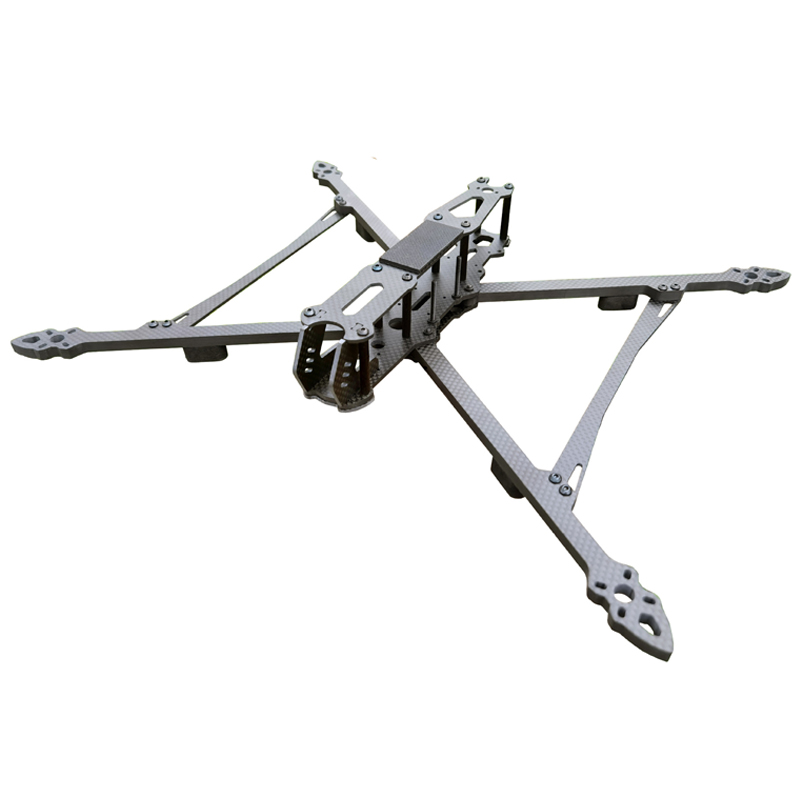

Mark4 V2 Mark 4 10inch 427mm FPV Racing Drone Quadcopter Freestyle Frame Kit

Detailed Information

Parameters:

Frame structure: X-Type

Wheelbase: 427mm

Size: 268.18mm*332.07mm

Bottom plate thickness: 3.0mm

Medium plate thickness: 3.0mm

Upper plate thickness: 2.0mm

Arm thickness: 7.5mm

Connecting plate: 2.0mm

Camera side plate thickness: 2.5mm

Camera installation hole spacing: 19mm

Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm

Flight control installation hole spacing: 20*20mm & 30.5*30.5mm

Inner space height: 35mm

Motor installation hole position: 16*16mm & 19*19mm
