Walksnail Avatar HD Goggles

Walksnail Avatar HD Goggles

WALKSNAIL AVATAR HD FPV GOGGLESFEATURES:300g Lightweight Construction1080P OLED Display46 degree FOVMSP Canvas Mode Support2-6S Direct Battery Input+2 to -6 Diopter Adjustment57-70mm IPDQuad AntennaHD

Detailed Information

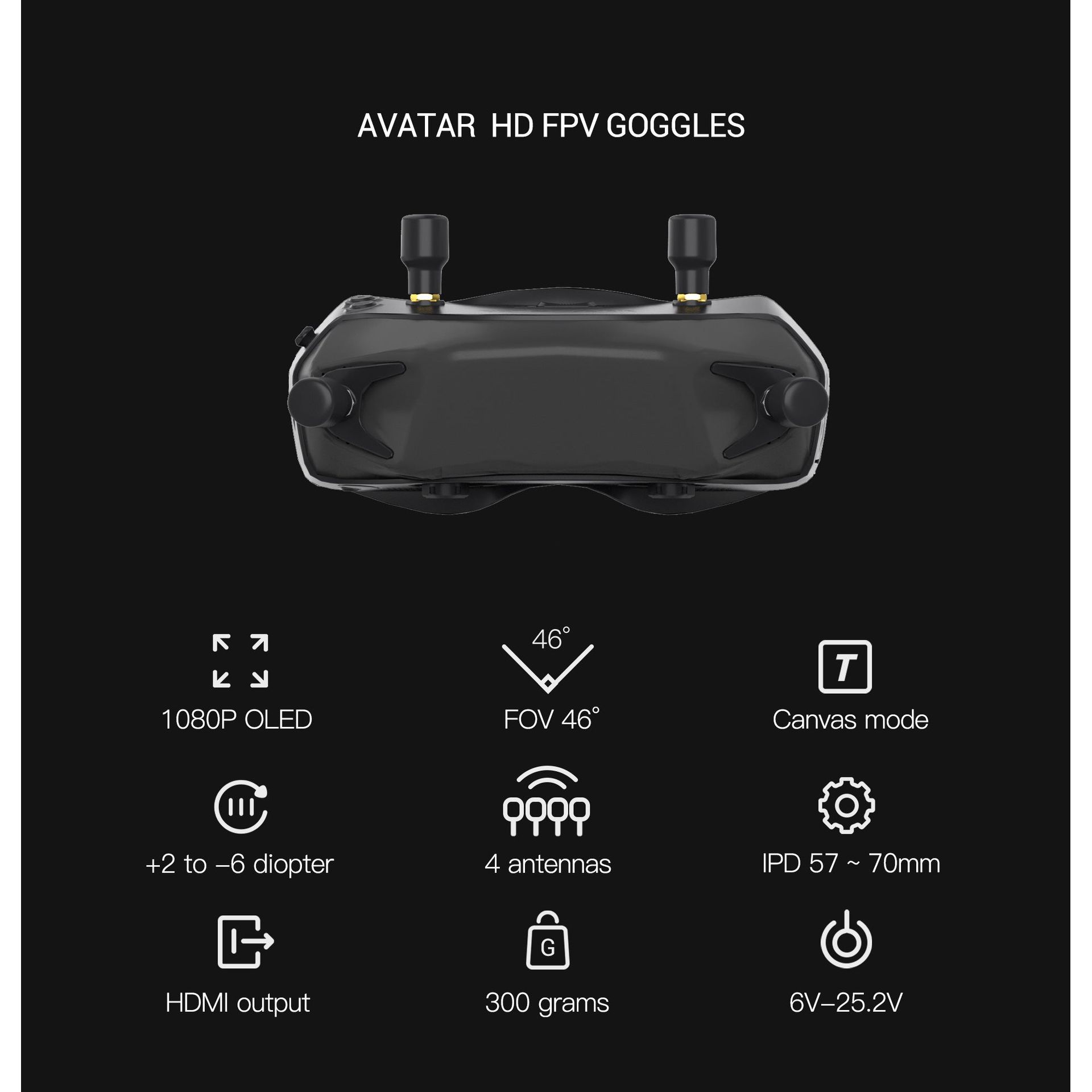

WALKSNAIL AVATAR HD FPV GOGGLES

FEATURES:
300g Lightweight Construction
1080P OLED Display
46 degree FOV
MSP Canvas Mode Support
2-6S Direct Battery Input
+2 to -6 Diopter Adjustment
57-70mm IPD
Quad Antenna
HDMI Output



HD 1080P OLED Dual Micro Displays
OLED micro display units with diopter adjustment provide improved image quality and faster response time than traditional LCD displays

Canvas Mode
Supports betaflight full OSD display, parameters can be easily adjusted by RC input.

Compact, Lightweight Construction
The Avatar goggle is designed as lightweight mini size and 46 degrees field of view, allowing pilots who wear it more comfortably while giving them a more immersive FPV experience.

Focus/IPD Adjustments
The goggles can be adjusted to suit your needs without the need to install corrective lens.

HDMI Output
HDMI Output capability via USB Type-C, pilot's view can be seen by spectators with external displays.

Tanging mode
Displays the approximate distance between the air unit and goggles in case of lost drone.

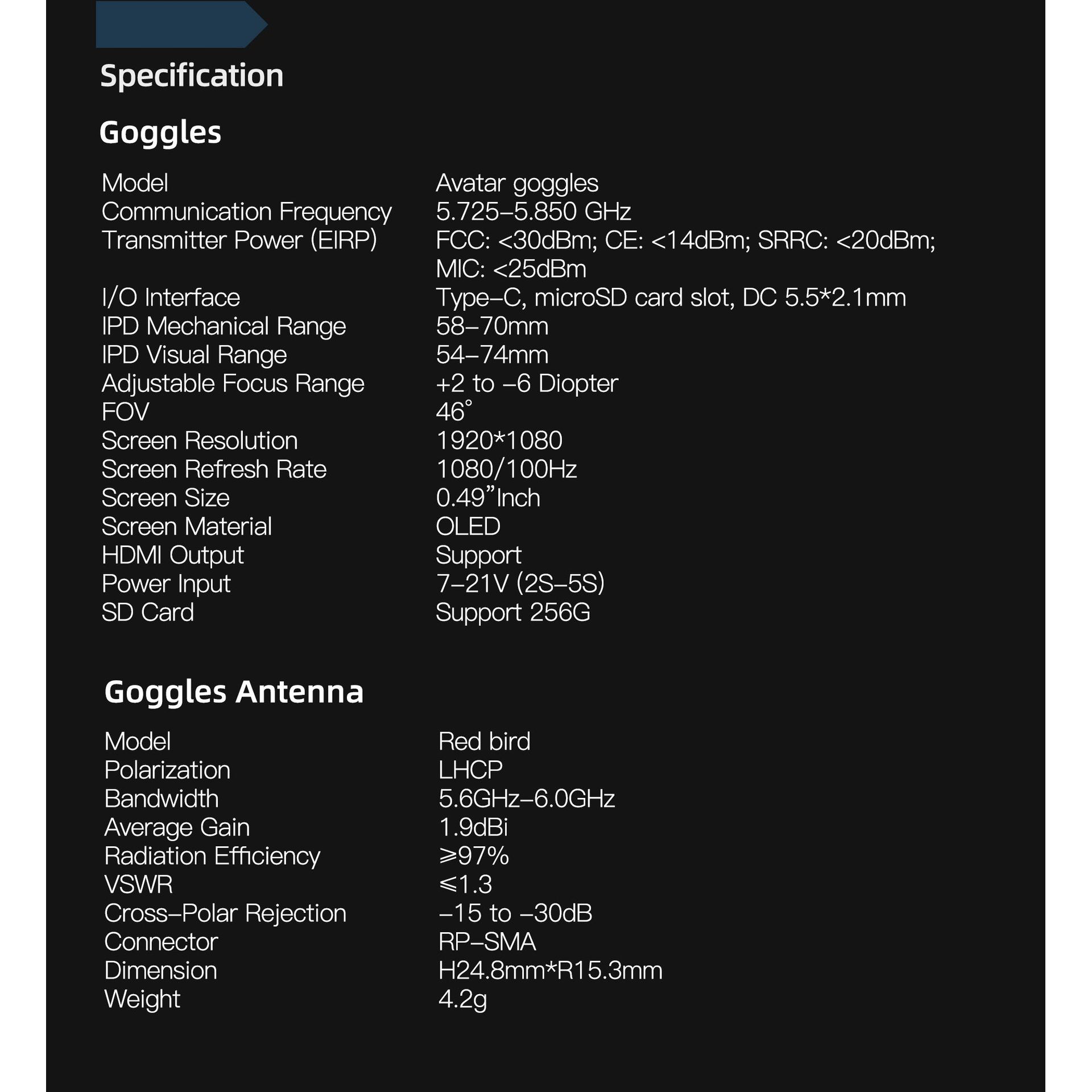

SPECIFICATIONS:


Goggles

Model: Avatar Goggles
Frequency: 5.725-5.850 GHz
Power (EIRP): FCC <30dBm CE <14dBm SRRC <20dBm MIC <25dBm
I/O Interface: Type-C, Micro SD, DC 5.5x2.1mm
IPD Mechanical Range: 58-70mm
IPD Visual Range: 54-74mm
Diopter Adjustment: +2 to -6
FOV: 46 Degrees
Screen Resolution: 1920x1080
Screen Refresh Rate: 1080/100Hz
Screen Size: 0.49"
Screen Type: OLED
HDMI Output Support: Yes
Power Input: 7-25.2V DC
SD Card Support: Up to 256GB


Antenna

Model: Red Bird
Polarization: LHCP
Bandwidth: 5.6-6.0 GHz
Average Gain: 1.9dBi
Radiation Efficiency: >=97%
VSWR: <=1.3
Cross-Polar Rejection: -15 to -30dB
Connector: RP-SMA
Dimensions: H24.8xR15.3mm
Weight: 4.2g
