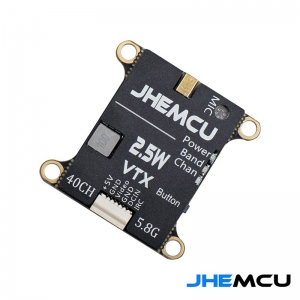

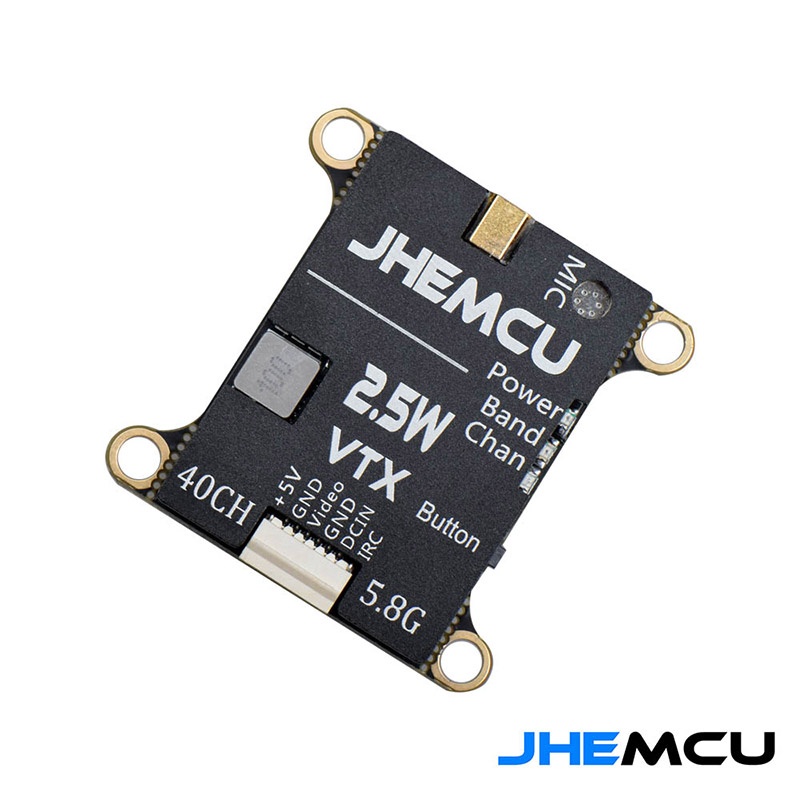

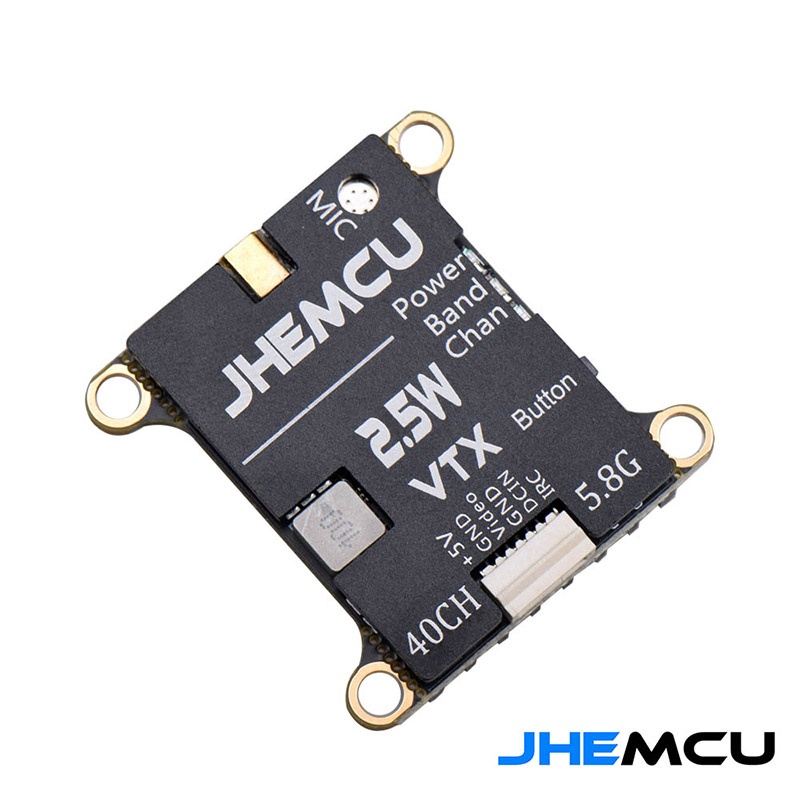

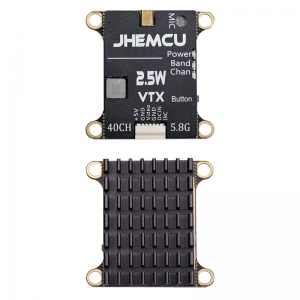

JHEMCU VTX2W5 5.8GHZ 2.5W image transmission

The image transmission has a built-in temperature detection module, which will automatically reduce the output power if the temperature is too high for a long time in the 2.5W gear,When the temperatur

Detailed Information

The image transmission has a built-in temperature detection module, which will automatically reduce the output power if the temperature is too high for a long time in the 2.5W gear,

When the temperature drops, it will increase to the maximum power output.

The maximum power is maintained at a static surface temperature of around 115-120 degrees Celsius when powered on for a long time.

Power supply 7-26V (2-6S)

Current: 16V power supply, 2.5W output current 650MA

Frequency range: 5645-5945MHz (5.645-5.945GHz)

Hole spacing 30.5 * 30.5MM, diameter M3

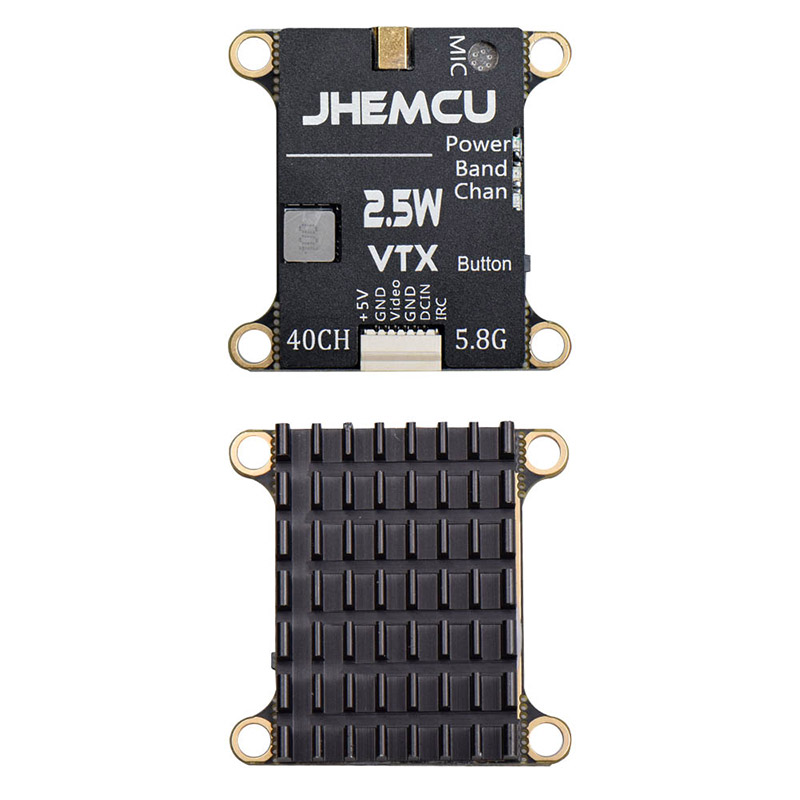

External dimensions 36 * 36 * 9.5MM

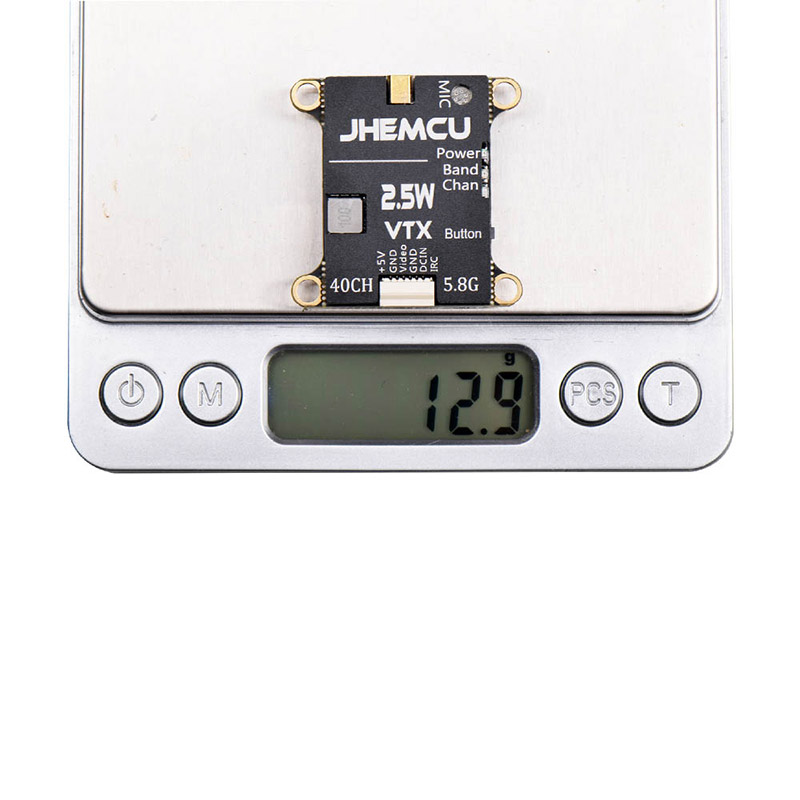

Weight: 12.9 grams

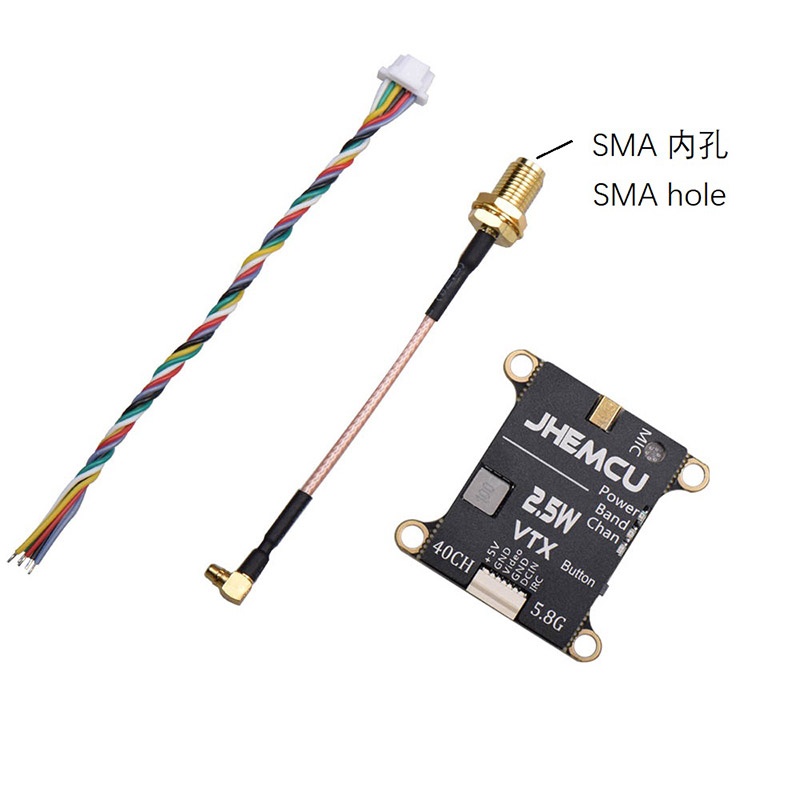

Packaging List:

VTX2W5 image transmission * 1

MMCX-SMA cable (inner hole) * 1

6P * 1.0MM plug cable (buckle) * 1
