iFlight Chimera CX10 ECO

• Product Name: Chimera CX10 ECO Analog 10 inch

• FC: BLITZ ATF435 Flight Controller

• ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC

• Video Transmission: BLITZ Whoop 1.2G 1.6W VTX/BLITZ Whoop 1.6W VTX/ BLITZ Whoop 2.5W VTX

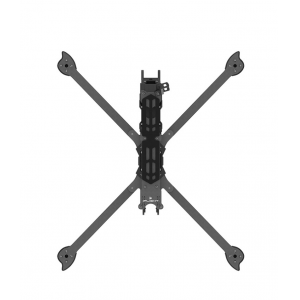

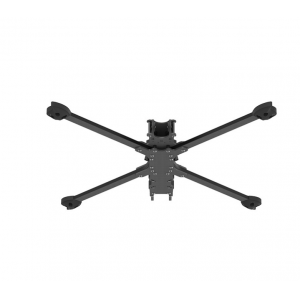

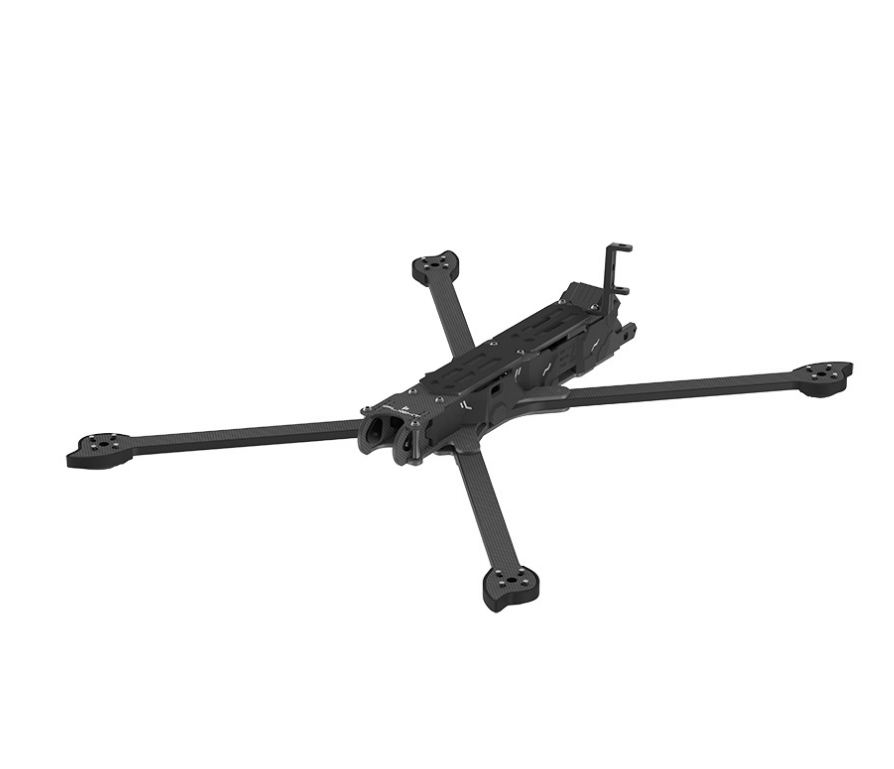

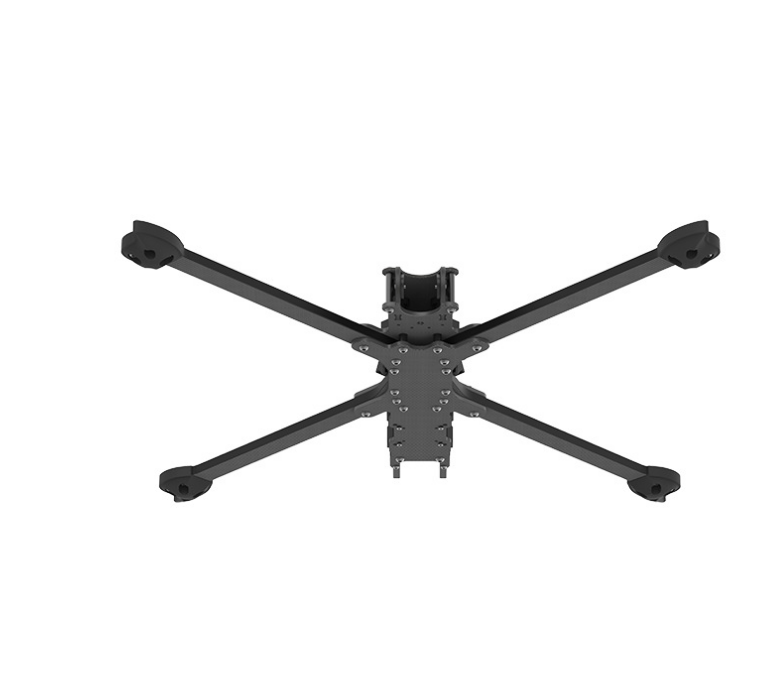

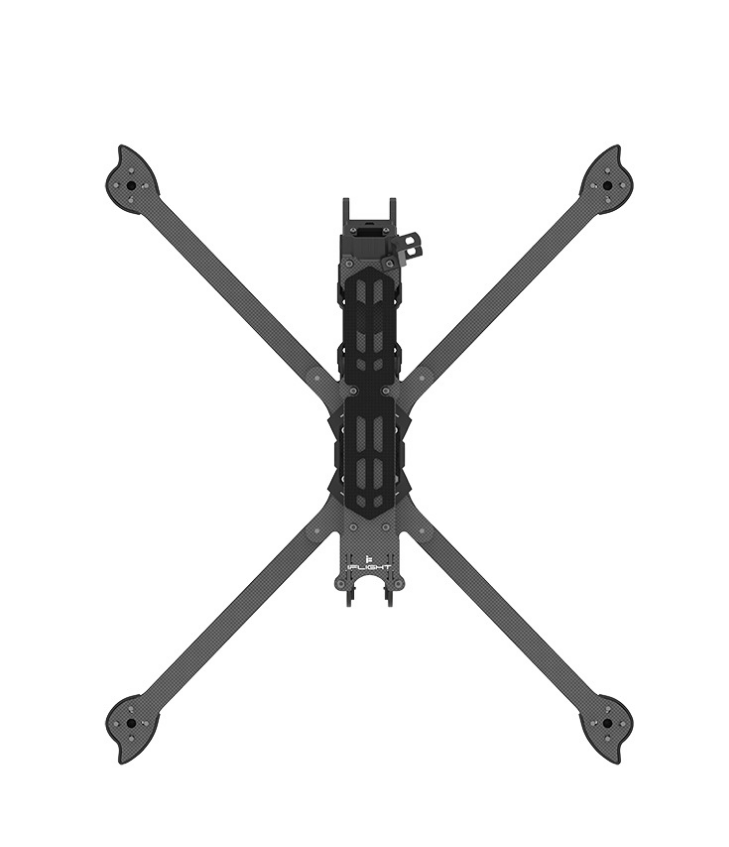

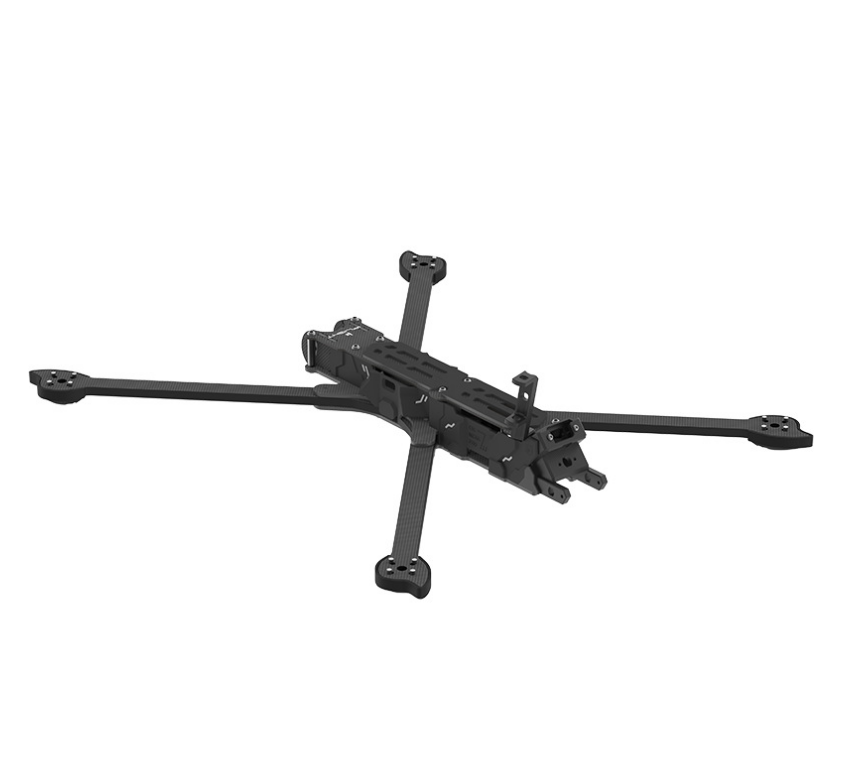

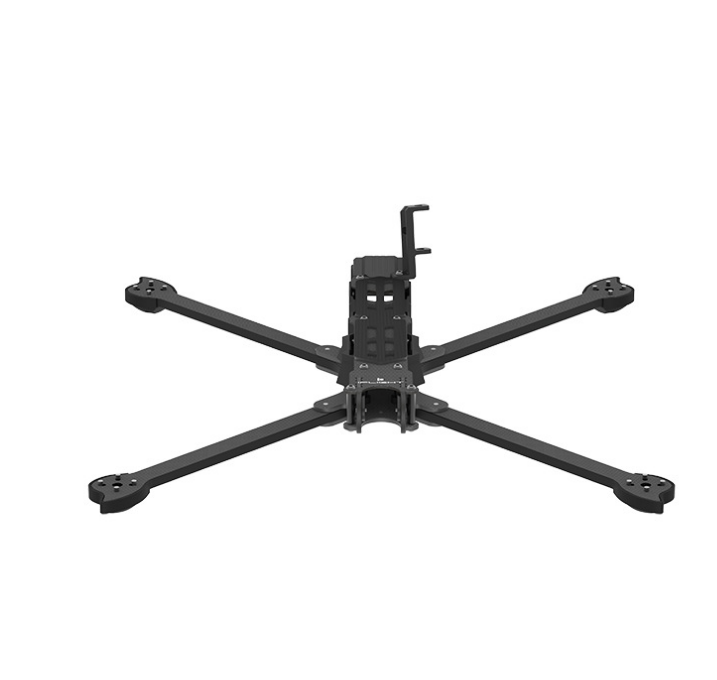

• Frame: 452mm wheelbase

• Motor: XING-E 3110 900KV motors

• Prop: 10X4.5X3 propellers

• Weight: 860g (Without Battery)

• Dimensions (L×W×H)：338x299x34mm

• Payload: 1.5-2.5kg

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Antennas: Single Antenna

• GNSS: No

Video Transmission

BLITZ Whoop 5.8G 1.6W VTX

• Product Name: BLITZ Whoop 5.8G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 12V

• Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: IPEX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 16.5g (Antenna not included)

• Dimensions: 37mm*31.5mm*10mm

Packing List

• 1 x Chimera CX10 ECO 6S Analog BNF

• 1 x Battery pad

• 1 x Antenna

• 2 x Propellers(Pair)

• 2 x Battery strap
