Detailed Information
Specifications

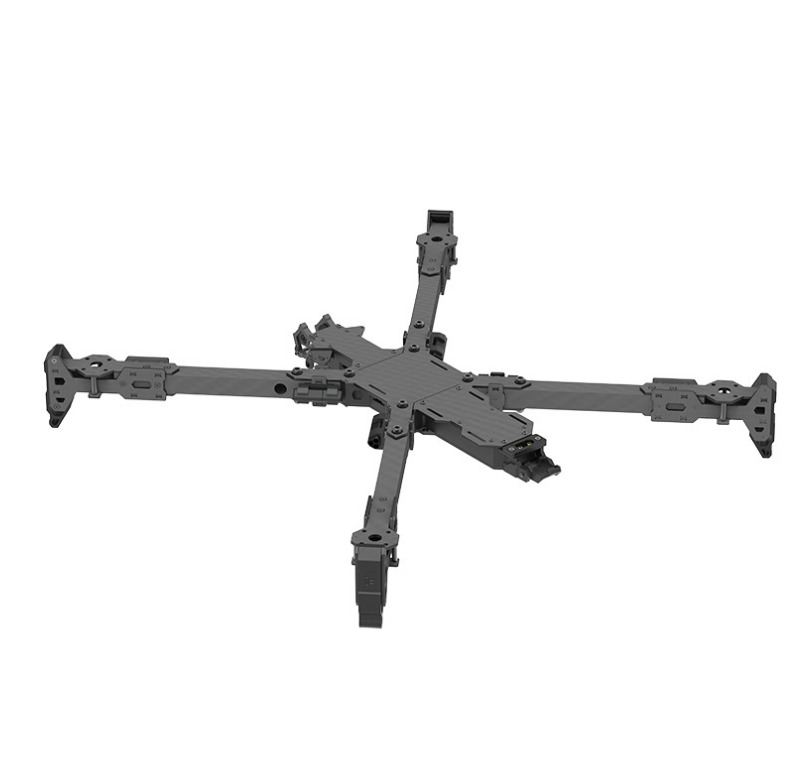

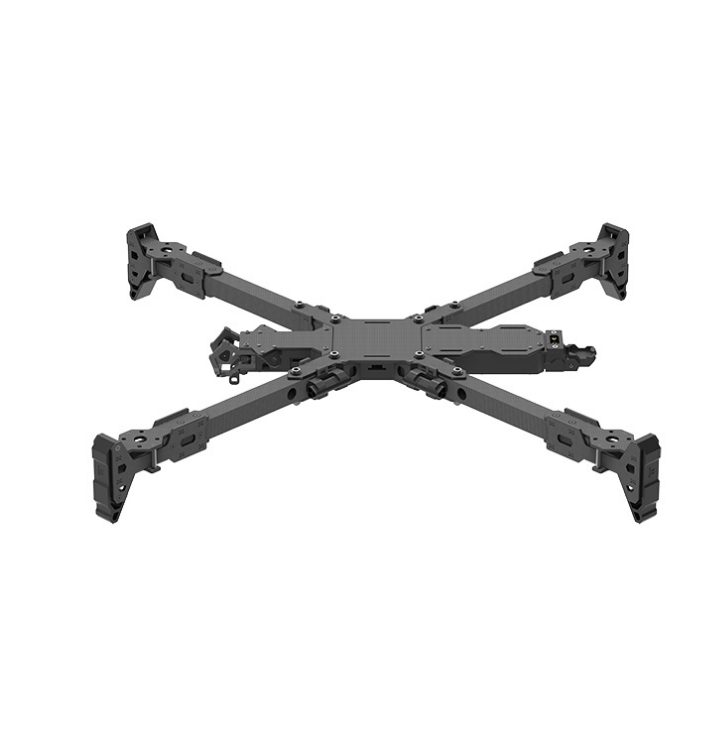

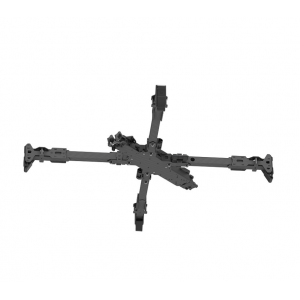

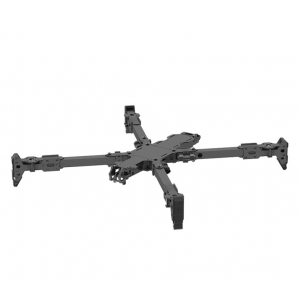

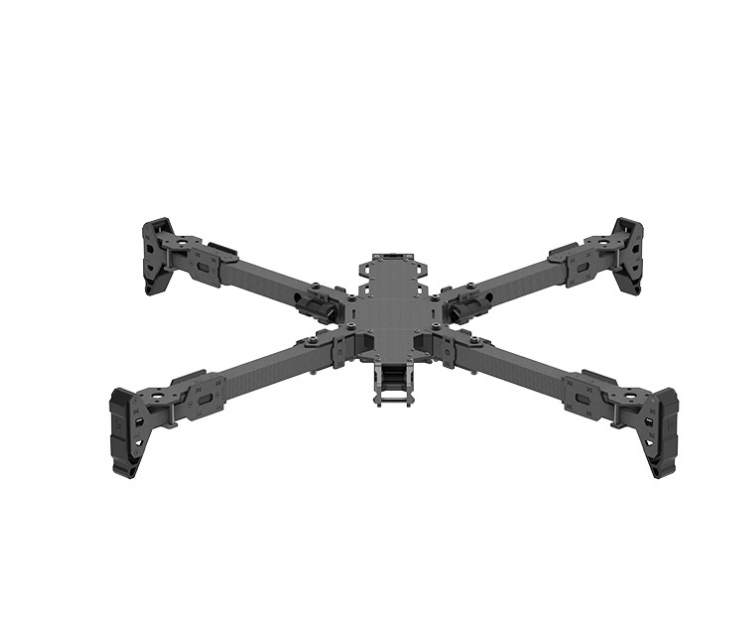

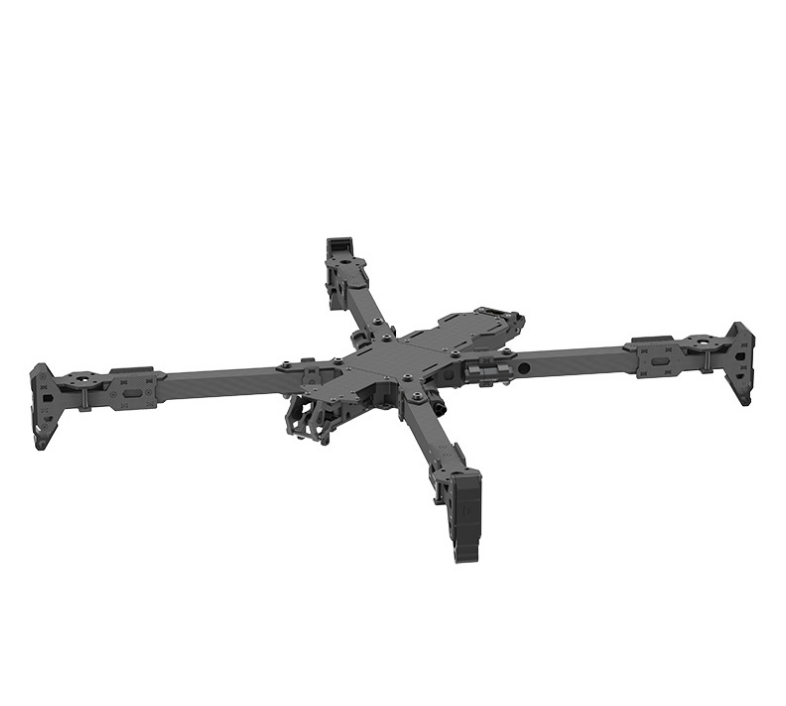

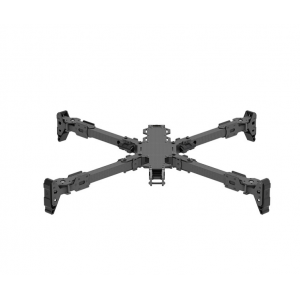

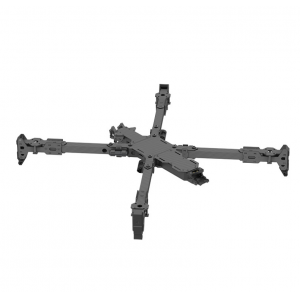

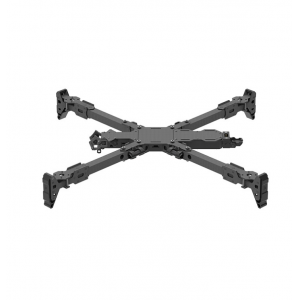

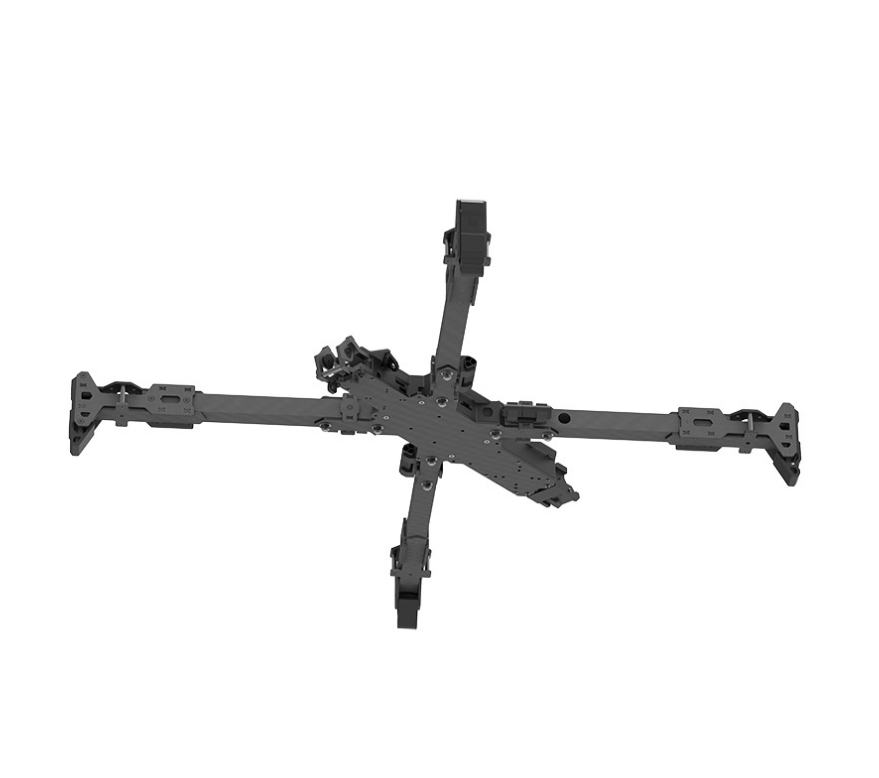

Product Name: X413 Frame Kit
Frame wheelbase: 599mm
Frame Dimension: L425*W425*H26 mm
Arm Thickness: Carbon tube 20*20 mm
Top Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Max Flight Stack Height: 20mm
Max VTX Height: 20mm
Flight Stack Mounting: 35*35 Φ3mm
VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm / 30.5*30.5 Φ3mm
Motor Mounting: 30x30mm Φ4mm
Weight: 850grams
Compatible: HD O3 Air Unit/ BLITZ Whoop 5.8G 2.5W/ BLITZ Whoop 1.2G 1.6W
Packing List
1 x X413 Frame Kit
4 x Amass MT plug
1 x TPU Parts
1 x Anti-slip Battery Pad
3 x Battery Strap
1 x Screw Bag
