Mark4 HD DJI 5inch FPV Carbon Fiber

Part No.: MAK4-KIT

Features

Mak4 fancy rack, lighter, better performance and more convenient to install.

The H-shaped structure does not affect the flight experience at all. On the contrary, the arm is shorter and lighter than the X-shaped structure. At the same time, the strength of the arm is higher.

The cabin also reserves 30.5*30.5 and 20*20 hole control positions for flight control. It is suitable for installation of various flight control equipment.

The corners of the whole machine have been chamfered and polished. The workmanship is fine and the structure is reasonable.

Product Details

Wheelbase:240mm

Size: 145 x 172mm

Weight: 120g

Arm thickness: 5MM

Upper center board: 2.5MM

Lower center plate: 2.5MM

Camera installation spacing: 19mm

Photo transmission installation hole spacing: compatible with 30.5mm/20m

Flight control installation hole spacing: compatible with 30.5mm/20mm

Recommended configuration( Not included)

Flight control: RF / kiss / F3 / F4 / F7

Motor: 2204 / 05 / 06 / 07 / 2305 / 2306 / 2307

Electric regulation: 20-50a

Battery: 3-6S 1500-2200mah

Propeller: 5 inches

Item Packing

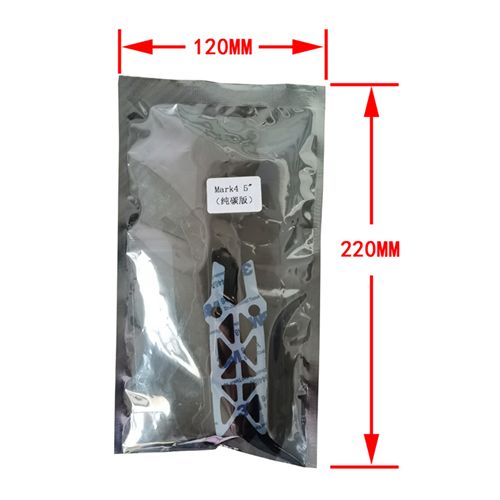

MAK4 5inch FPV Carbon Fiber Frame x1set

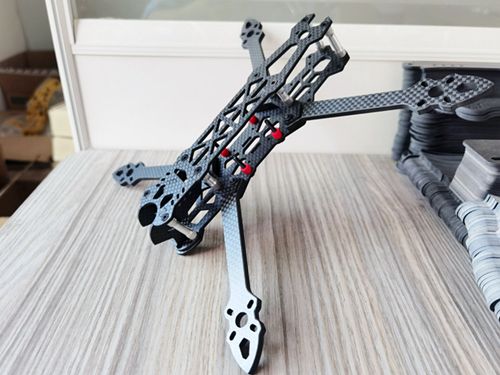

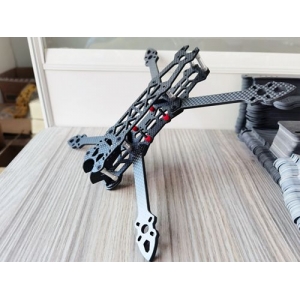

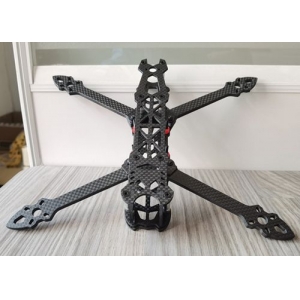

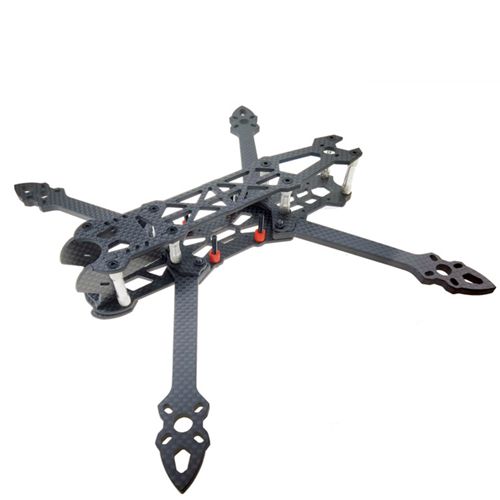

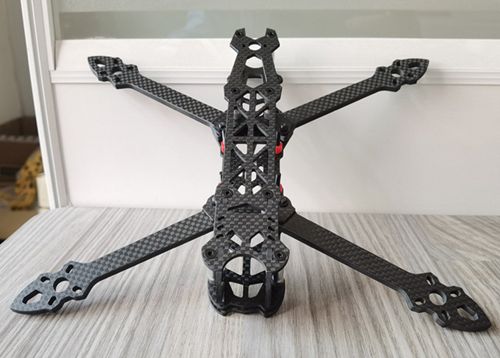

Detailed Images
