SUNNYSKY X4130-III 520KV

Part No.: X4130-520KV

Features

1. Waterproof and dustproof, suitable for all-weather racing.

2. Especially suitable for remote control cars with excellent starting, acceleration and linear functions.

3. Compatible with sensorless and brushless motors, with strong DC capability and excellent heat dissipation.

Product Details

Motor model / KV value: X4130-Ⅲ/ KV520

Number of slot poles: 12N14P

Phase to phase internal resistance: 12.9m Ω

Motor size: φ 49.7*80.0mm

Shaft diameter : 6.0mm

Motor silicone wire specification: 20AWG 110mm

Motor weight (including wire): 399g

Rated working voltage (lipo): 6S

No load current: 2.5A/10V

Maximum continuous power: 3000W

Maximum continuous current: 120A / 30S

Recommended electric regulator: 120A

Recommended propeller specification: 6S(EOLO15*8/16*8)

Item Packing

X4130-III 520KV Brushless Motor x 1

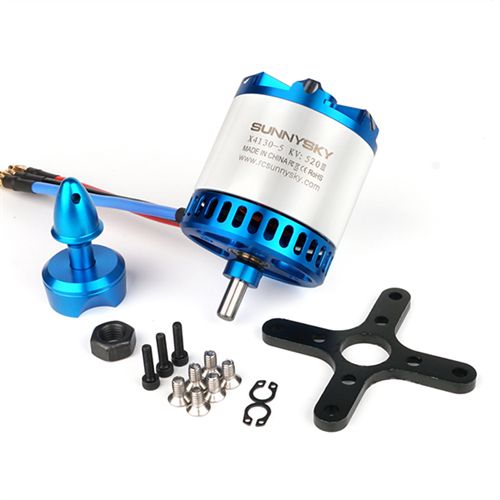

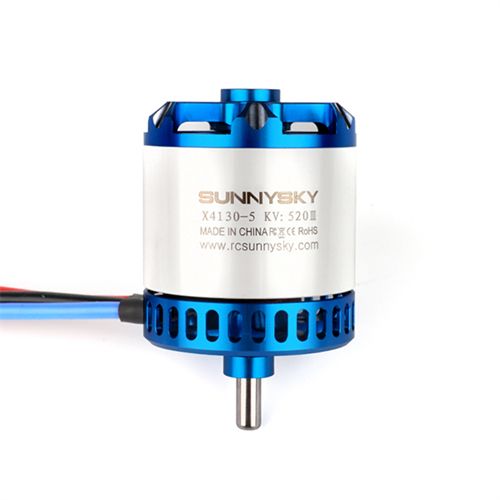

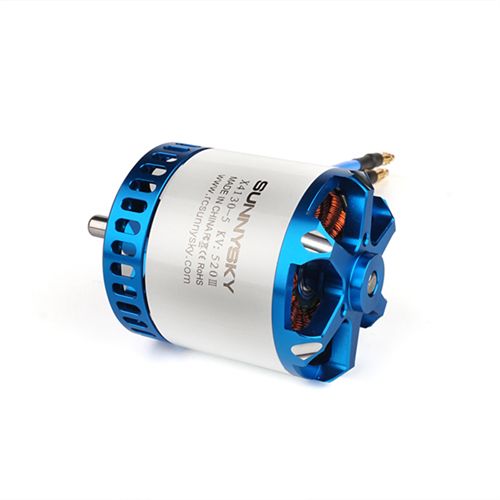

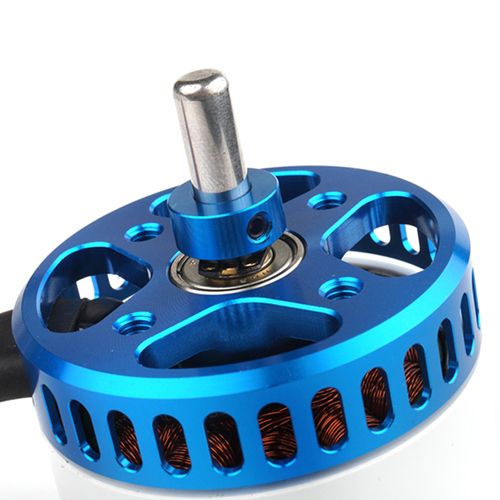

Detailed Images
