Detailed Information

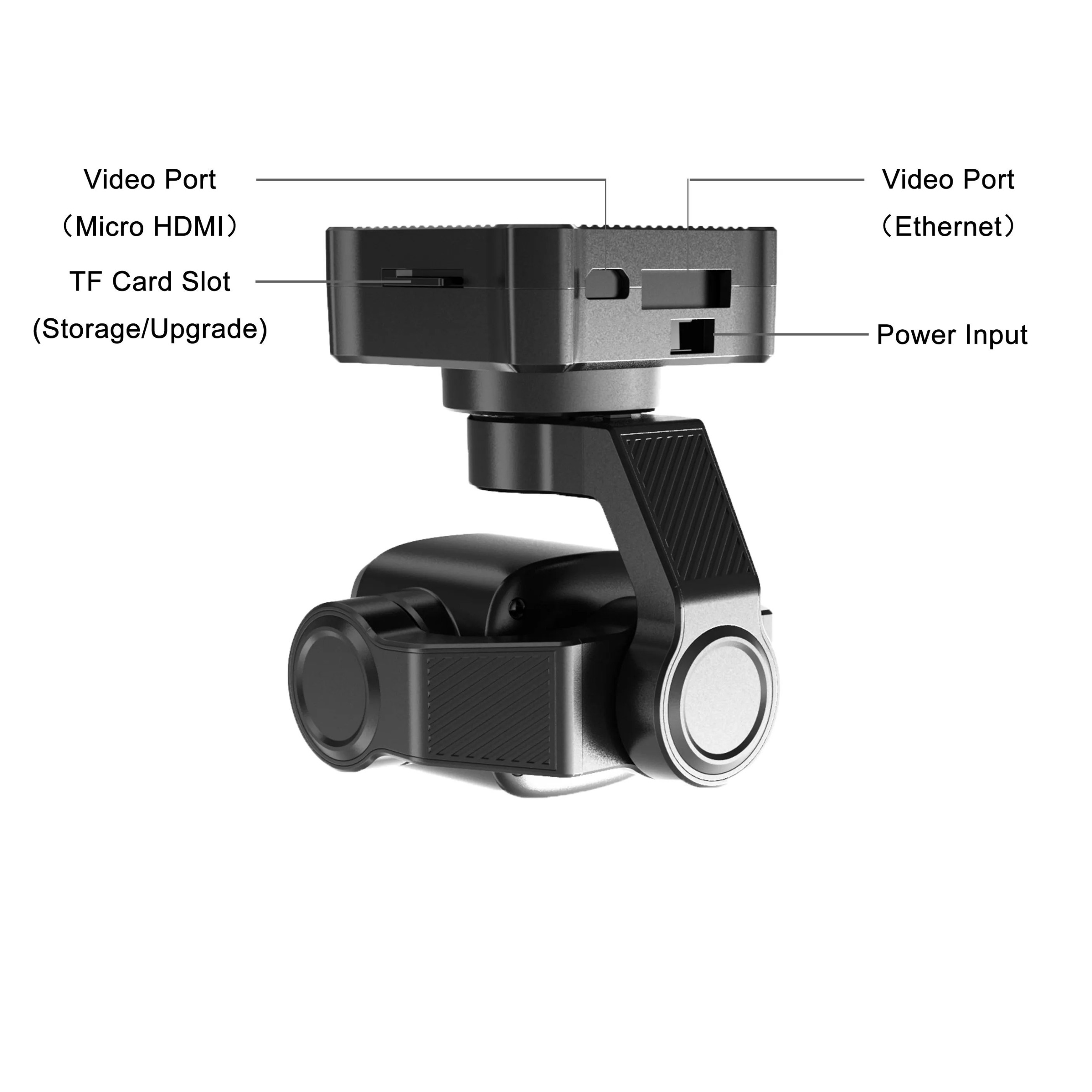

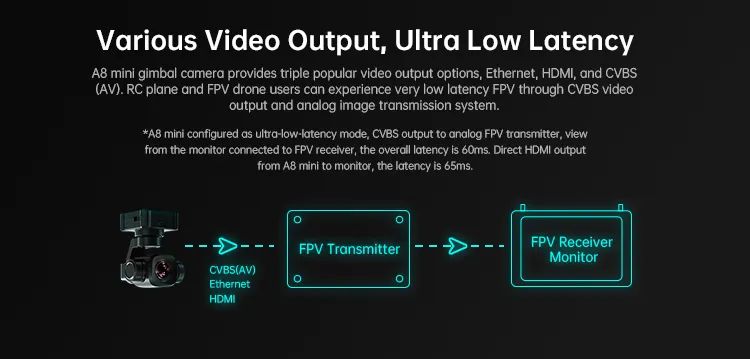

| Video Output Port | Ethernet |
| Micro-HDMI | |
| CVBS(AV) | |

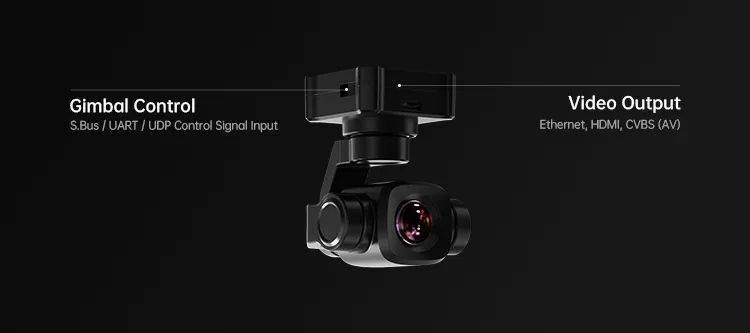

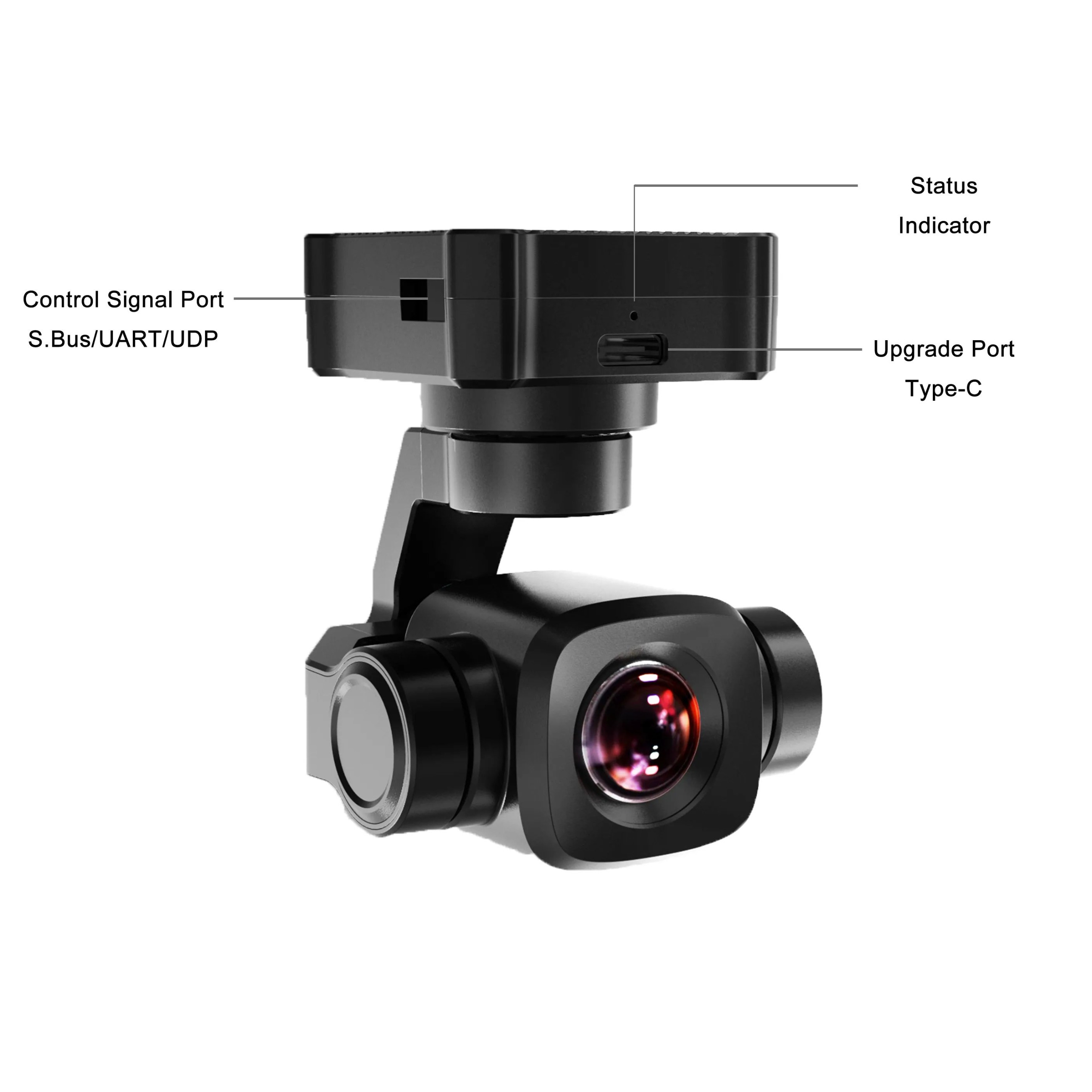

| Control Signal Input Port | S.Bus,UART |
| Ethernet UDP | |
| Control Signal Output Port | S.Bus |

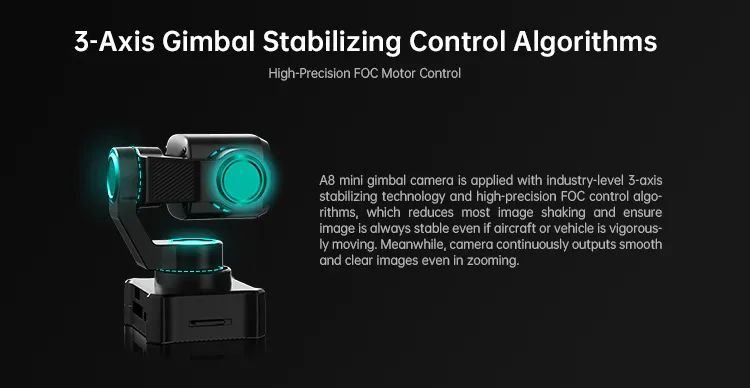

| High-Accuracy 3-Axis Stabilization | Yaw, Pitch, Roll |
| Working Voltage | 11~25.2V |
| (Early manufacturing lots before June, 2023 were 11 ~ 16.5 V, please carefully confirm if you need 25.2 V input) | |
| Power Consumption | Average: 5W |
| Summit:12W | |
| Working Temperature | -10°~50℃ |
| Dimension | 55*55*70 mm |
| Weight | 95g |
| Gimbal | |
| Angular Vibration Range | ±0.01° |
| Controllable Pitch Angle | -135°~+45° |
| Controllable Yaw Angle | -160°~+160° |
| Roll Angle | -30°~+30° |
| Camera | |
| Lens | Fixed Focal Length |
| 6X Digital Zoom | |
| Equivalent Focal Length | 21 mm |
| Image Sensor | Sony 1/1.7-inch, 8 MP effective resolution |
| Aperture | F2.8 |
| FOV | Diagonal: 93°,Horizontal: 81° |
| Video Recording Resolution | 4K (4096 x 2160) @25 fps |
| 2K (2560 x 1440) @ 30 fps | |
| 1080p (1920x 1080) @30 fps | |
| 720p(1280 x 720) @ 30 fps | |
| Video Storage Bitrate(H265 Codec) | 4K/2K: 20 Mbps |
| 1080p/720p: 15 Mbps | |
| File Storage Format | FAT32 |
| ExFAT | |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, max 512 GB |
| Still Photography Mode | Single |
| White Balance | Auto |
