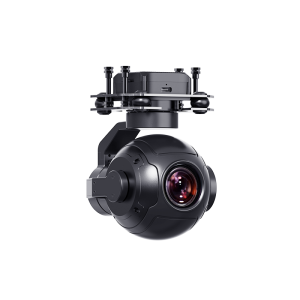

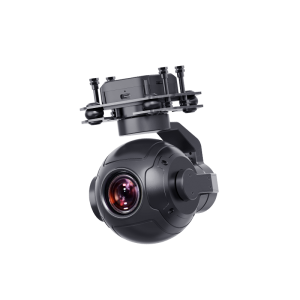

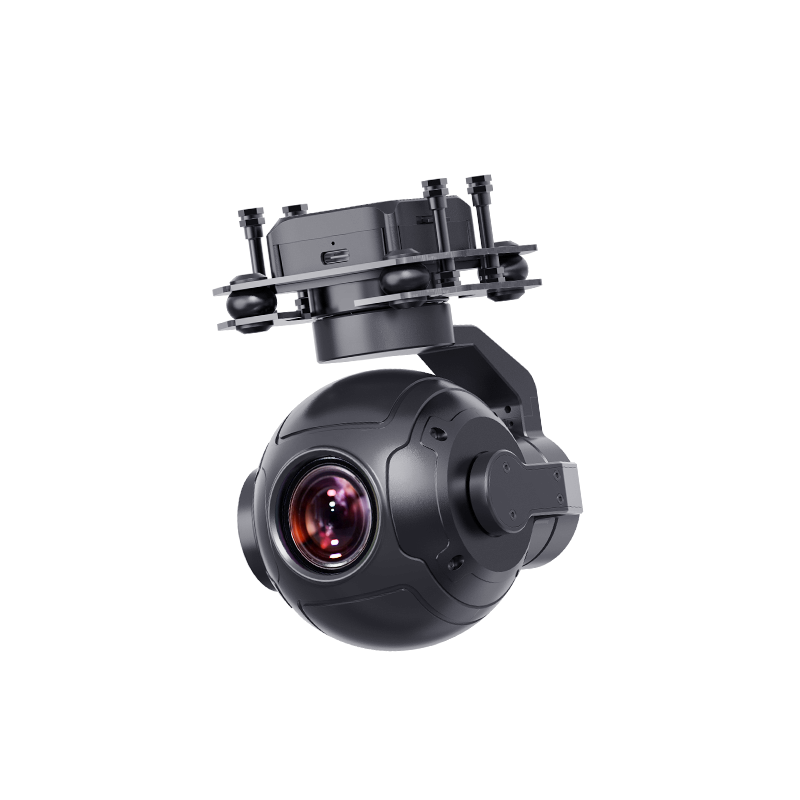

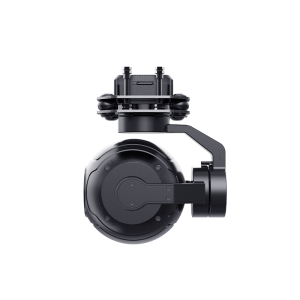

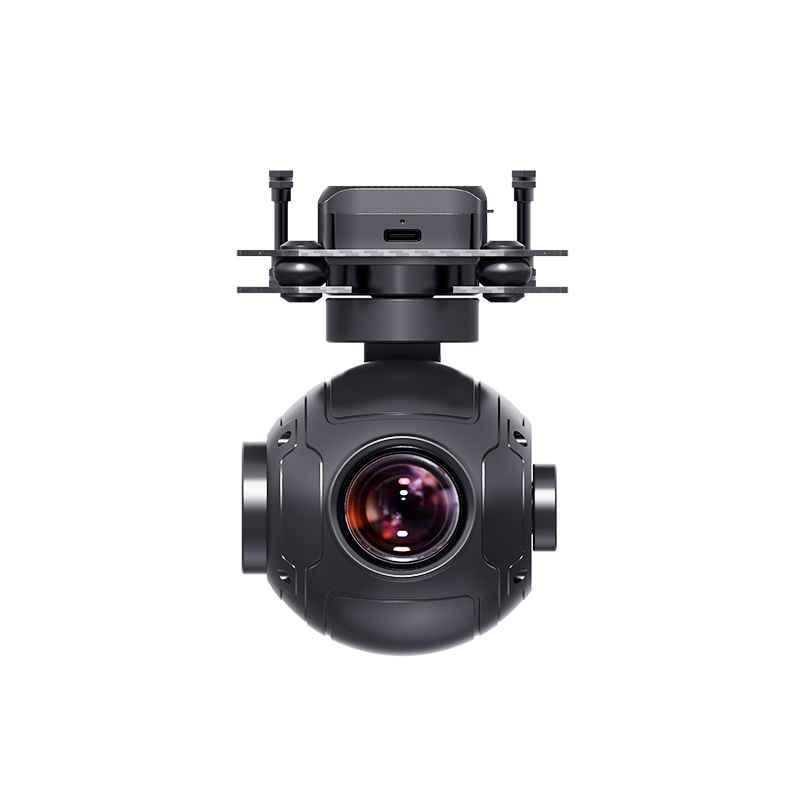

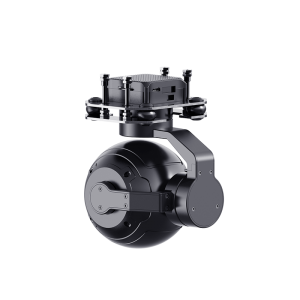

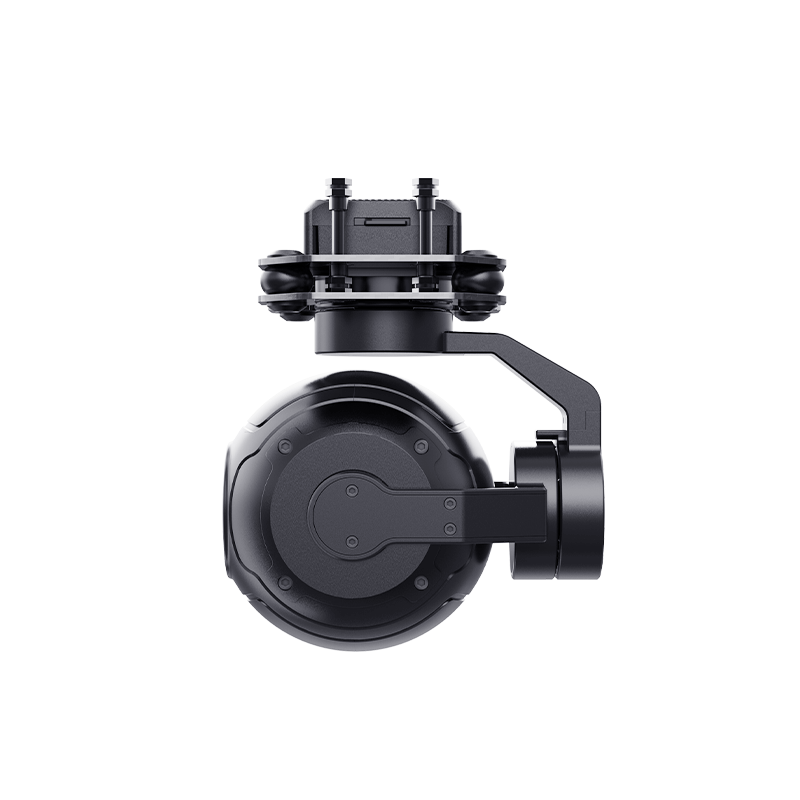

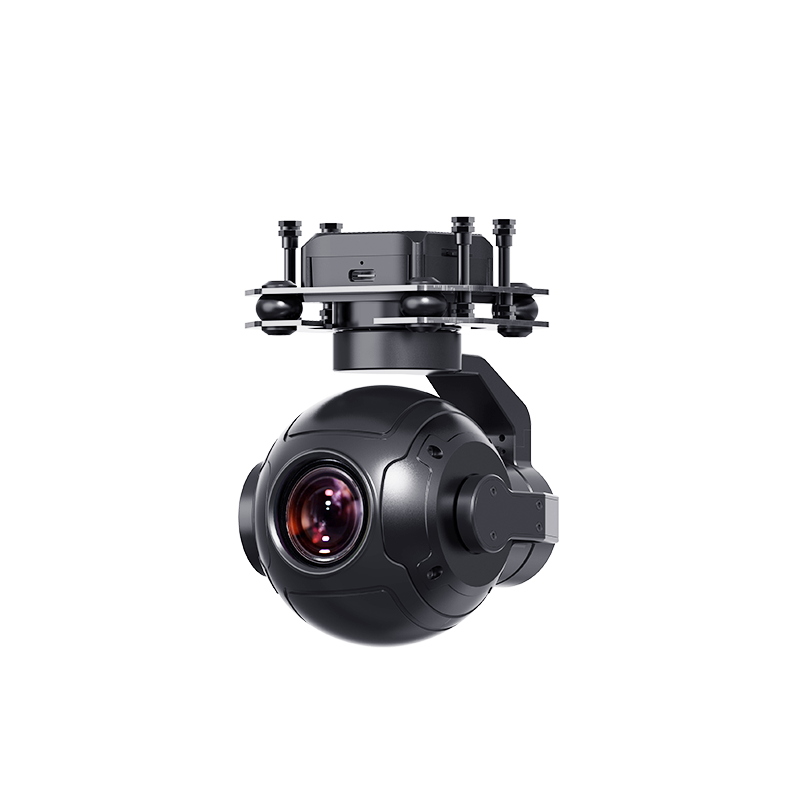

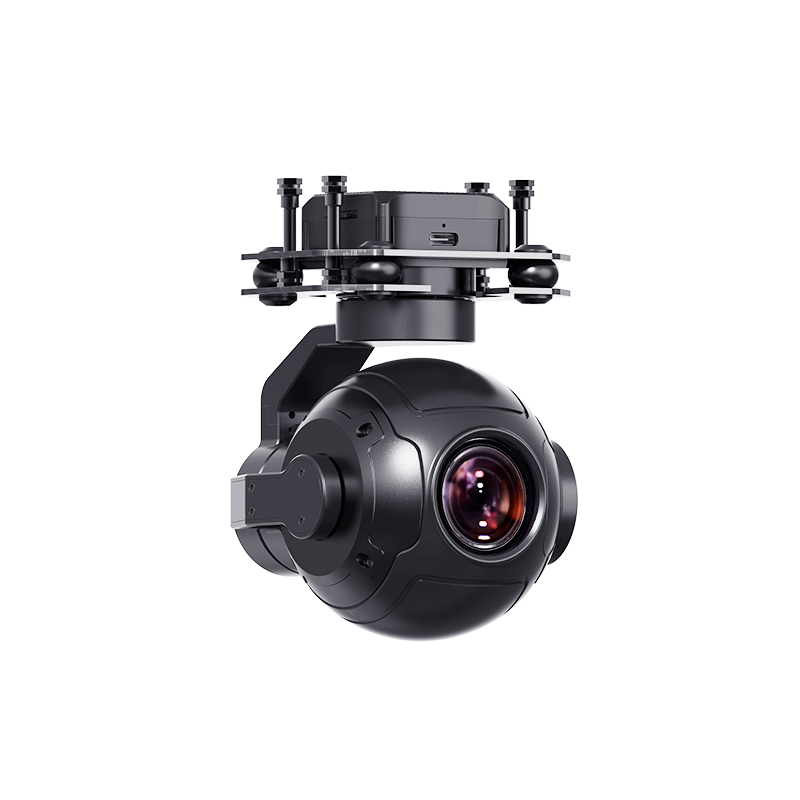

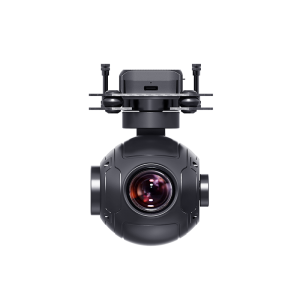

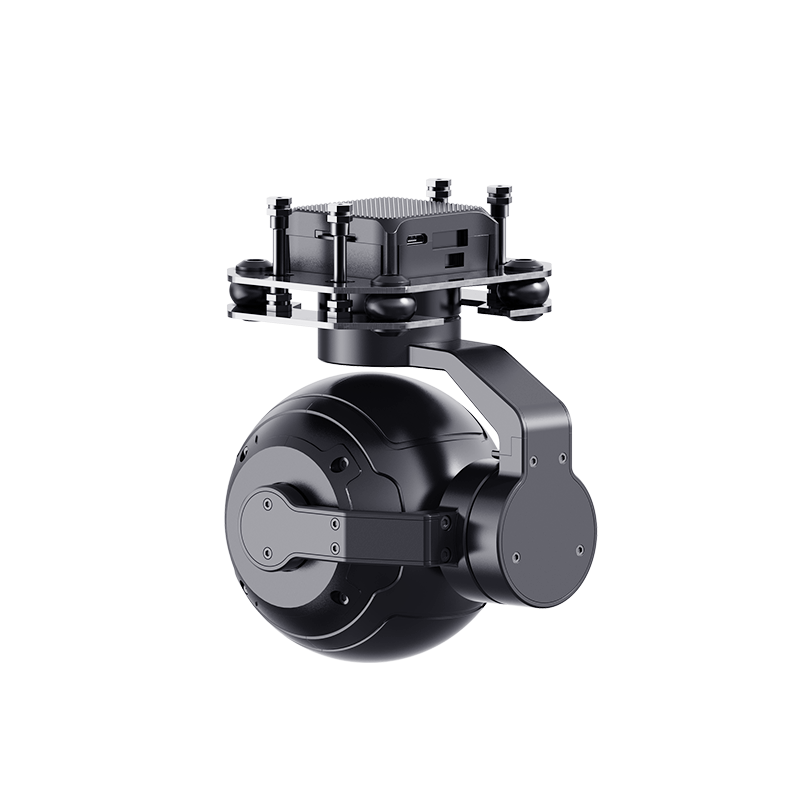

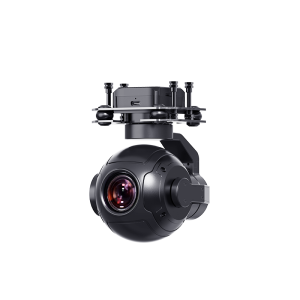

ZR10 Optical Pod

SpecsOverallVideo Output PortEthernetControl Signal Input PortS.Bus, UART, UDPHigh-Accuracy 3-Axis StabilizationYaw, Pitch, RollWorking Voltage11 ~ 25.2 V(Early manufacturing lots before June, 2023 we

Detailed Information

Specs
Overall

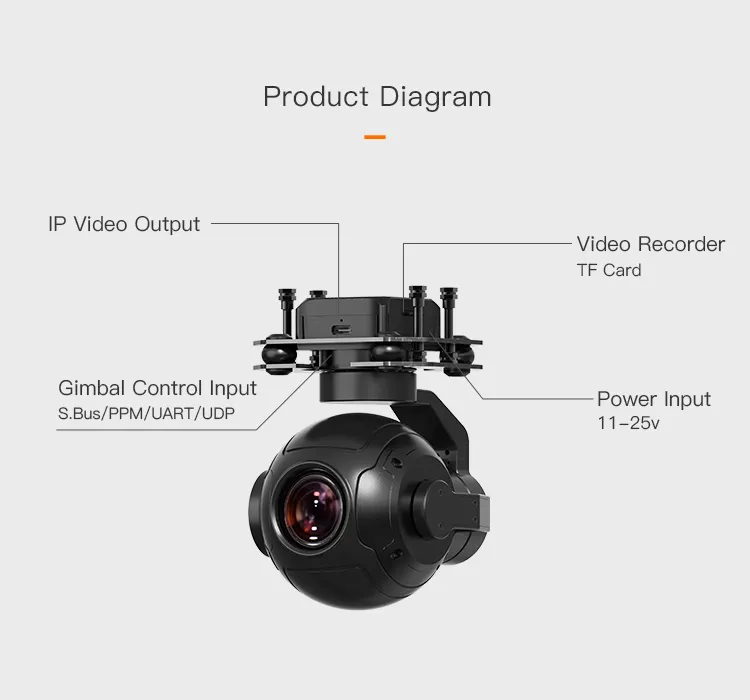

Video Output Port

Ethernet

Control Signal Input Port

S.Bus, UART, UDP

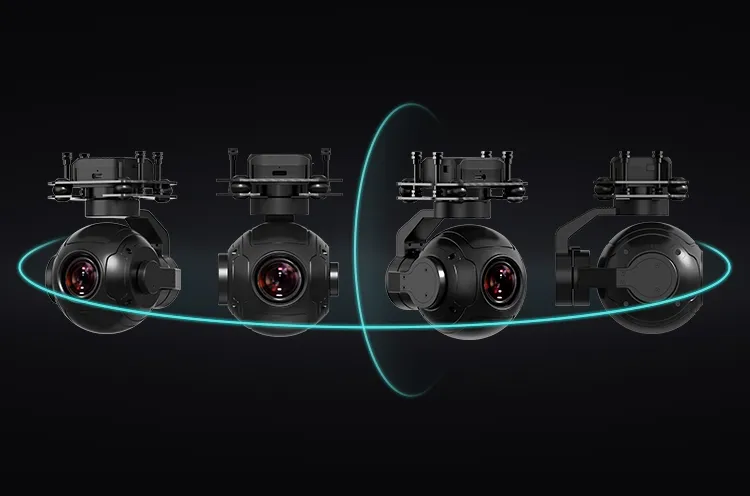

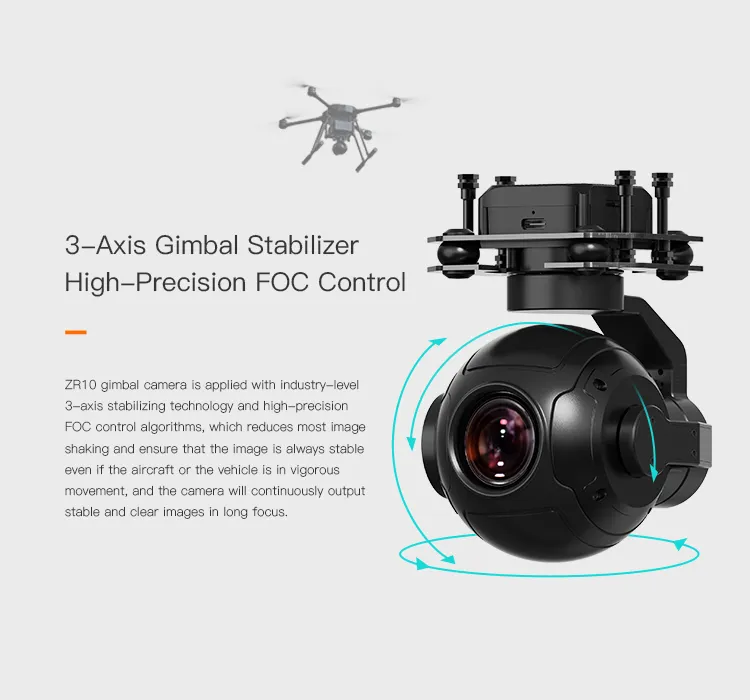

High-Accuracy 3-Axis Stabilization

Yaw, Pitch, Roll

Working Voltage

11 ~ 25.2 V

(Early manufacturing lots before June, 2023 were 11 ~ 16.5 V, please carefully confirm if you need 25.2 V input)

Power Consumption

Average: 4 W

Summit: 12 W

Working Temperature

-10 ~ 50℃

Dimension

121*101*78 mm

Weight

381 g

Gimbal
Angular Vibration Range

± 0.01°

Controllable Pitch Angle

-135° ~ +45°

Controllable Yaw Angle

-160° ~ +160°

Roll Angle

-30° ~ +30°

Camera
Lens

10X Optical Zoom (30X Hybrid Zoom)

Focal Length

5.2 ~ 47.4 mm (±5%)

Image Sensor

1/2.7 Inch, 4 MP effective resoultion

Aperture

F1.8 ~ 2.5

FOV

Without Zoom: Diagonal 79.5°, Horizontal 71.5°

10X Optical Zoom: Diagonal 7.7°, Horizontal 6.7°

Video Recording Resolution

2K (2560 x 1440) @ 30 fps

1080p (1920 x 1080) @ 30 fps

720p (1280 x 720) @ 30 fps

Video Storage Bitrate

15 Mbps (H.265 codec)

File Storage Format

FAT32

Image Format

JPG

Video Format

MP4

Supported MicroSD Cards

MicroSD Class10, Max 128GB

Still Photography Mode

Single

Metering Mode

Evaluative metering

White Balance

Auto
