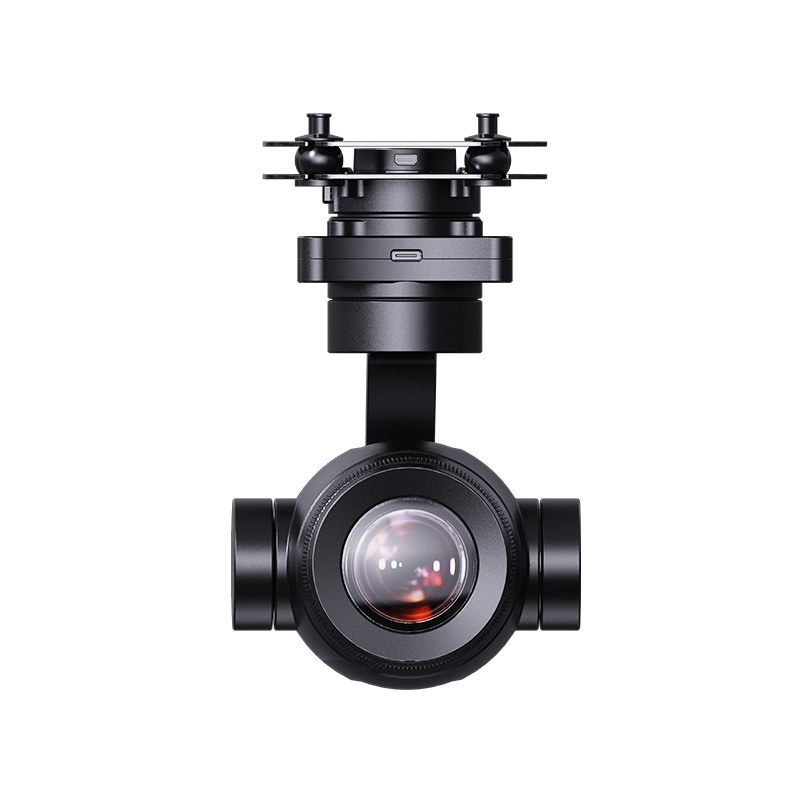

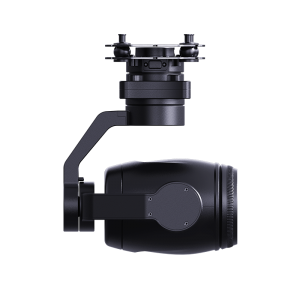

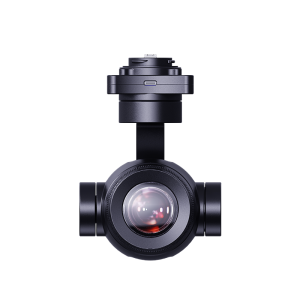

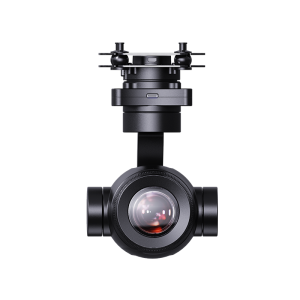

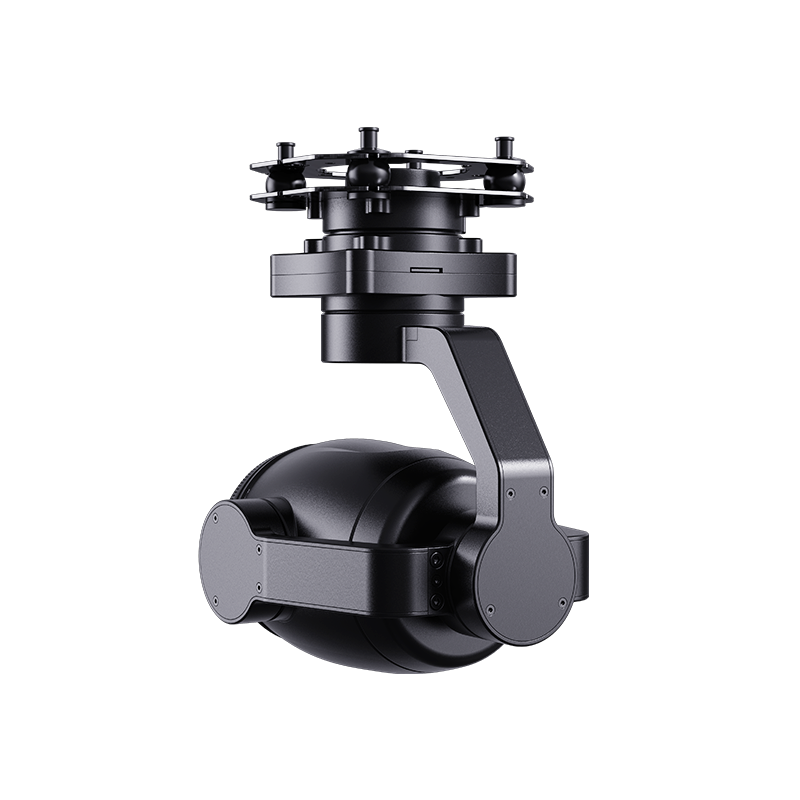

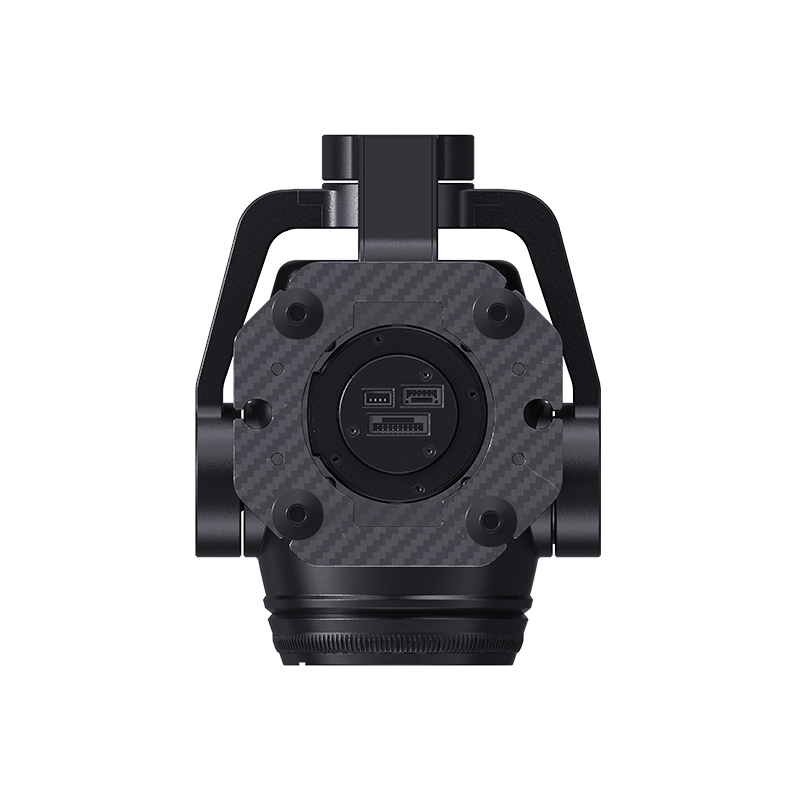

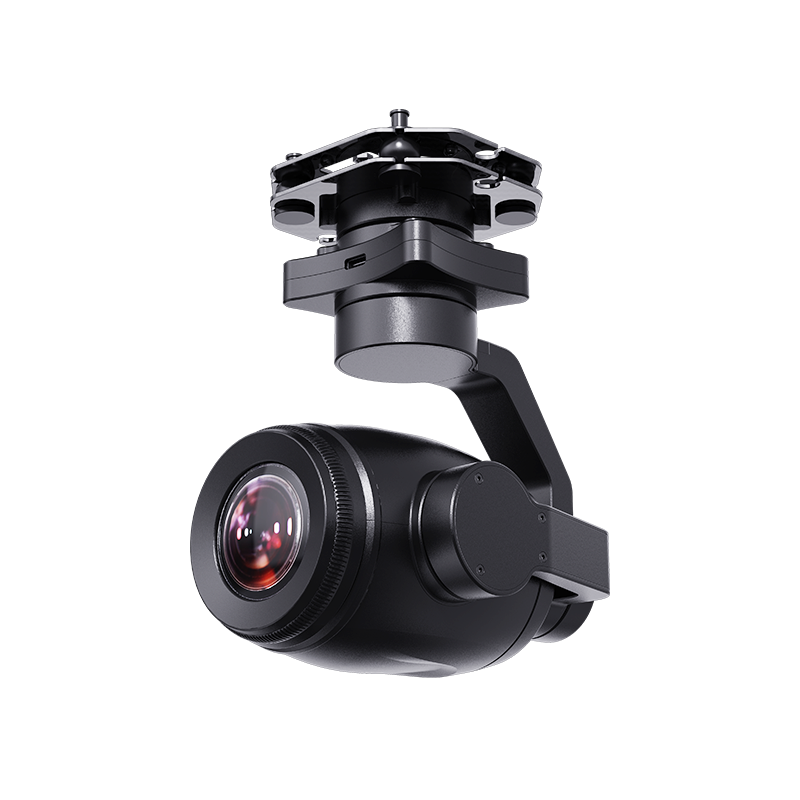

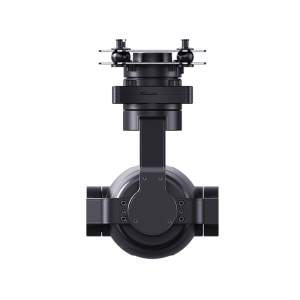

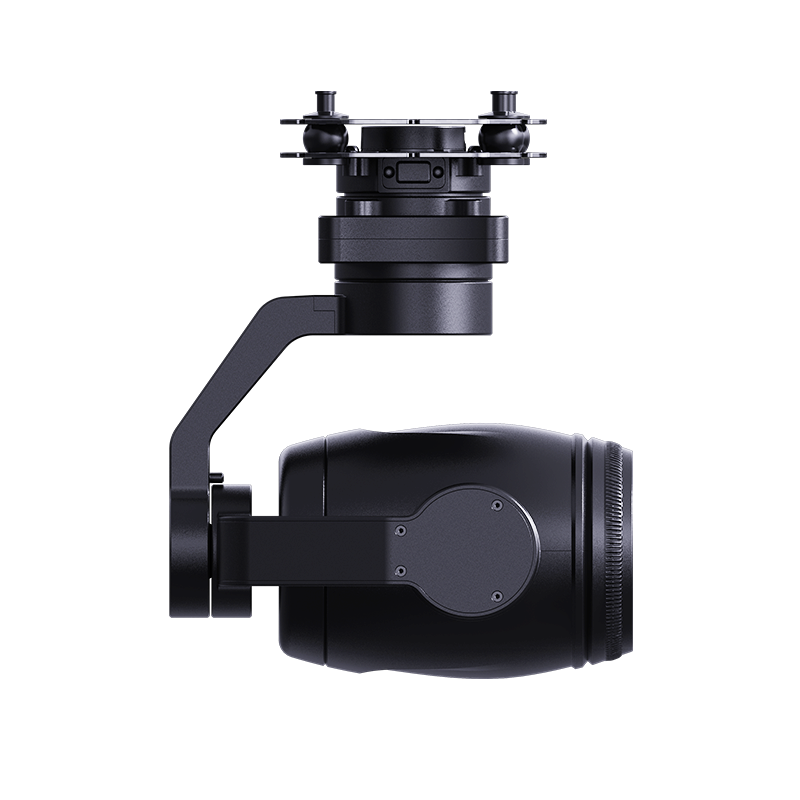

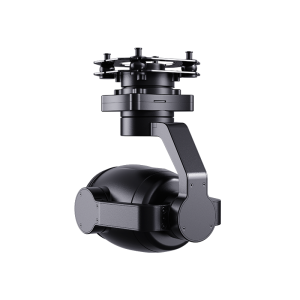

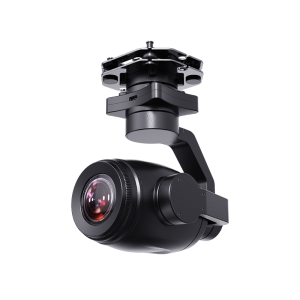

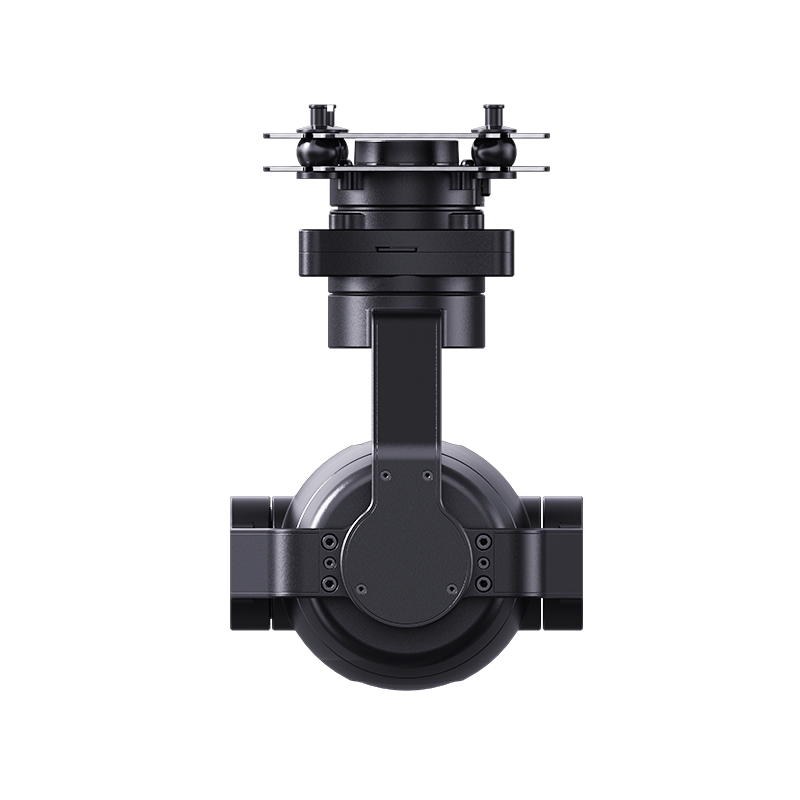

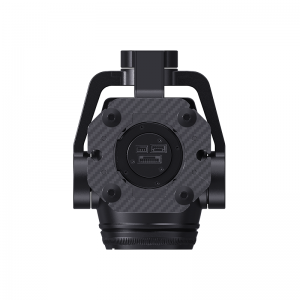

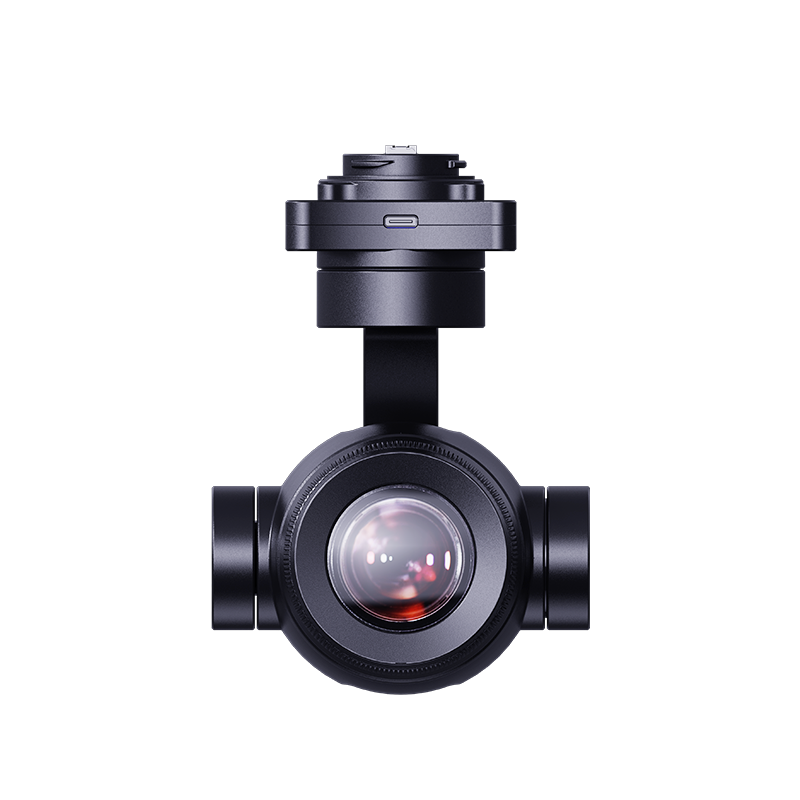

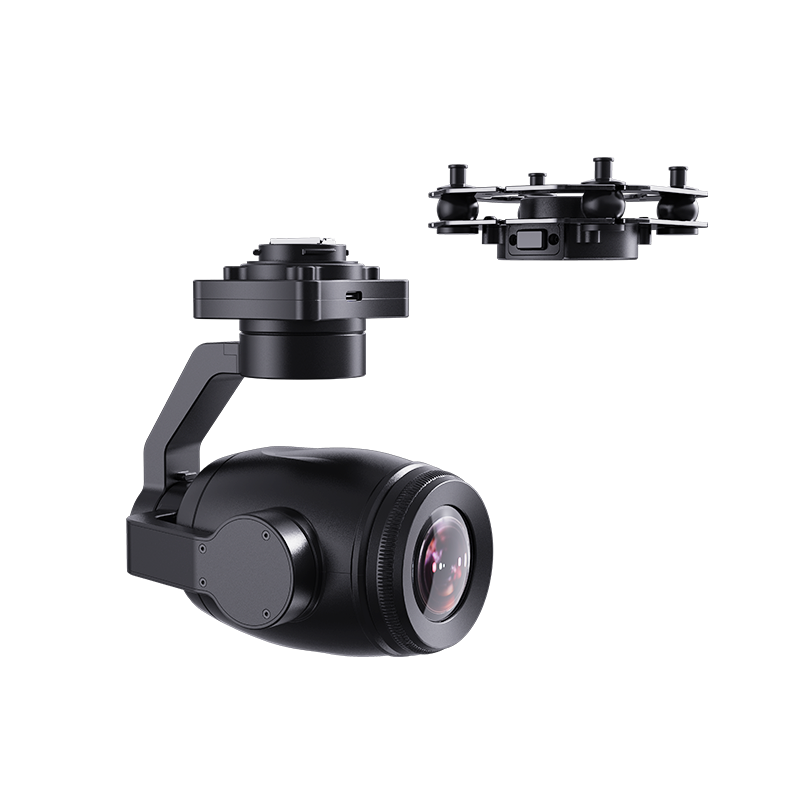

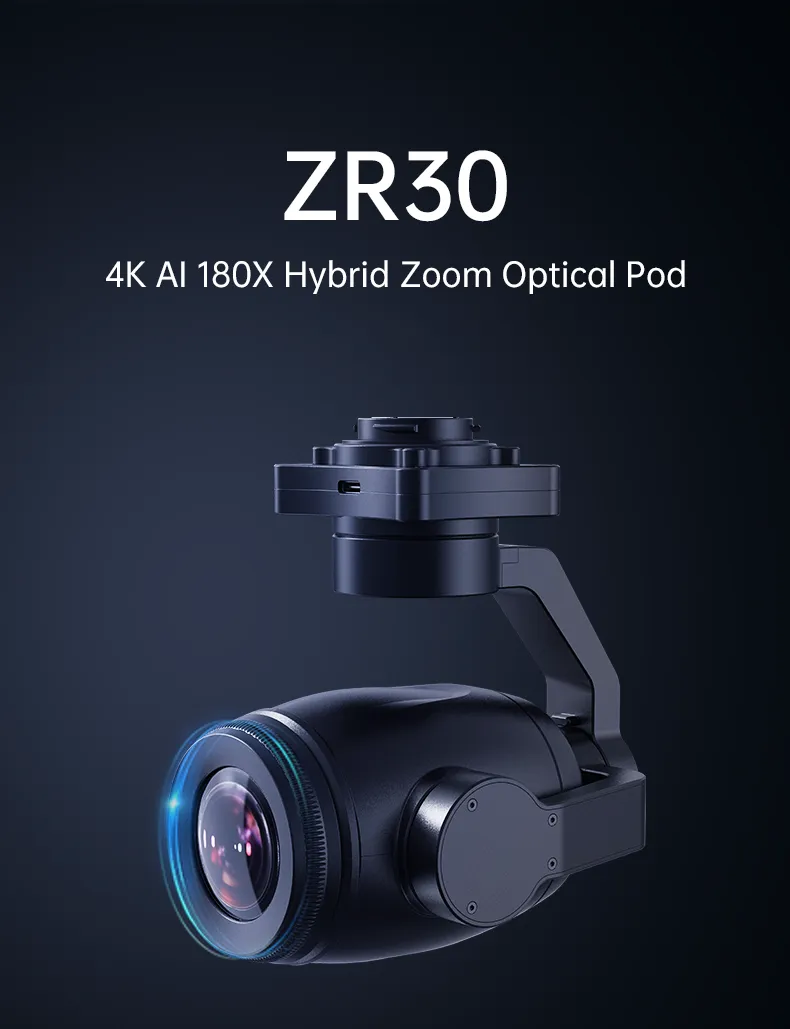

SIYI ZR30 4K 8MP Ultra HD 180X Hybrid 30X Optical Gimbal Camera with AI Smart Identify and Tracking
SpecsOverallVideo Output PortEthernetMicro-HDMIControl Signal Input PortS.Bus, UARTEthernet UDPControl Signal Output PortS.BusHigh-Accuracy 3-Axis StabilizationYaw, Pitch, RollWorking Voltage11 ~ 25.2
Detailed Information
Specs
Overall

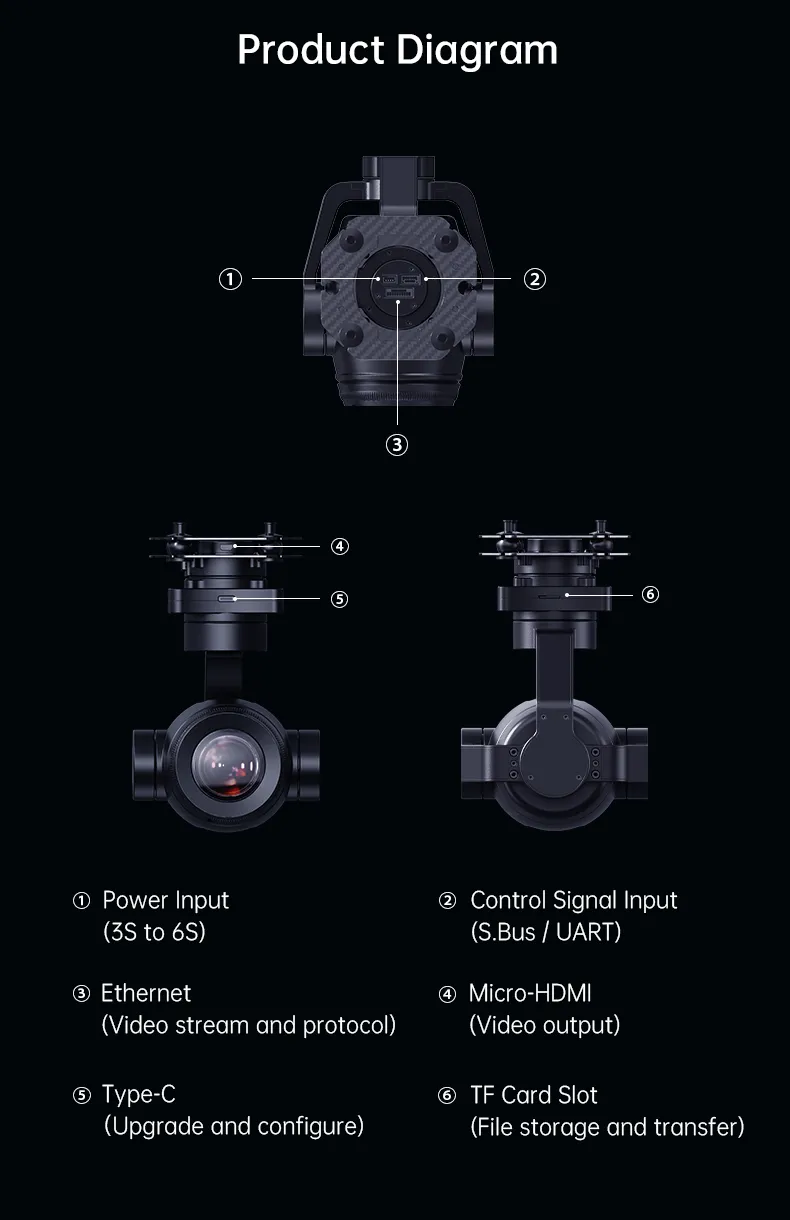

| Video Output Port | Ethernet Micro-HDMI |

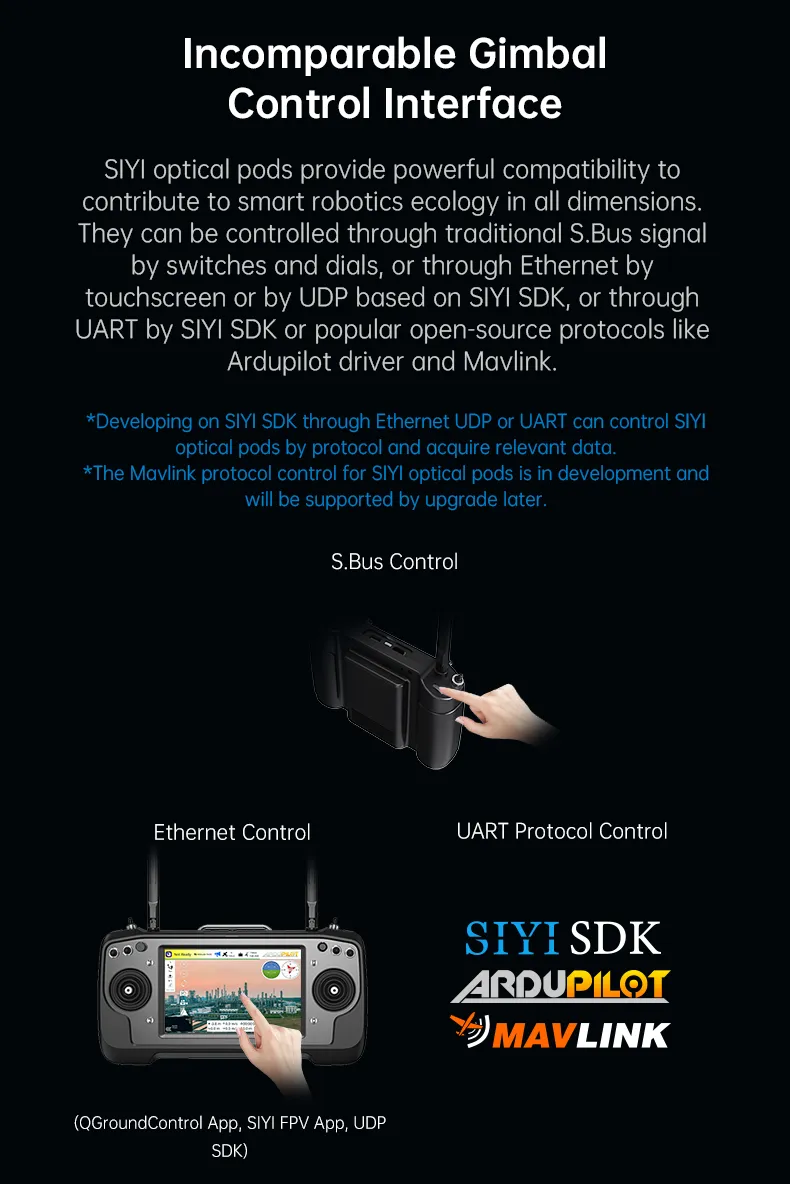

| Control Signal Input Port | S.Bus, UART Ethernet UDP |
| Control Signal Output Port | S.Bus |
| High-Accuracy 3-Axis Stabilization | Yaw, Pitch, Roll |
| Working Voltage | 11 ~ 25.2 V |
| Power Consumption | Average: 5 W Summit: 12 W |
| Working Temperature | -10 ~ 50℃ |
| Dimension | 132*100*100 mm (including the quick release board) |
| Weight | 668 g (including the quick release board) |

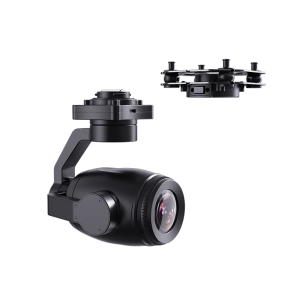

ZR30 Quick Release Board
| Dimension | 82*65*20 mm |
| Weight | 38 g |

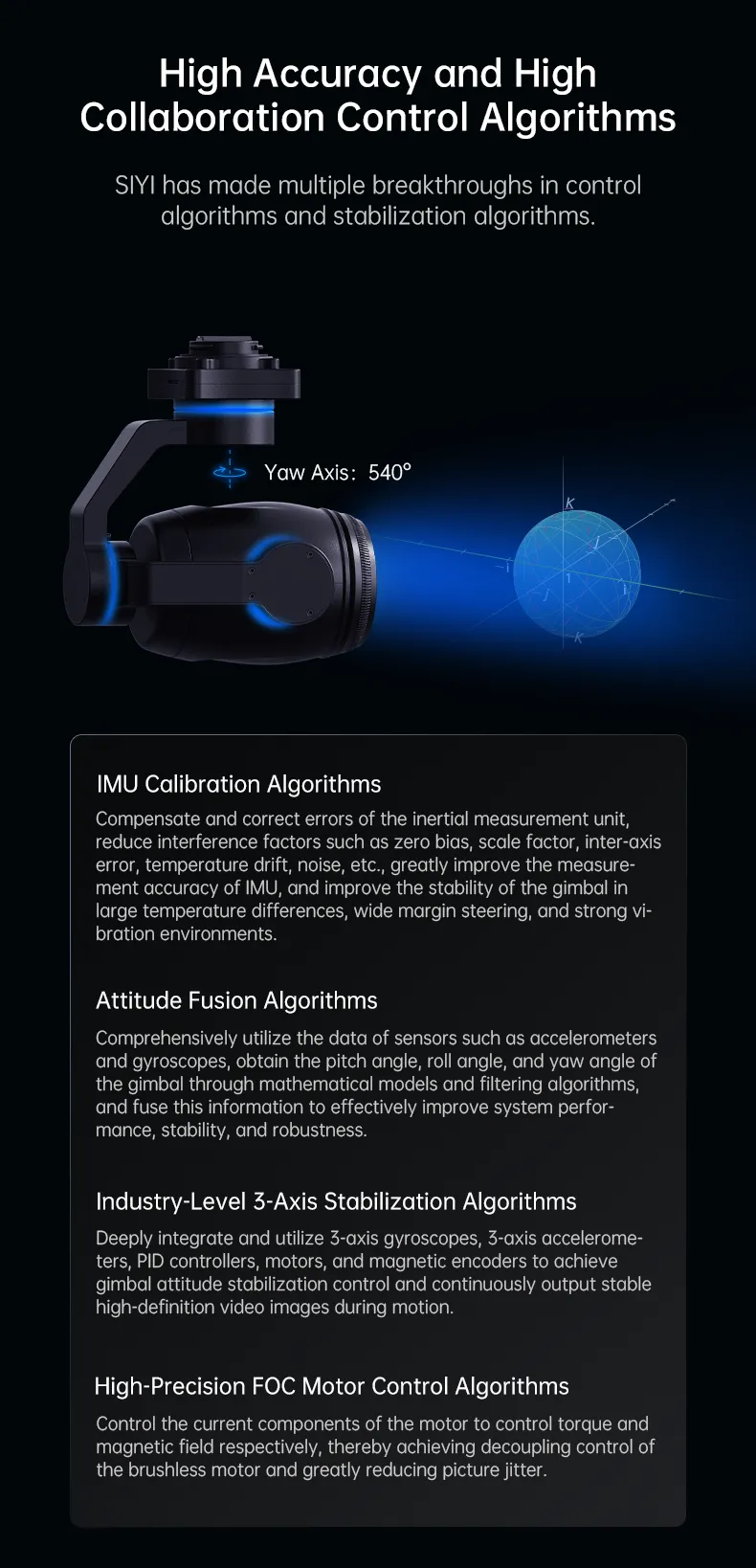

Gimbal
| Angular Vibration Range | ±0.01° |
| Controllable Pitch Angle | -90° ~ +25° |

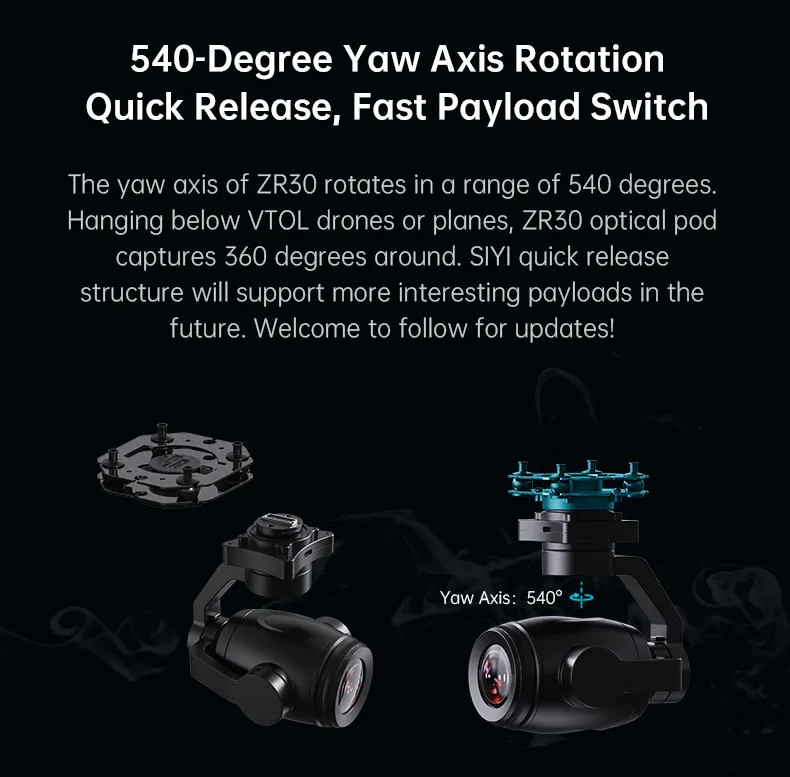

| Controllable Yaw Angle | -270° ~ +270° |
| Roll Angle | -45° ~ +45° |

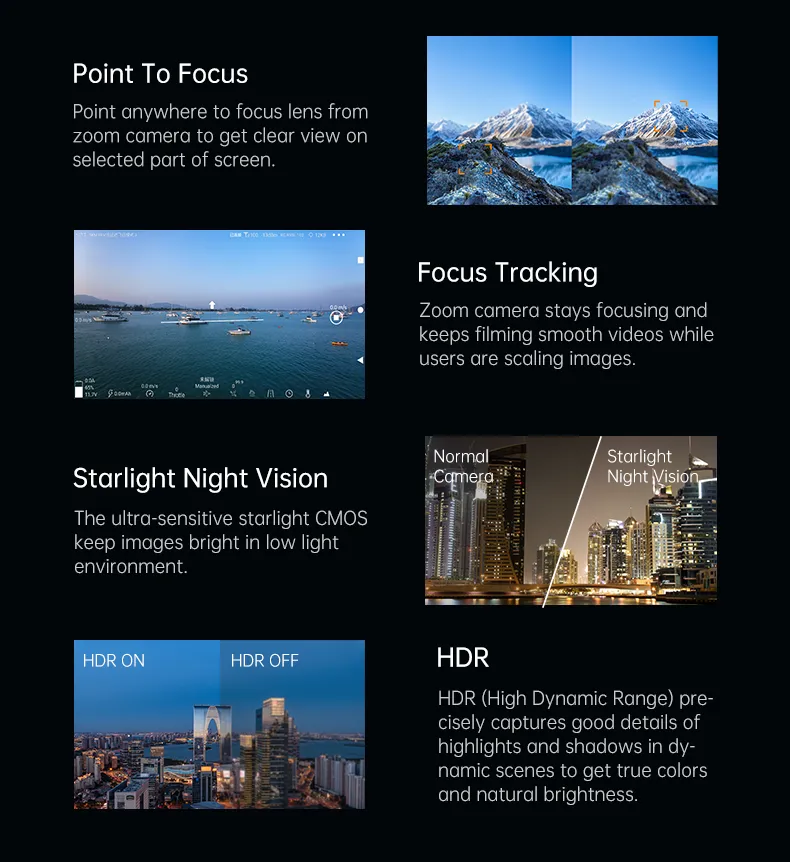

Camera
| Lens | 30X Optical Zoom (180X Hybrid Zoom) |
| Focal Length | 4.5 ~ 148.4 mm (±5%) |
| Image Sensor | 1/2.7 Inch, 8 MP effective resoultion |
| Aperture | F1.3 ~ 2.8 (±5%) |
| FOV | Without Zoom: Diagonal 65.4°, Horizontal 58.1° 30X Optical Zoom: Diagonal 2.48°, Horizontal 2.14° |
| Video Recording Resolution | 4K(4096×2160)@ 25 fps 2K(2560×1440)@ 30 fps 1080p(1920×1080)@ 30 fps 720p(1280×720)@ 30 fps |
| Video Storage Bitrate | 15 Mbps (H.265 codec） |
| File Storage Format | FAT32 |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, Max 128GB |
| Still Photography Mode | Single |
| Metering Mode | Evaluative metering |
| White Balance | Auto |
