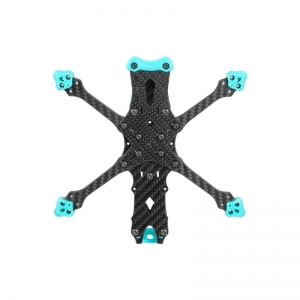

Detailed Information
| Material | Toray T700 carbon with silky coating |
| Wheelbase | 192mm |
| Mouting hole | Middle: 25.5mm M2; Rear: 20x20mm/25.5*25.5mm M2 |
| Camera size | 19*19/20*20mm |
| Weight | Weight 101g (Including TPU and screws) |
| Packing List | |
| 5mm Arm 12*12mm mounting - 4 | |
| 2mm Top Plate - 1 | |
| 2mm Center Plate - 1 | |
| 2mm Bottom Plate - 1 | |
| 2mm Side Plate - 2 | |
| 20mm Standoff - 3 | |
| 27mm Standoff - 4 | |
| SMA Antenna Mount - 1 | |
| Bottom Plate Front Protective Mount - 1 | |
| M5 Gopro Mount - 1 | |
| Arm Guard - 4 | |
| DJI O3 Mount - 1 | |
| DJI O3 Cam TPU Mount - 1 | |
| UFL Antenna Mount - 1 | |
| M3*6 Screw - 10 | |
| M3*10 Screw - 4 | |
| M3*11 Screw - 8 | |
| M2*12 Screw - 4 | |
| M2*6 Gummy- 4 | |
| M2 Nut - 9 | |
| Stainless Steel Rivet Nut - 8 | |
| M5 Nut - 1 | |
| M5*20 Screw - 1 | |
| Battery Anti-slip Mat - 1 | |
| 225*15mm Battery Strap - 1 |
