Hobbywing X9 Plus 14S Power System 9620 Motor 36inch Propeller For Agriculture Drone Multirotors
Hobbywing X9 Plus 14S Power System 9620 Motor 36inch Propeller For 20L 25KG Agriculture Drone MultirotorsProduct Name: X9 PlusSpeicifcations:Max. Thrust : 26.5kg/Axis (53.6V, Sea Level)Recommended Tak
Detailed Information

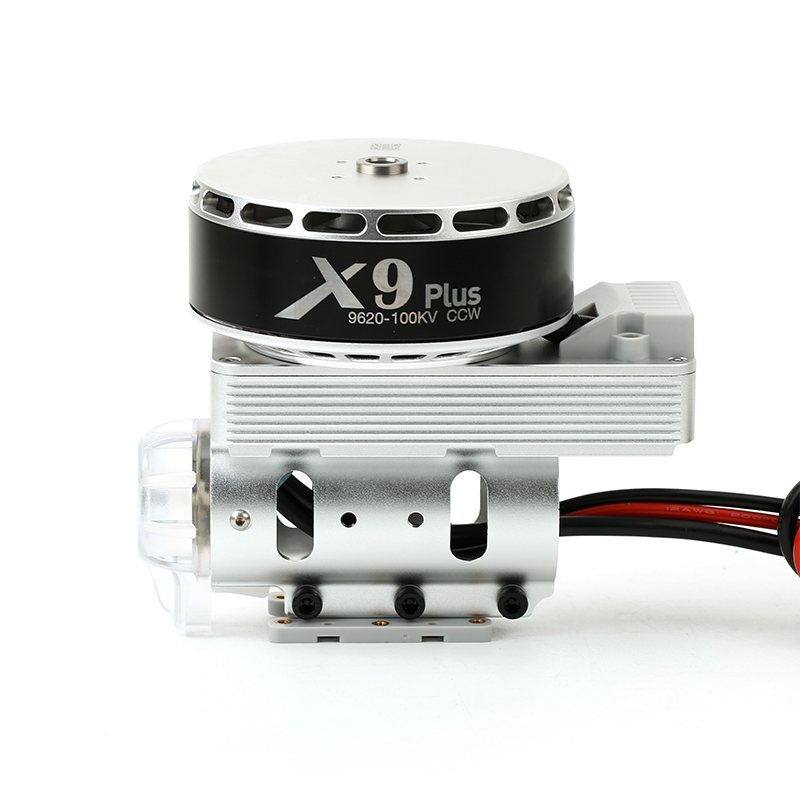

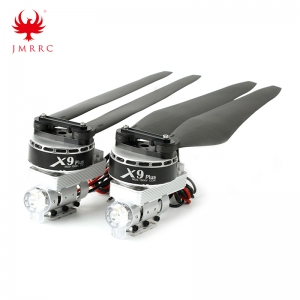

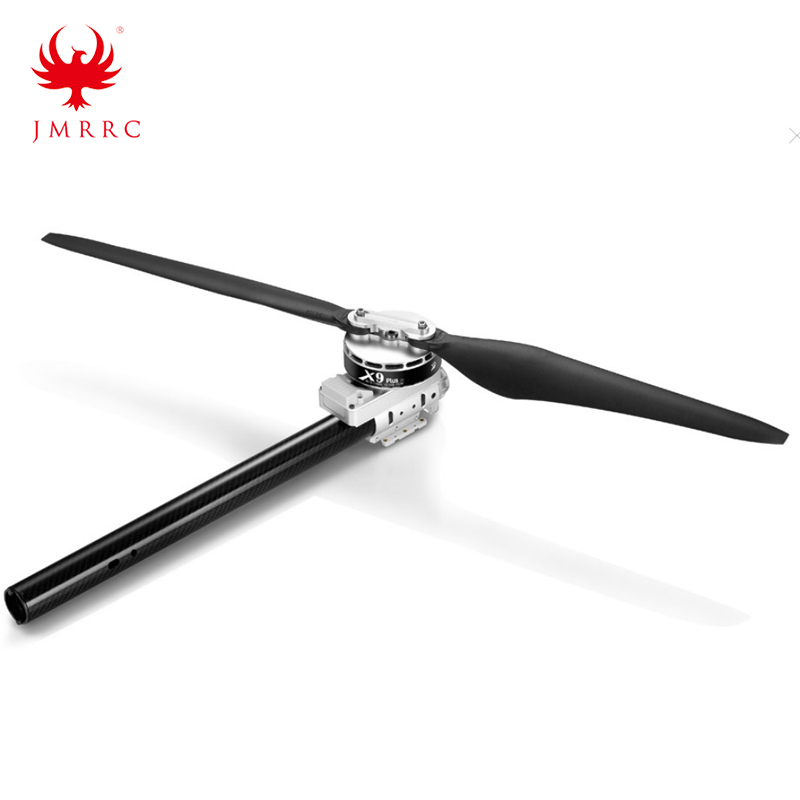

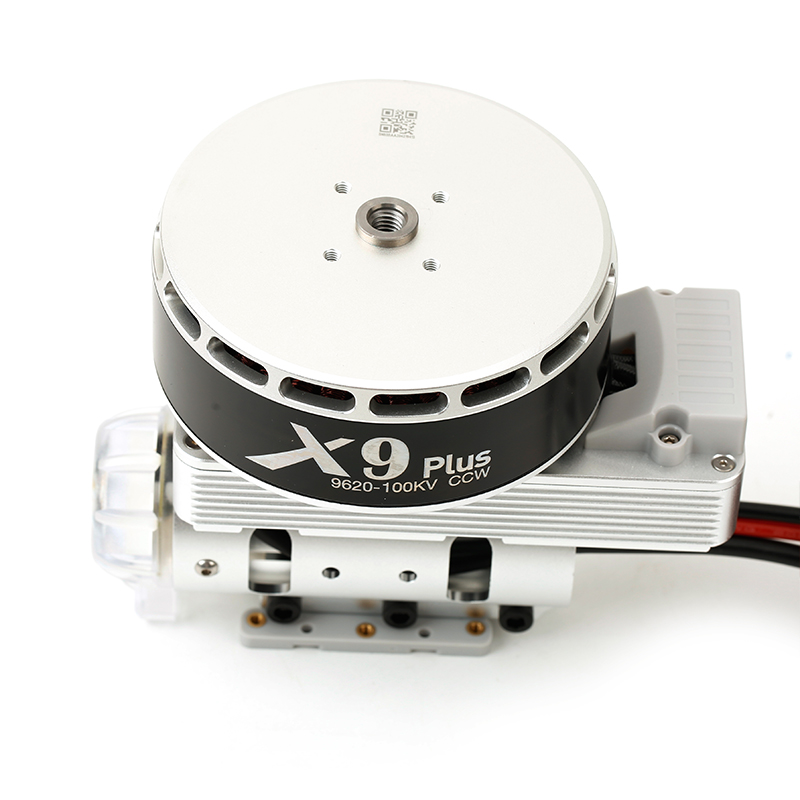

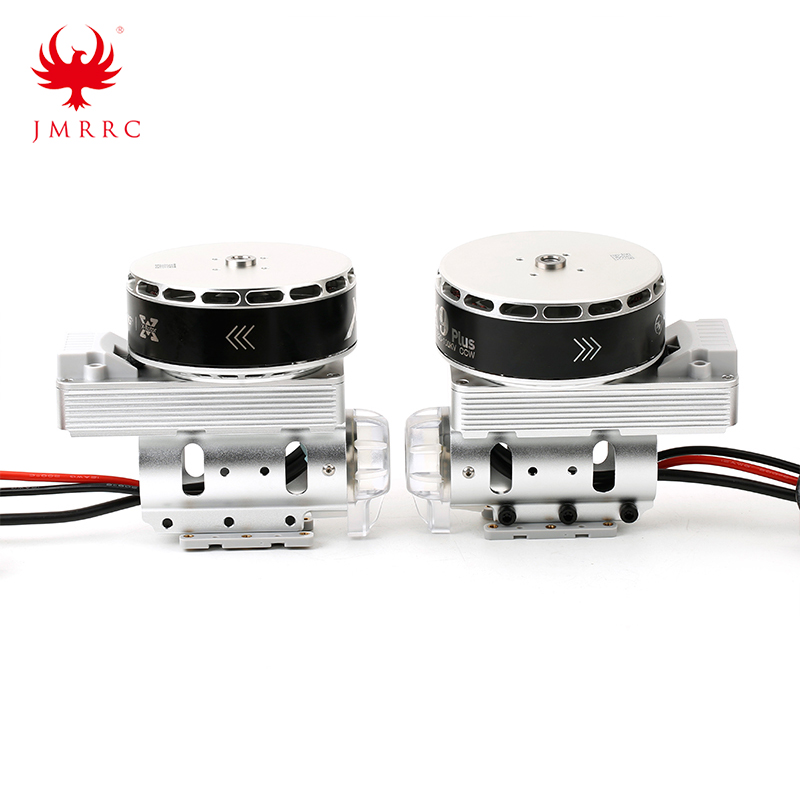

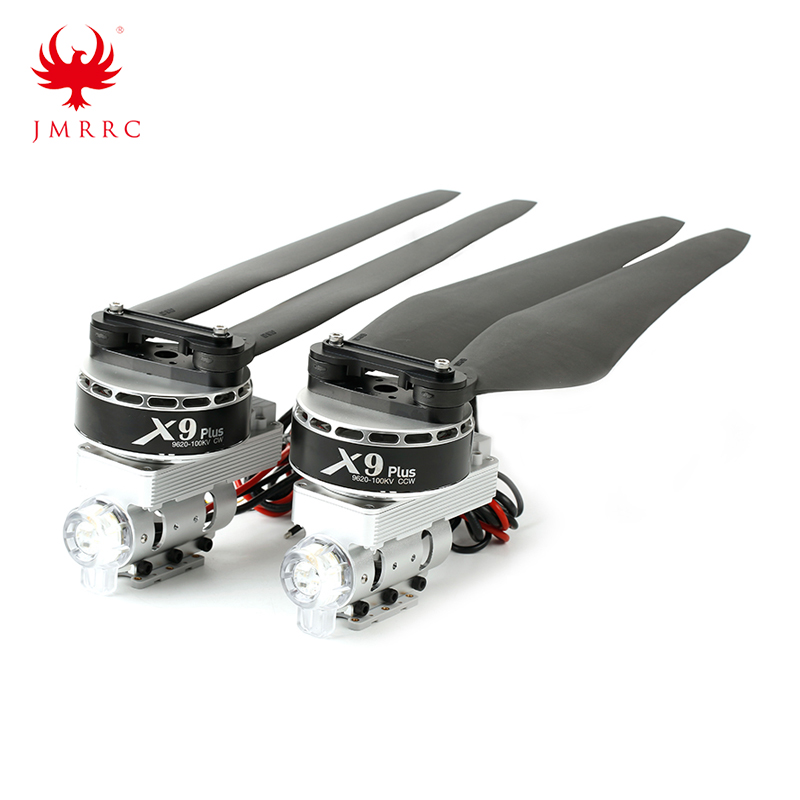

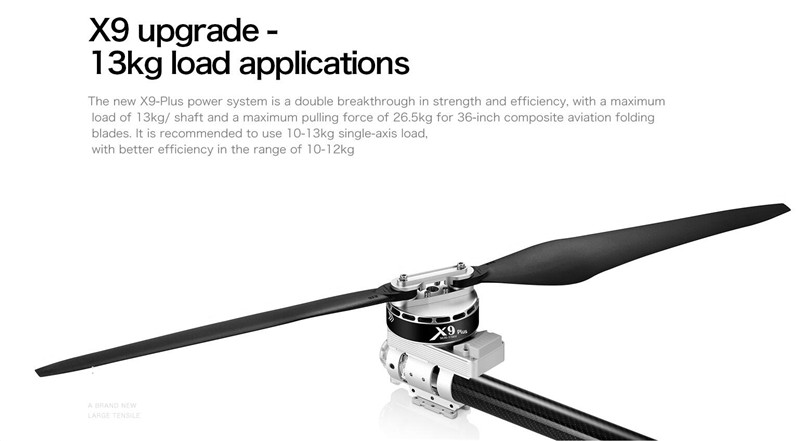

Hobbywing X9 Plus 14S Power System 9620 Motor 36inch Propeller For 20L 25KG Agriculture Drone Multirotors
Product Name: X9 Plus
Speicifcations:
Max. Thrust : 26.5kg/Axis (53.6V, Sea Level)
Recommended Take-off Weight : 11-13kg/Axis (53.6V, Sea Level)
Recommended Lipo Battery : 14S (Lipo)
Operating Temperature : -20-50℃
Combo Weight : 1774g

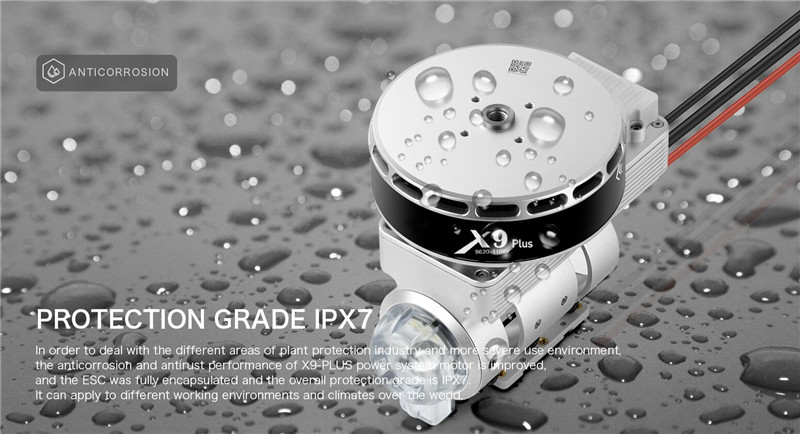

Waterproof Rating : IPX7
Motor:
KV Rating : 100KV
Stator Size: 96*20mm
Bearing : Bearings imported from Japan
ESC:
Recommended Lipo Battery : 6-14S Lipo
PWM Input Signal Level : 3.3V/5V (compatible)
Throttle Signal Frequency : 50-500Hz
Operating Pulse Width : 1050-1950us (Fixed or cannot be programmed)
Max. Input Voltage : 60.9V
Max. Input Current (short duration) : 120A (w/Good Heat Dissipation)
BEC : No
Propeller:
Diameter * Pitch : 36*120inch
