JHEMCU VTX30-800 5.8GHZ 800MW Wireless Video Transmission Module FPV Image Transmission
Model: VTX30-800Frequency: 5645-5945MHZInput voltage: 7-26VOutput voltage: 5V/1AChannel : 40CHTransmission power: PIT/25MW/100/200/400/800MWBoundary dimension: 36*36MMScrew hole: 30.5*30.5MMScrew aper
Detailed Information
Model: VTX30-800
Frequency: 5645-5945MHZ
Input voltage: 7-26V
Output voltage: 5V/1A
Channel : 40CH
Transmission power: PIT/25MW/100/200/400/800MW
Boundary dimension: 36*36MM
Screw hole: 30.5*30.5MM
Screw aperture: 3MM
Weight: 6.8 grams

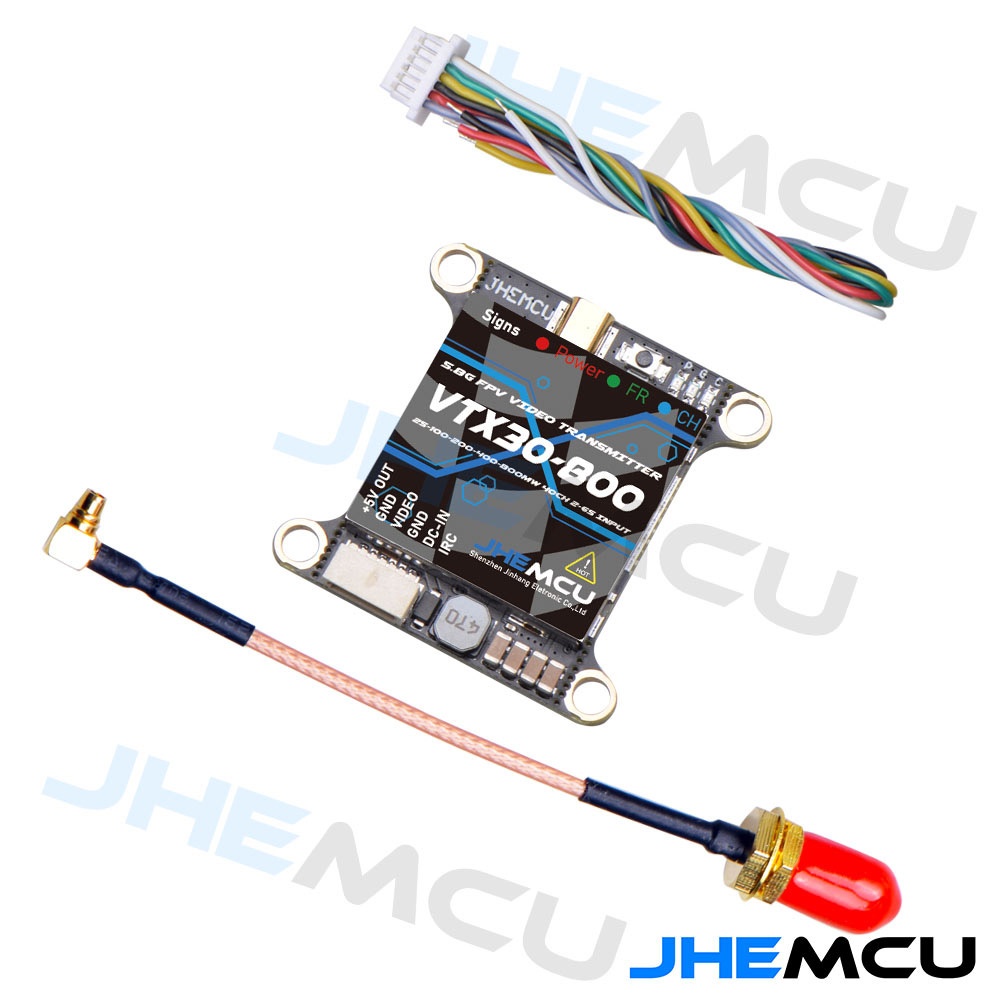

Packaging List:
VTX30-800 * 1

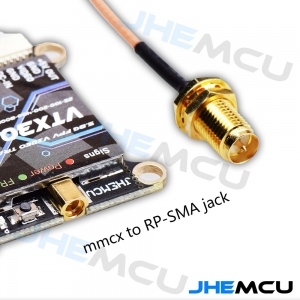

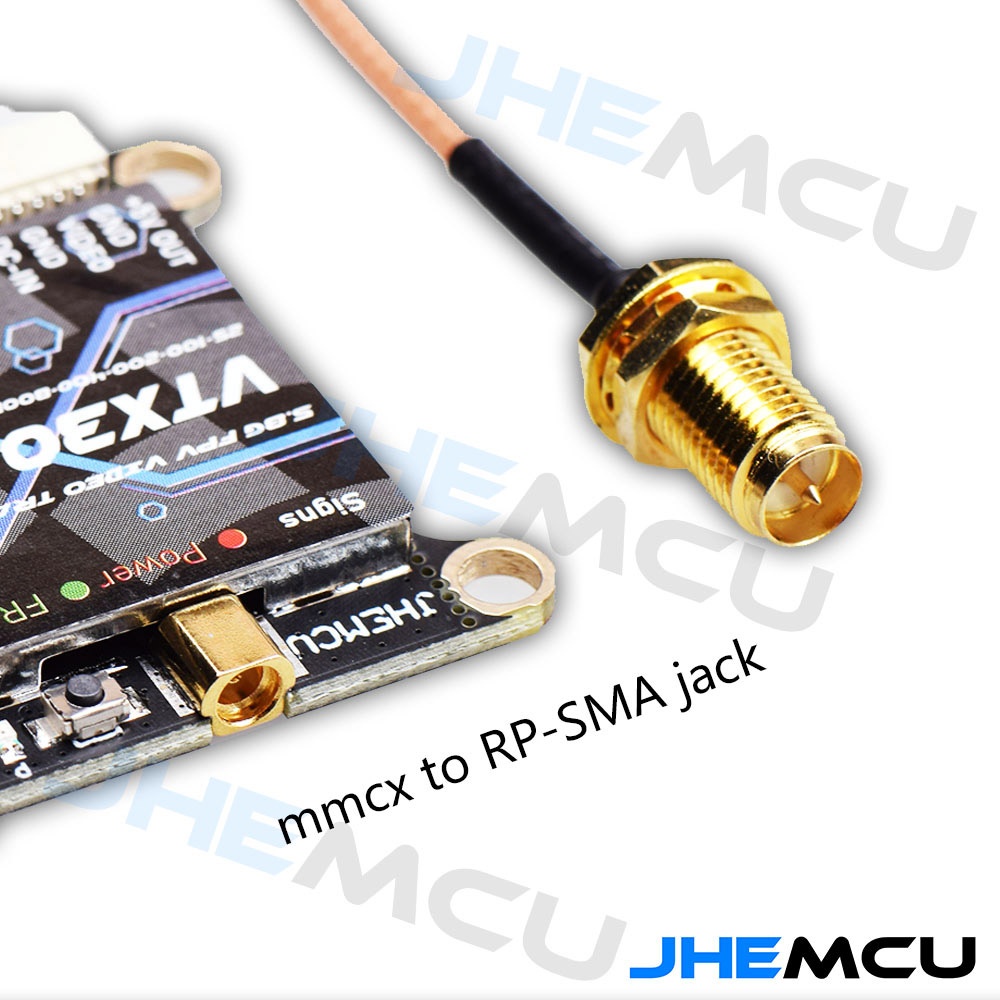

MMCX-SMAJl cable * 1
6P * 1.0MM plug cable * 1
