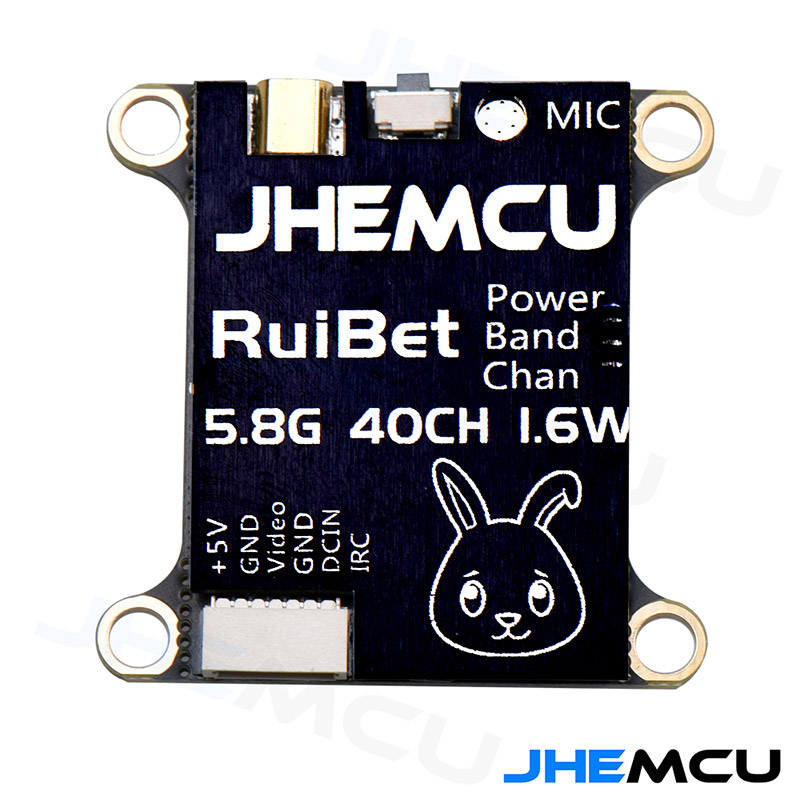

JHEMCU RuiBet Tran-3016W 5.8GHZ 1.6W image transmission wireless video transmission supporting audio transmission

JHEMCU RuiBet Tran-3016W 5.8GHZ 1.6W image transmission wireless video transmission supporting audio transmission

Default output: 5733MHZ (5.733GHZ)/1.6WSupport manual adjustment of power and frequency, support IRC protocol OSD parameter adjustmentBuilt in microphone for real-time sound transmissionModel: Tran-30

Detailed Information

Default output: 5733MHZ (5.733GHZ)/1.6W

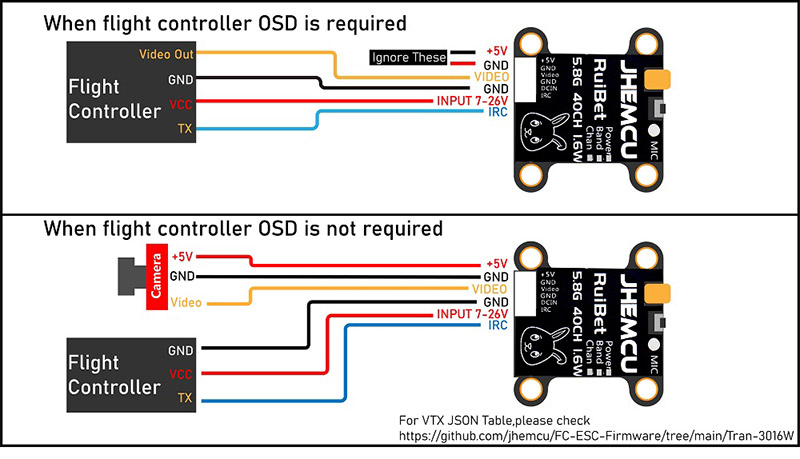

Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment

Built in microphone for real-time sound transmission


Model: Tran-3016W

Frequency: 5645-5945MHZ

Input voltage: 7-26V

Output voltage: 5V/1A

Channel : 40CH

Transmission power: PIT/25MW/200/400/800/1600MW

Boundary dimension: 36*36MM

Screw hole: 30.5*30.5MM

Screw aperture: 3MM

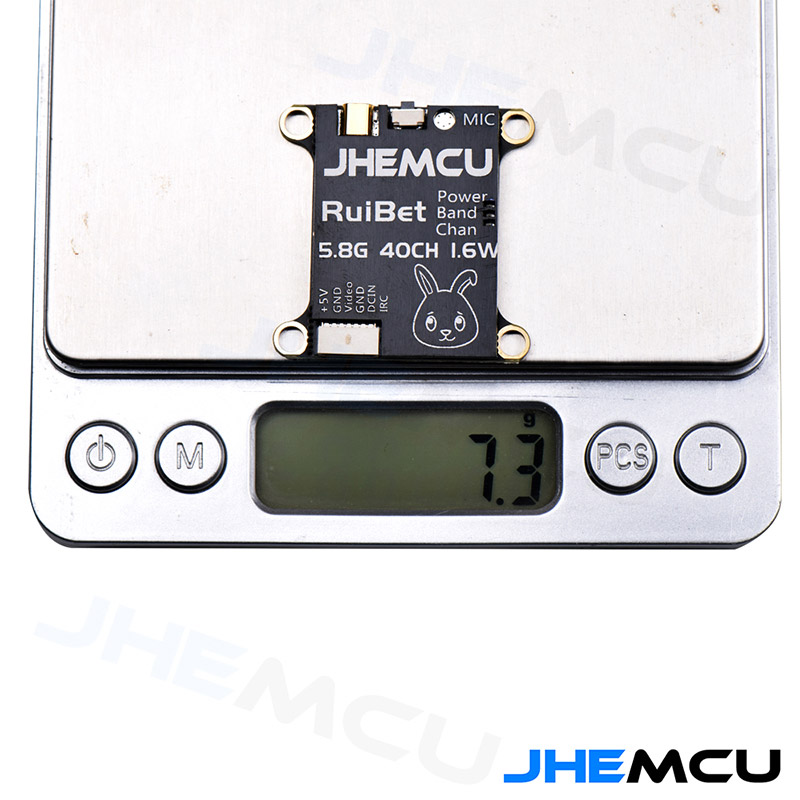

Weight: 7.3grams

Packaging List:

Tran-3016W  * 1

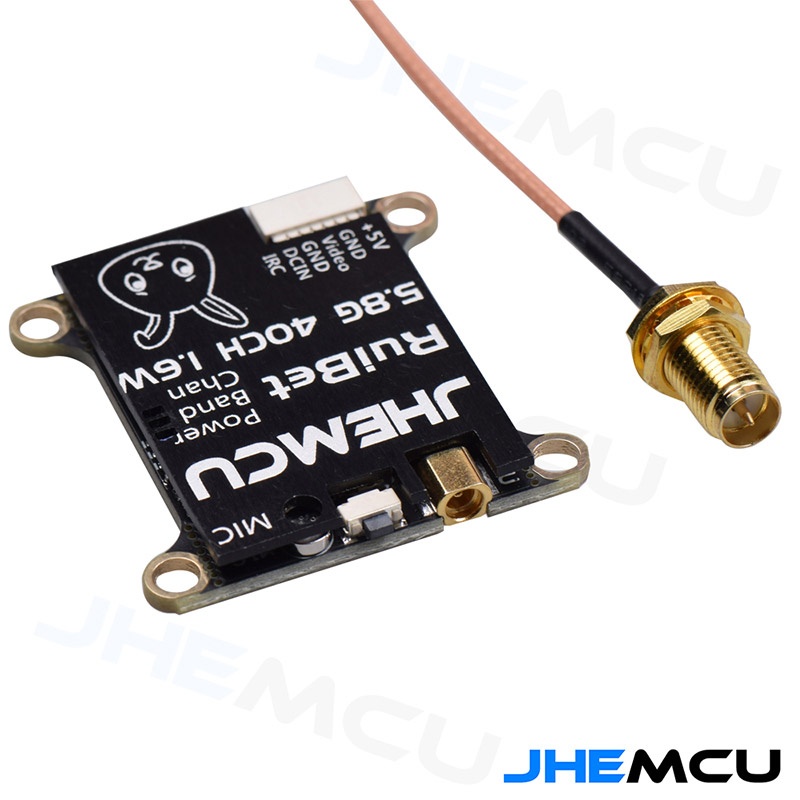

MMCX-SMAJl cable * 1
6P * 1.0MM plug cable * 1
