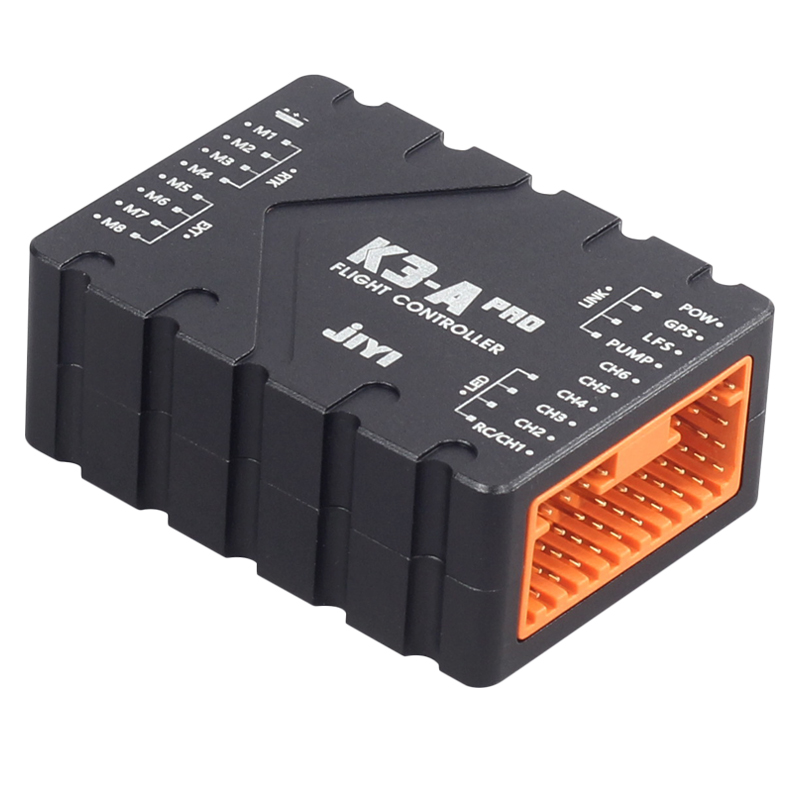

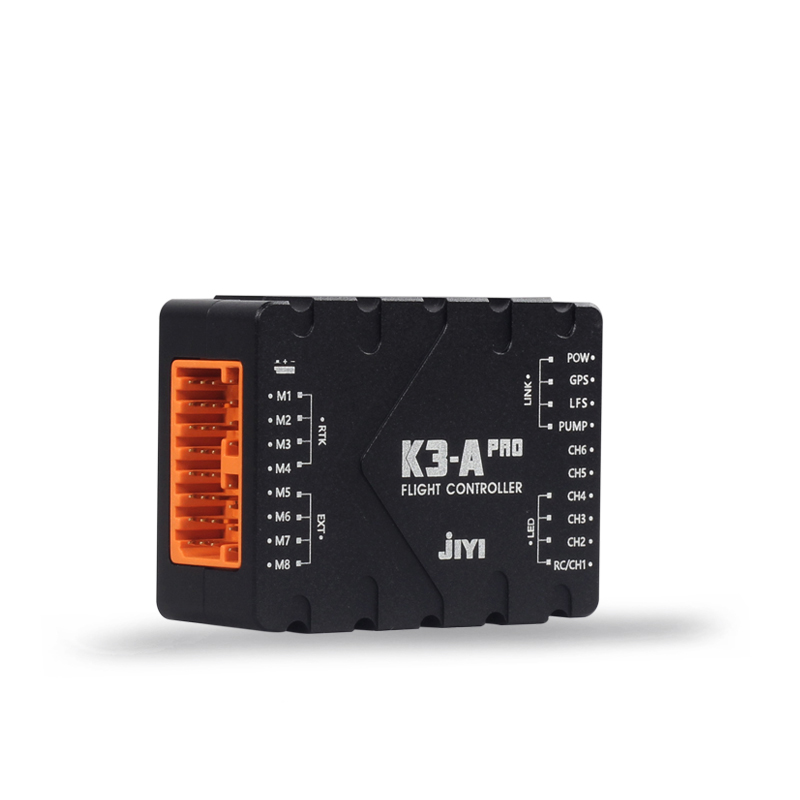

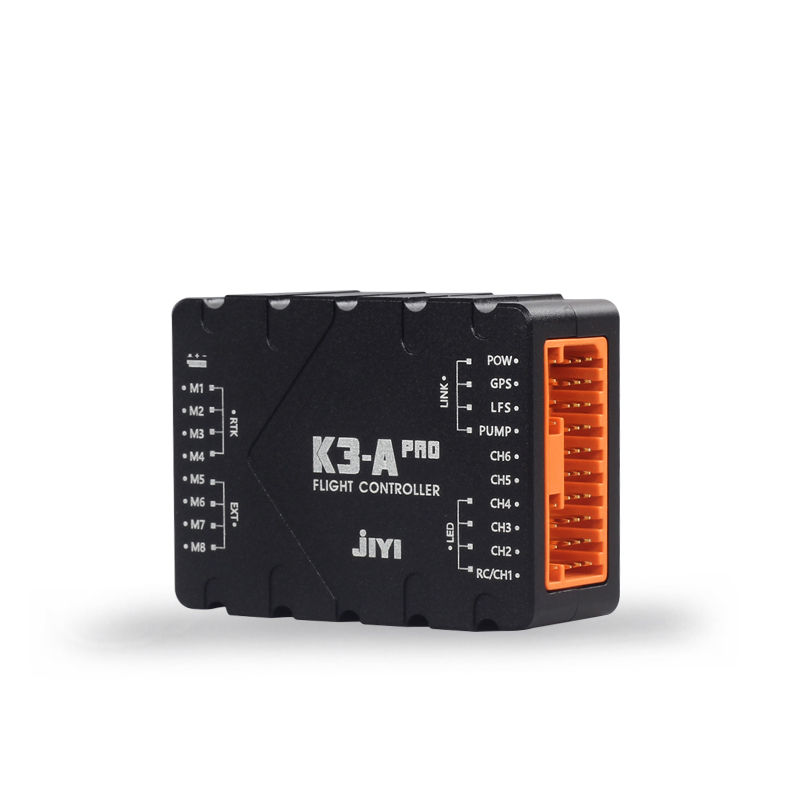

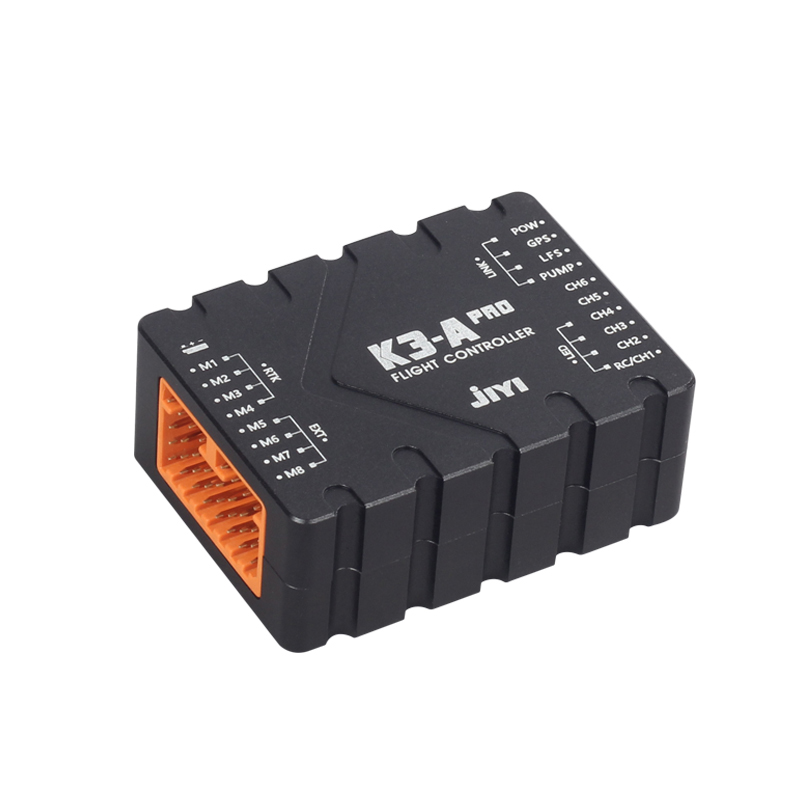

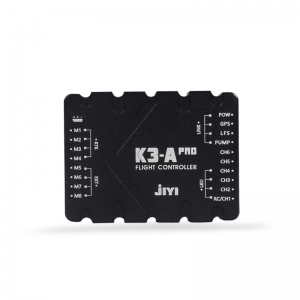

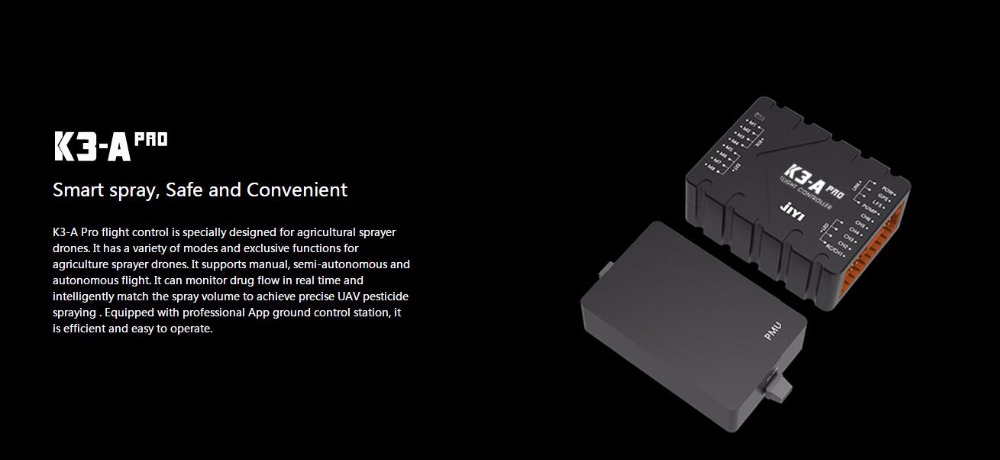

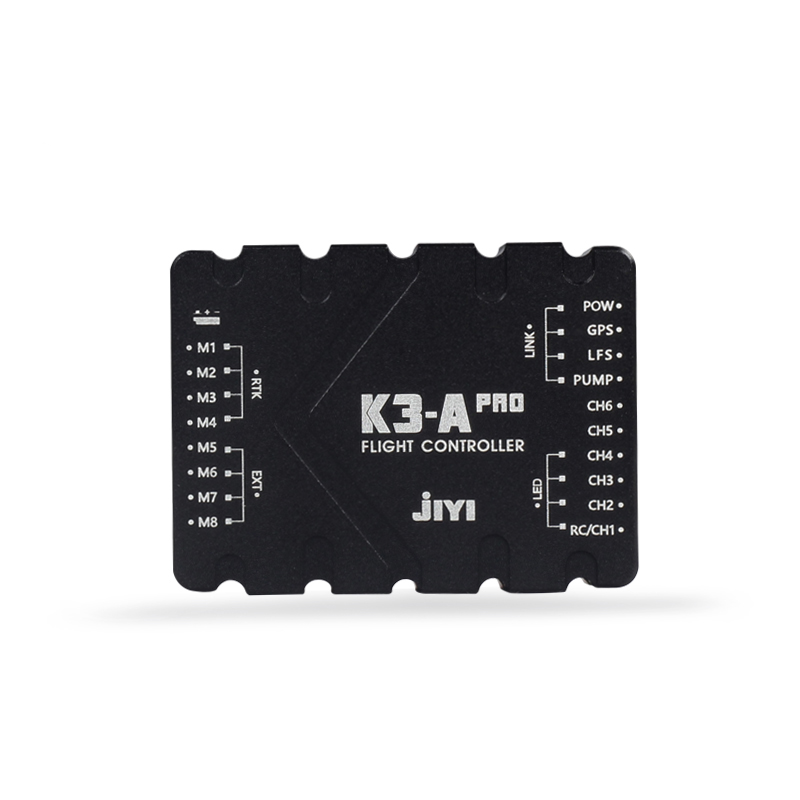

Jiyi K3a PRO FC Intelligent Autonomous with GPS Flight Control System Agricultural Drone Sprayer Usage
SpecificationSpecificationSupported MultiQuadrotor(+ type, X type)Six Rotor(+type, X type,TY type, YI type Coaxial double paddle)Eight Rotors (+types, X types V types)Hover accuracyHorizon:土2MVertical
Detailed Information

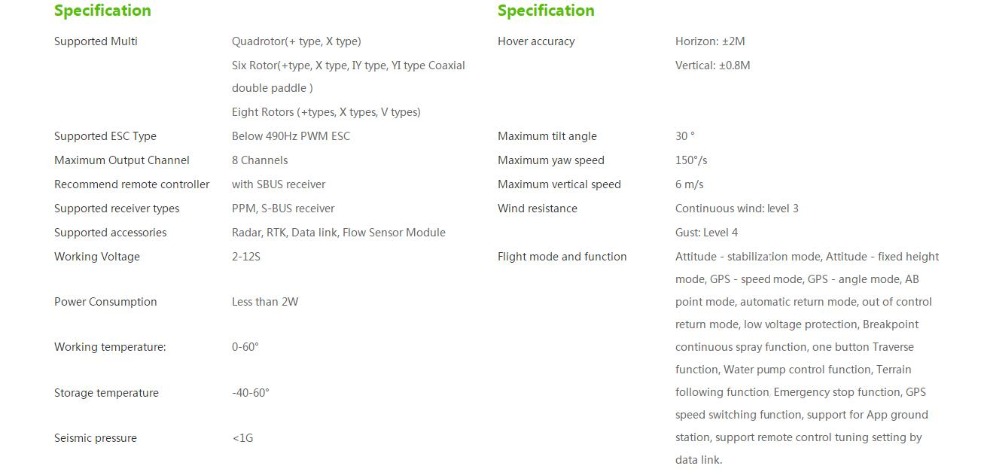

| Specification | Specification | ||
| Supported Multi | Quadrotor(+ type, X type) Six Rotor(+type, X type,TY type, YI type Coaxial double paddle) Eight Rotors (+types, X types V types) | Hover accuracy | Horizon:土2M Vertical: +0.8M |
| Supported ESC Type | Below 490Hz PWM ESC | Maximum tilt angle | 30° |
| Maximum Output Channel | 8 Channels | Maximum yaw speed | 150°/s |
| Recommend remote controller | with SBUS receiver | Maximum vertical speed | 6 m/s |
| Supported receiver types | PPMS-BUS receiver | Wind resistance | Continuous wind: level 3 Gust: Level 4 |
| Supported accessories | Radar, RTK, Data link, Fow Sensor Module | ||

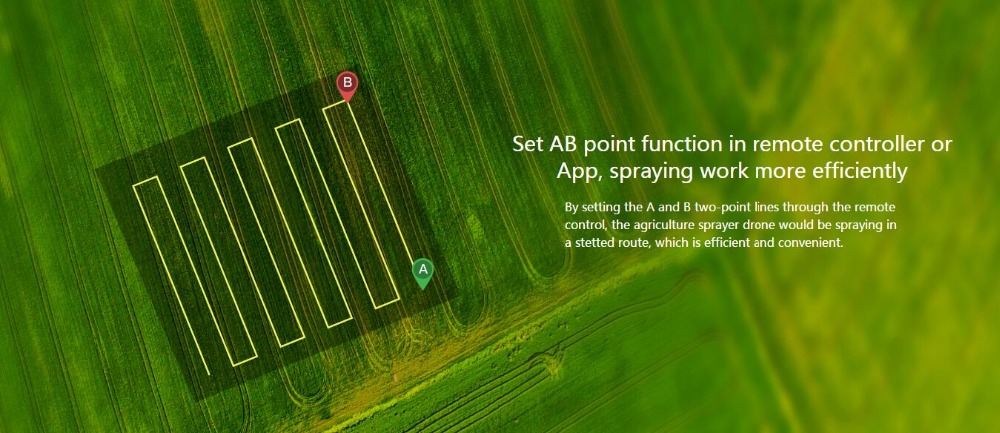

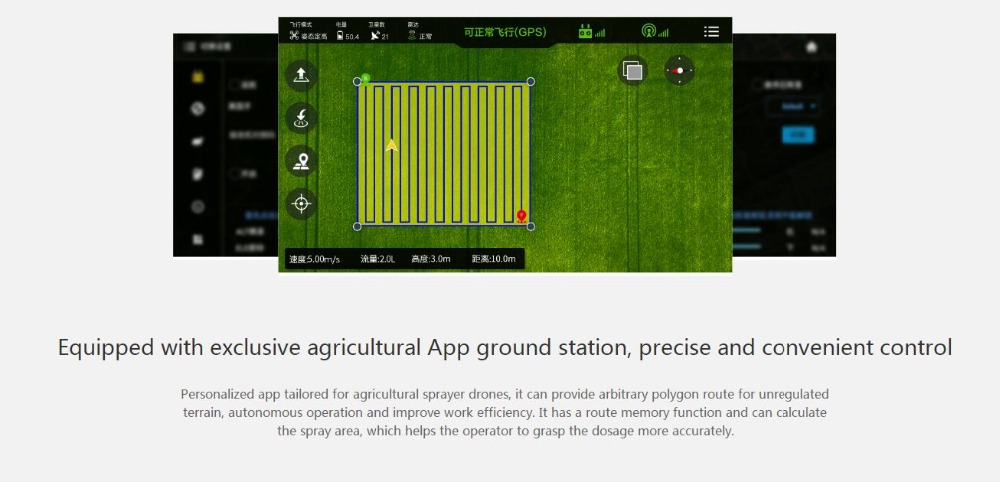

| Working Voltage | 2-12S | Flight mode and function | Attitude - stabiliza:ion mode. Attitude - fixed heiahtmode, GPS - speed mode, GPS - angle mode, ABpoint mode. automatic return mode. out of controlretum mode, low voltage protection, Breakpointcontinuous spray function, one button Traverse function, Water pump control function, Terrain following function Emergency stop function, GPS speed switching function, support for App ground station, support remote control tuning setting by data link. |
| Power Consumption | Less than 2W | ||
| Working temperature | 0-60° | ||
| Storage temperature | -40-60° | ||
| Seismic pressure | <1G |
