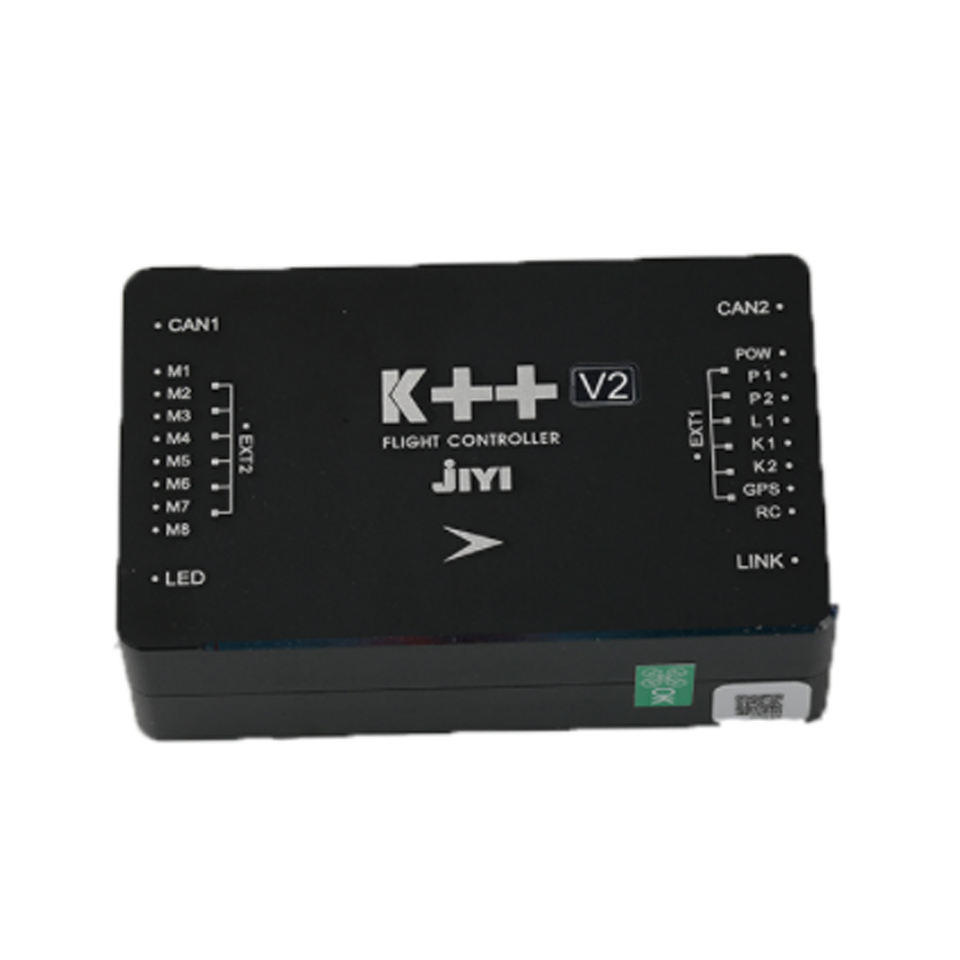

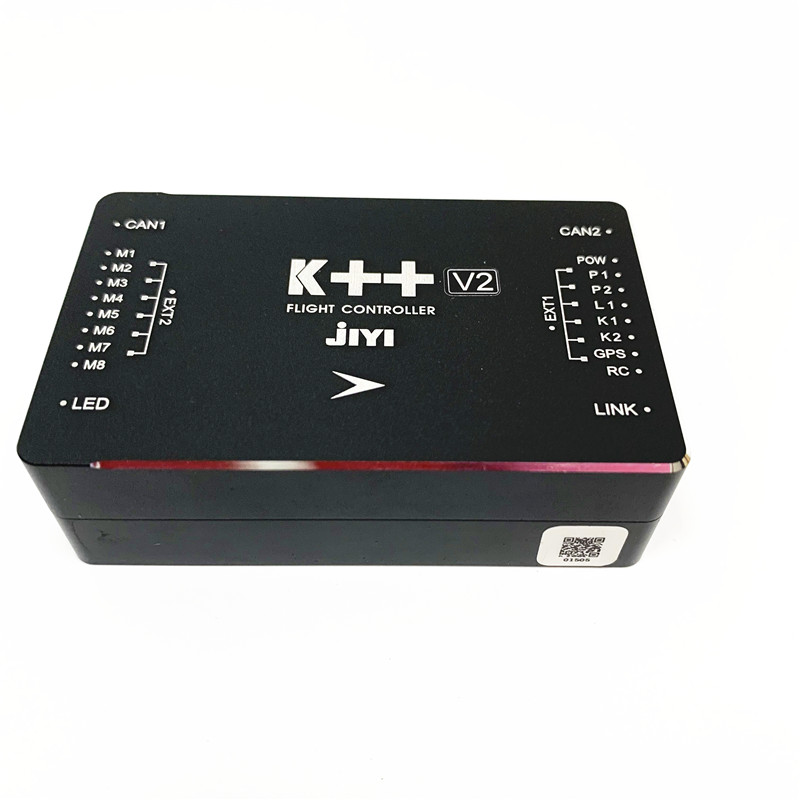

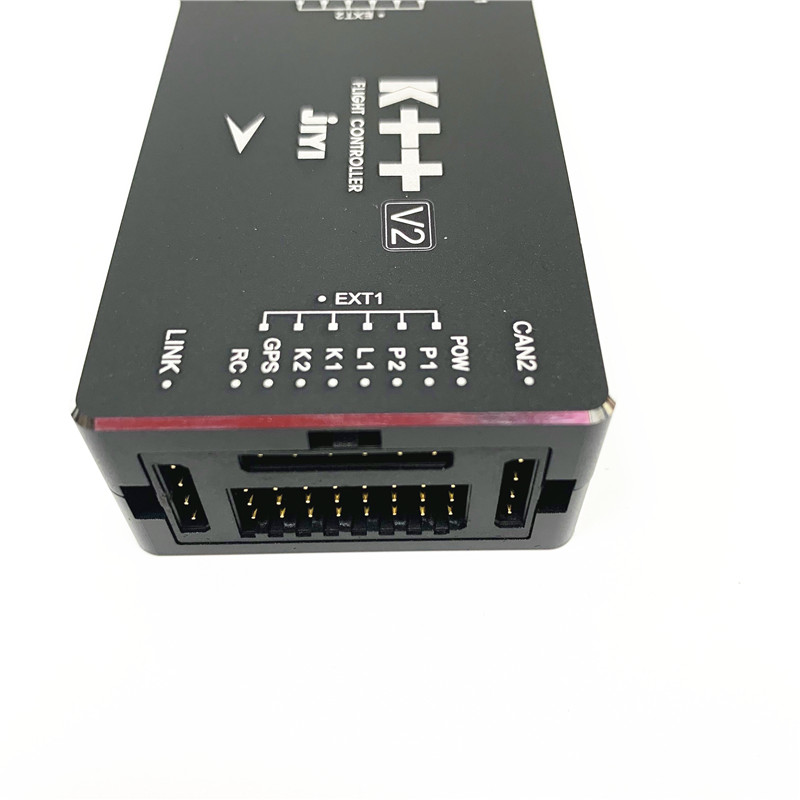

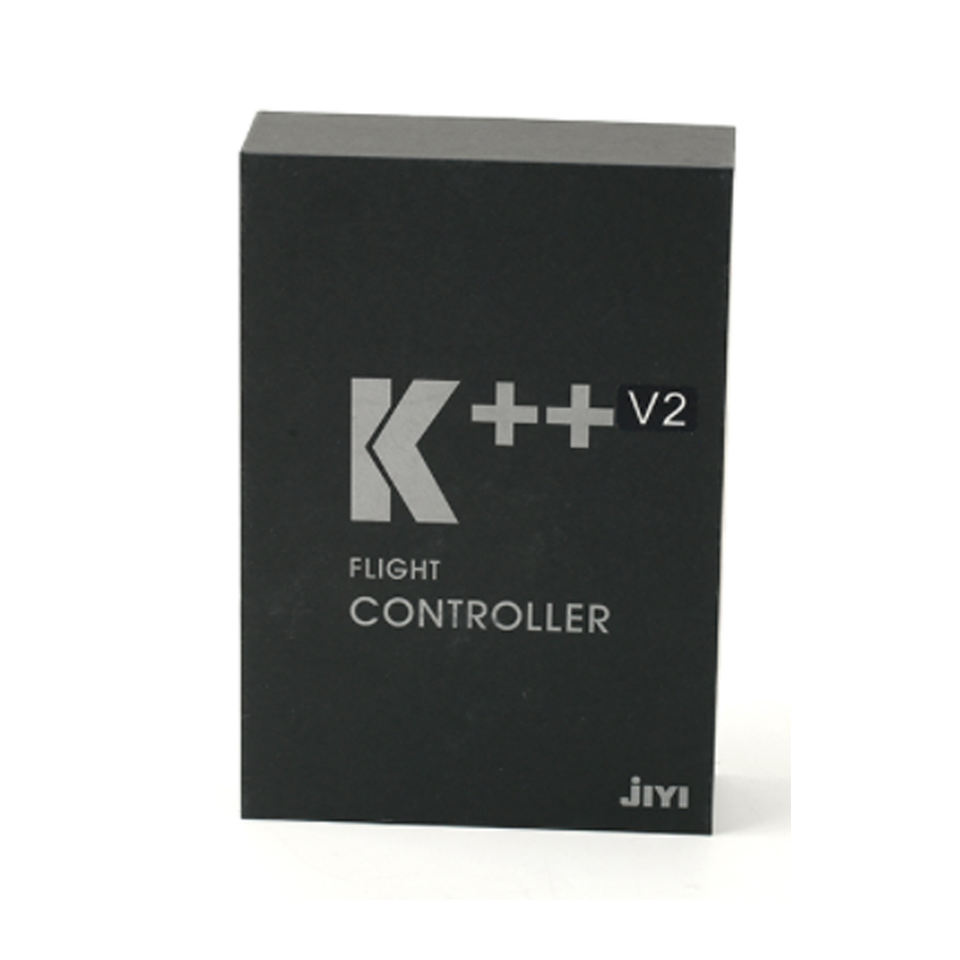

Jiyi K++ V2 Drone Flight Controller with Obstacle Avoidance Radar and Terrain Radar for Agricultural Spraying Drones Special
Specifications:Supported multi-rotor typesQuadrotor (+, X)Six rotors (+, X, IY and YI coaxial twins)Eight rotors (+, X, V)Supported ESC Type: 490HZ PWM ESCMaximum output: channel 8 channelsRecommended
Detailed Information
| Specifications: |
| Supported multi-rotor types |
| Quadrotor (+, X) |
| Six rotors (+, X, IY and YI coaxial twins) |
| Eight rotors (+, X, V) |
| Supported ESC Type: 490HZ PWM ESC |
| Maximum output: channel 8 channels |
| Recommended remote control type: SBUS receiver |
| Supported receiver types: PPM, S-BUS receiver |
| Support for expansion equipment: Radar, K-BOX, IOT, RTK, digital transmission, flow sensor module, FPV Camera |
| Working voltage: 2-12S |
| Power consumption is less than 5W |
| Working environment temperature -10-60 degrees |
| Storage ambient temperature -25-60 degrees |
| Seismic rating <1G |
| Flight characteristics |
| Hovering accuracy Horizontal direction ±1.5 m |
| Vertical direction ±0.5 m |
| Maximum tilt angle 30 degrees |
| Maximum yaw speed 150 degrees / sec |
| Maximum vertical speed 6 m / s |
| Wind resistance, continuous wind: level 5 |
