Detailed Information
Countless easy-to-use features let you get started right away.
1) Turtle Mode pre-setup.
2) No soldering is required for the whole drone, motors, and propellers adopting the plug-in mounting method.
3) A dedicated VTX mount bracket with a central grille opening, together with the air duct design in the drone, can dissipate heat when flying.
4) USER1 preset as video transmitter power supply switch, used to manually turn off the VTX when idle to safe power and prevent overheating.
5) Customized vibration damped O3 camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization, jello free.
Specifications

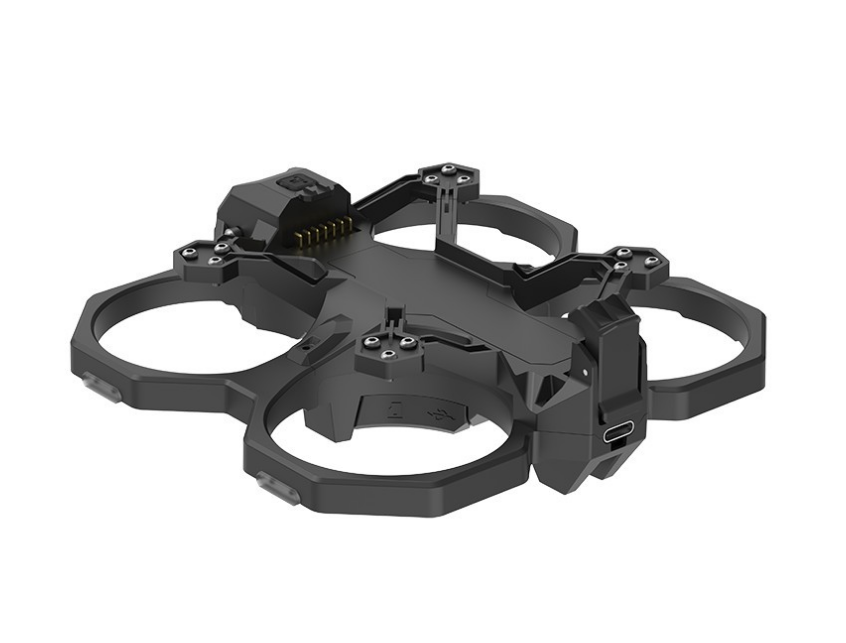

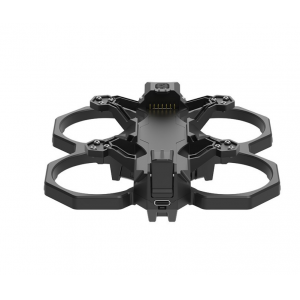

Product Name: Defender 20 O3 3S HD
Flight Electronics: Defender 16/20 F411 AIO
Video Transmission: Naked DJI O3 Air Unit
Frame wheelbase: 97mm
Motor: Defender20 1204 motors
Prop: Defender20 2020-3 props
Takeoff Weight incl. 900mAh battery: 170g
Dimensions (L×W×H)：135x136x52mm
Max Speed: 75Km/H (Manual Mode)
Maximum Takeoff Altitude: 2000 m
Max Hover Time: Approx. 7.5 mins(with 3S 900mAh battery)
Max Wind Speed Resistance: Level 3
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: N/A
Video Transmission
Product Name: Naked DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only)；5.725-5.850 GHz(RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A
Packing List
1 x Defender 20 O3 HD BNF
1 x Defender 20 3S 900mAh Battery
1 x Charging Adapter
4 x Defender 2020-3 Props (pairs)
1 x Propeller Removal Tool
Note
1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1)Any military combat purpose or military combat related use;
(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
