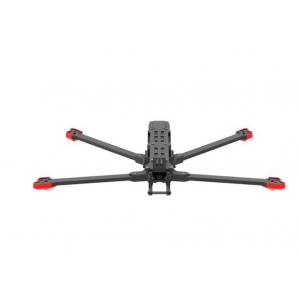

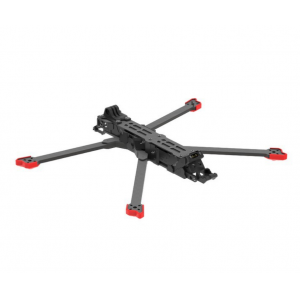

iFlight Chimera9

Description

• The KING of Long Range FPV! A super-efficient iFlight 9inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended for slow cruising


Specifications

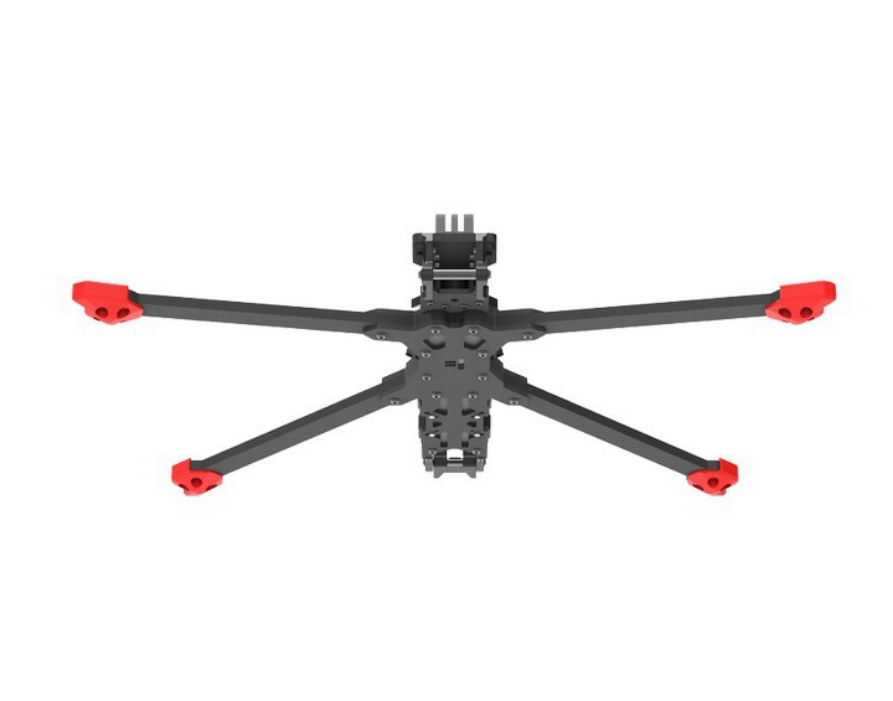

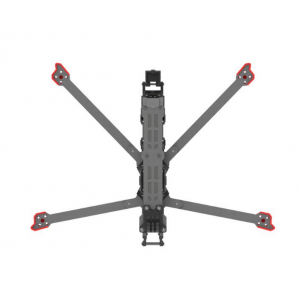

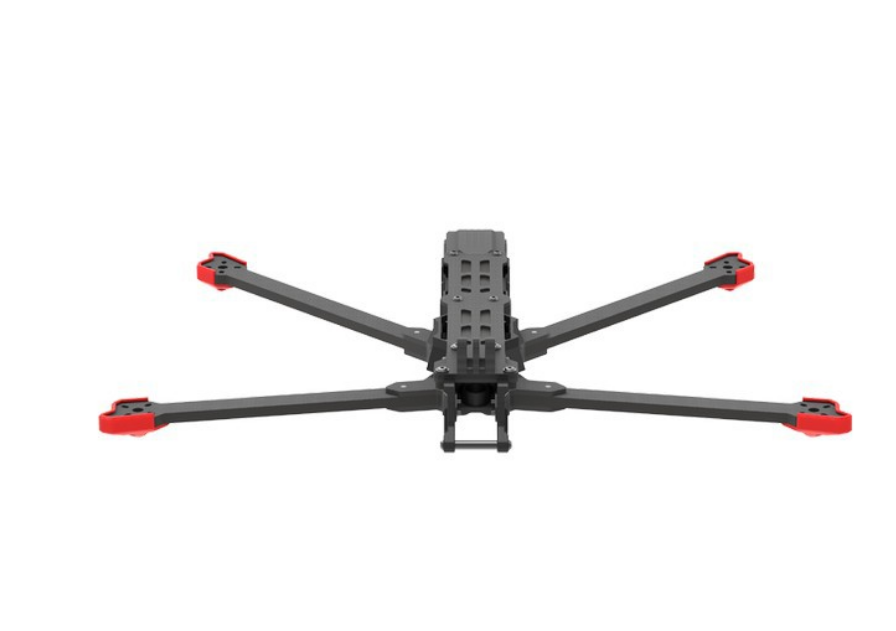

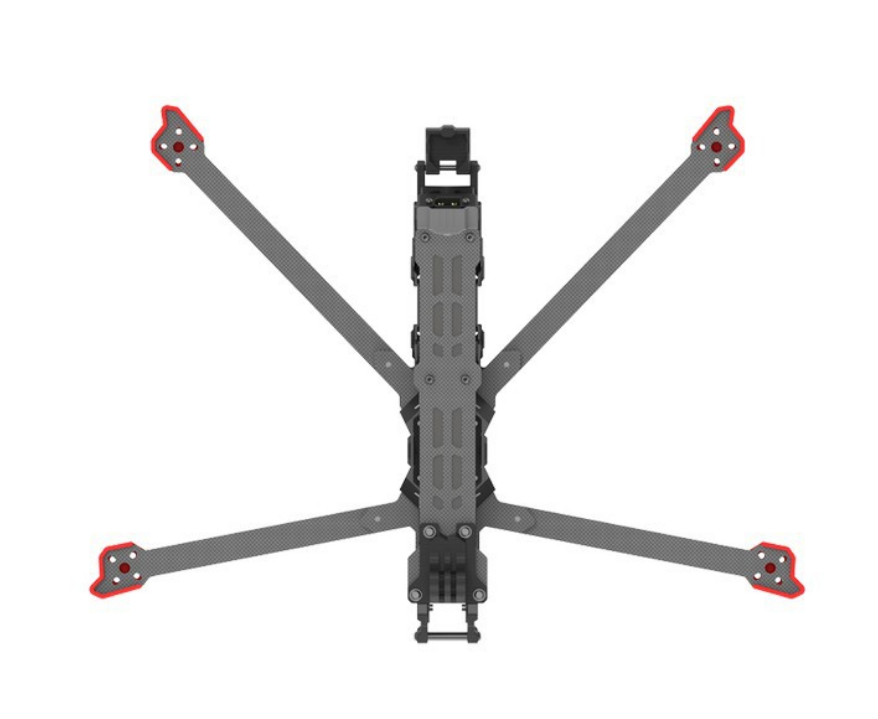

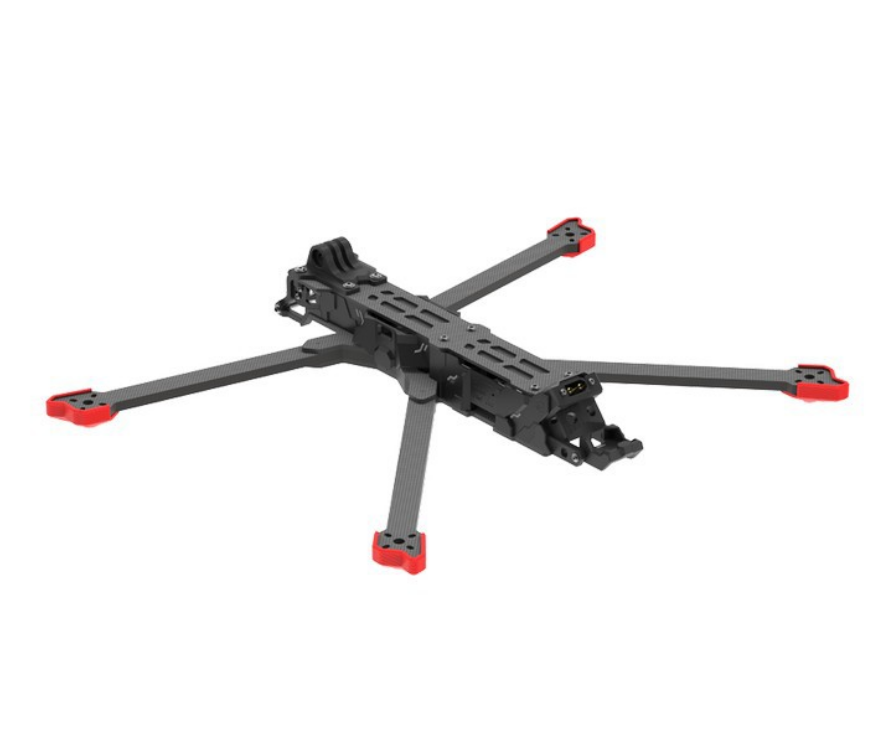

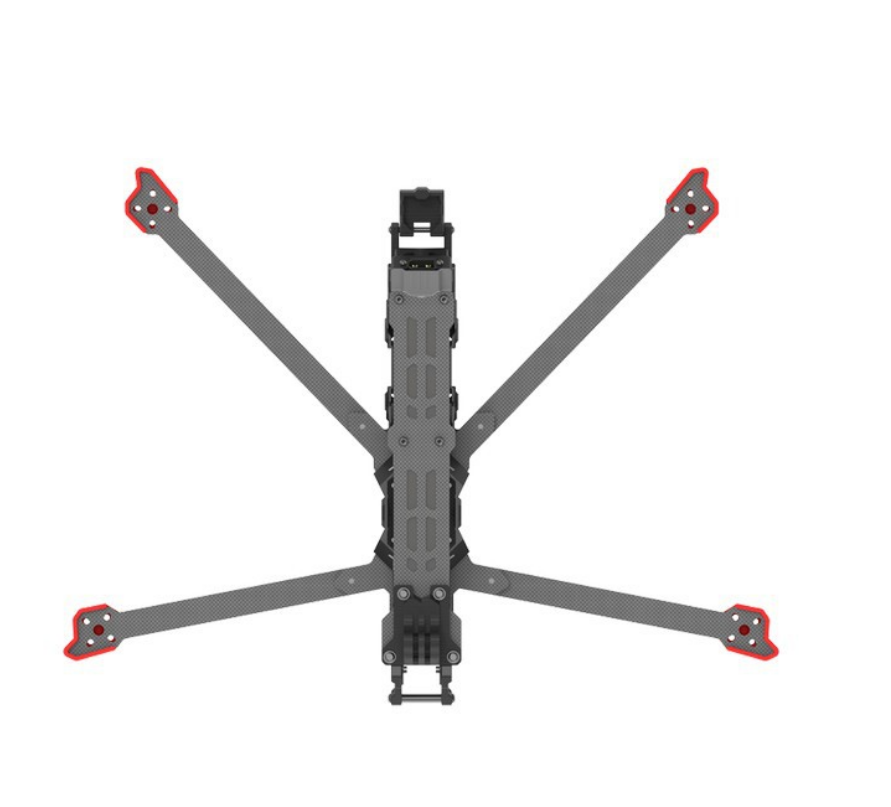

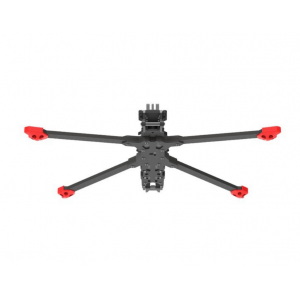

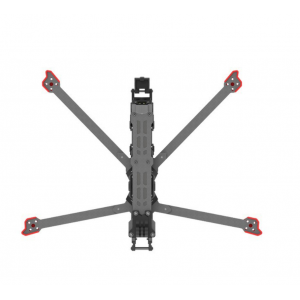

• Product Name: Chimera9 ECO Frame Kit

• Geometry: DeadCat(DC)

• Wheelbase: 405mm

• Frame Dimension: L360*W235*H34 mm

• Frame Body Dimension: 34mm

• Arm Thickness: 6mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 2mm

• Upper Plate Thickness: 3mm

• Max Flight Stack Height: 21mm

• Max VTX Height: 30mm

• Flight Stack Mounting: 30.5*30.5mm φ3mm

• VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

• Motor Mounting: 16x16mm / 19*19mm φ3mm

• Weight: 377g

Packing List

• 1 x Chimera9 ECO Frame Kit

• 1 x O3 Single Antenna TPU

• 1 x Screw Bag

• 1 x TPU Set

• 1 x Anti-Slip Battery Pad

• 2 x Battery Strap

• 4 x AMASS MR30 Plugs


Note: The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.
