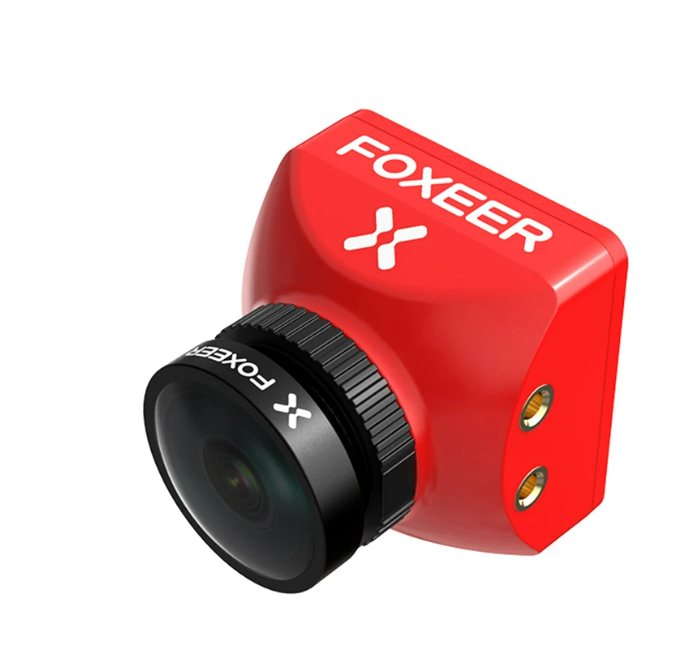

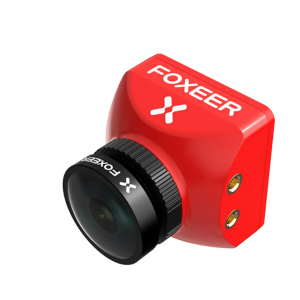

CAT 3 Mini / Micro

Specification:

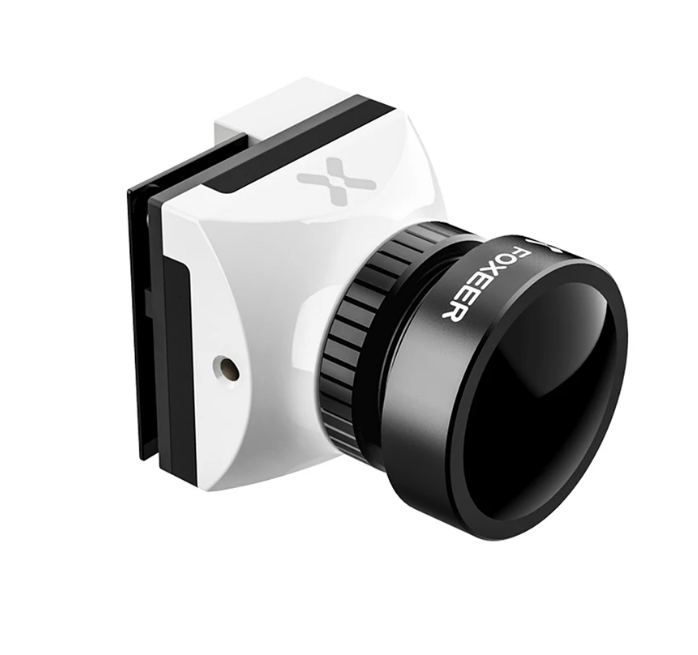

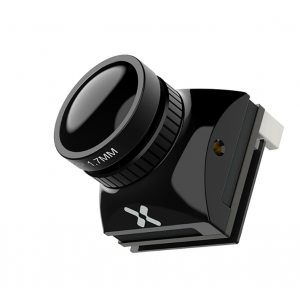

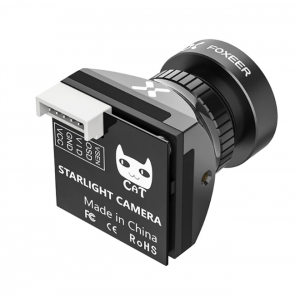

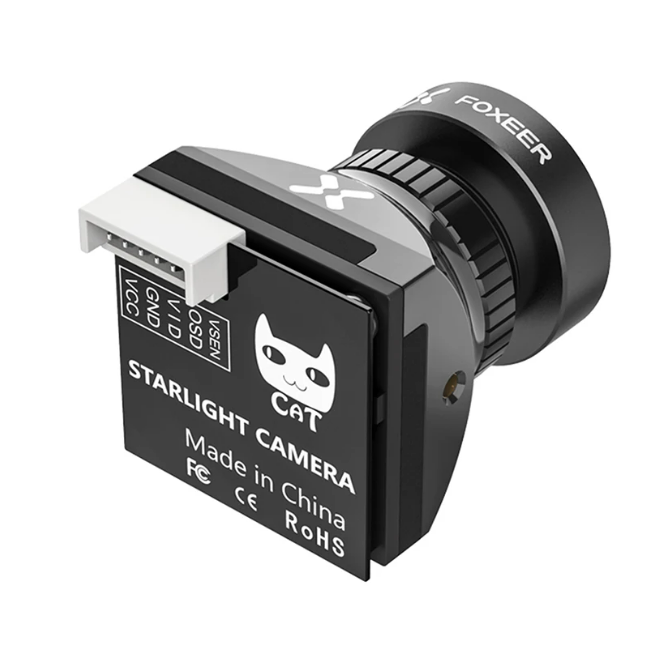

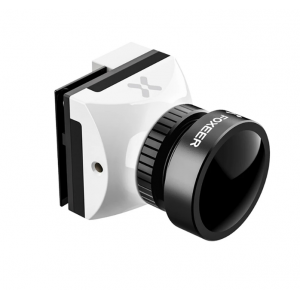

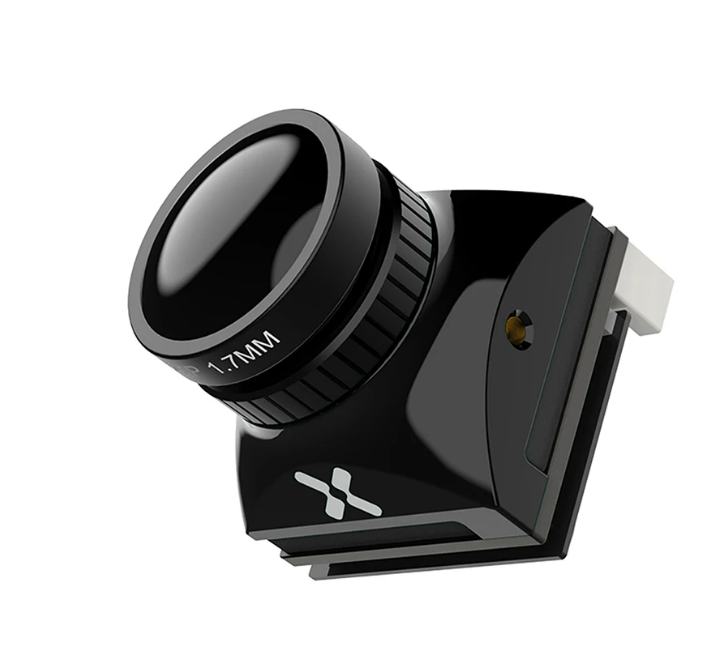

FOXEER Cat 3 MICRO

Sensor Type: CMOS 1/3

Scale: 4:3/16: 9 Switchable

TV System: PAL/ NTSC Switchable

Resolution: 1200TVL

FOV:

4:3 FOV-H 100° FOV-D 125°

16:9 FOV-H 100° FOV-D 115°

Shutter Speed (CCD IRIS)PAL: 1/25〜1/10000 sec; NTSC: 1/30〜1/10000 sec

Video Out: CVBS

White Balance: Auto

DNR: 3DNR

WDR: 100db

Day / Night: EXT/ Auto/ Color/ B&W

Flight OSD: Voltage/Cam Title/Time

Power Requirement: DC 4.6V〜20V

Language:

ENGLISH /PYCCKNN / ESPANOL/ITALIANO/

FRANCAIS/ POLSKIM/PORTUGUES /JAPPANESE

Working Temperature: -10°C~+50°C RH90% MAX

Working Humidity: 20-80%

Storage Temperature: -20°C~+70°C

Storage Humidity: 20-95%

Dimensions(mm): 19x19mm

Weight (g): 10.7

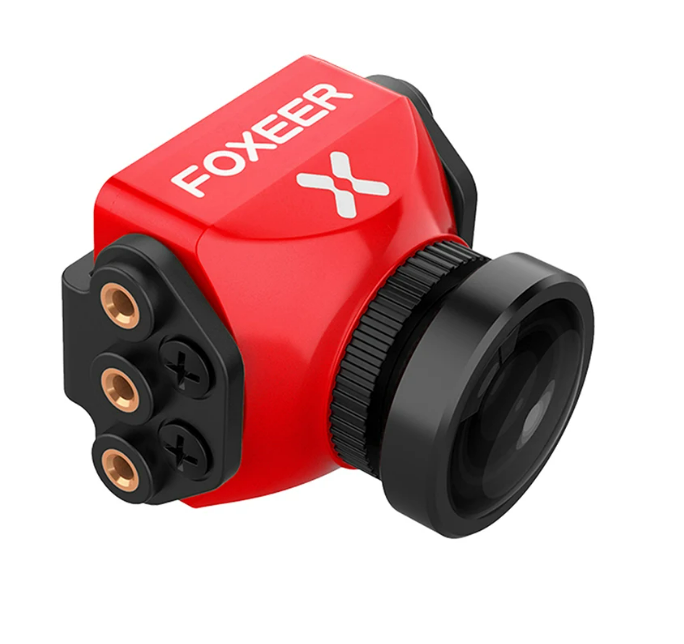

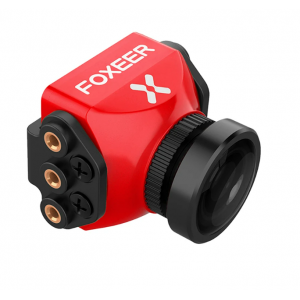

FOXEER Cat 3 Mini

Sensor Type: CMOS 1/3

Scale: 4:3/16:9 Switchable

TV System: PAL/ NTSC Switchable

Resolution: 1200TVL

FOV:

4:3 FOV-H  100° FOV-D 125°

16:9 FOV-H 100° FOV-D 115°

Shutter Speed (CCD IRIS): PAL: 1/25〜1/10000 sec; NTSC: 1/30〜1/10000 sec

Video Out: CVBS

White Balance: Auto

DNR: 3DNR

WDR: 100db

Day / Night Shift: EXT/ Auto/ Color/ B&W

Flight OSD: Voltage/Cam Title/Time

Power Requirement: DC 4.6V〜20V

Language

ENGLISH /PYCCKNN / ESPANOL/ITALIANO/

FRANCAIS/ POLSKIM/PORTUGUES /JAPPANESE

Working Temperature: -10°C~+50°C RH90% MAX

Working Humidity: 20-80%

Storage Temperature: -20°C~+70°C

Storage Humidity: 20-95%

Comsumption:  95mA土 15%@DC12V

Dimensions(mm): 22*22mm

Weight (g): 12.2

Package Included:

1x Foxeer Cat 3 Camera (as your choice)
