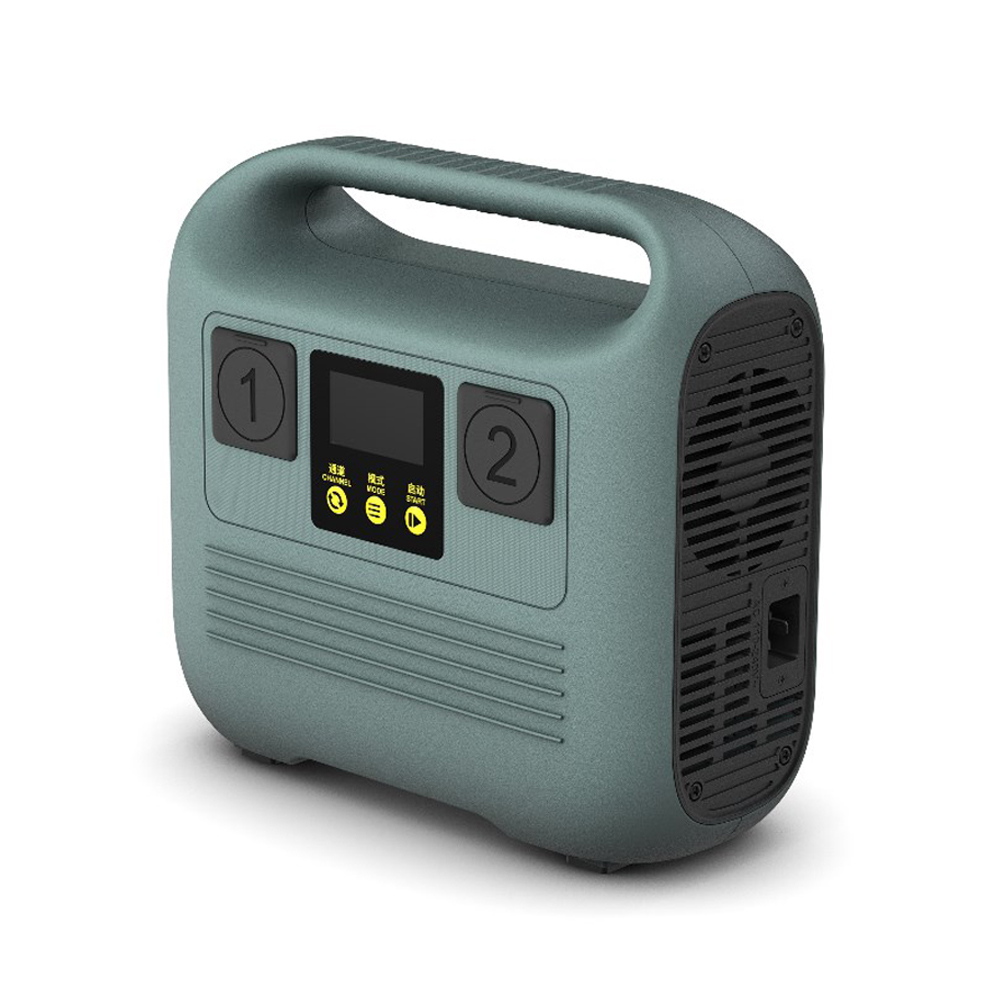

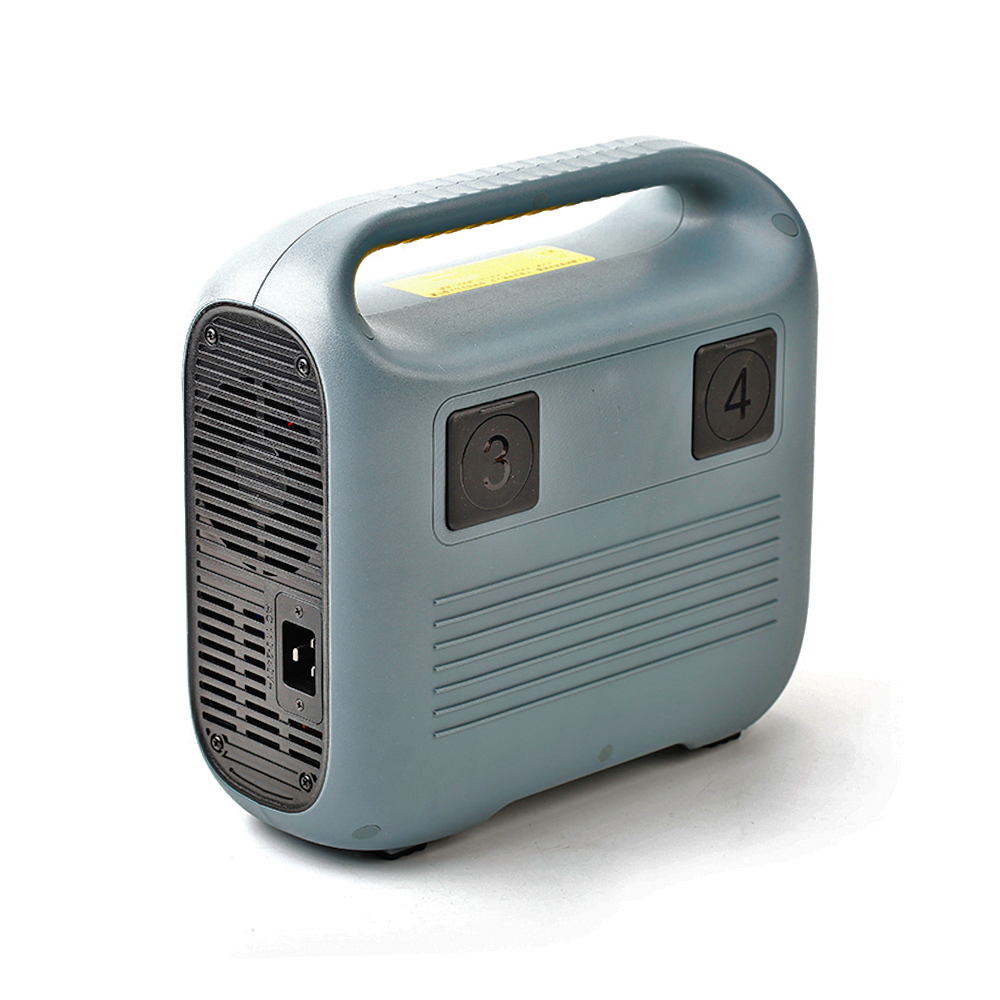

Skyrc PC2500 2500W 45A 4 Channel Fast Charging Lithium Agricultural Uav Intelligent Battery Balance Charger
Itembrand:SKYRCItemModel:PC2500SizeandWeightHousingMaterial:Plastic(FlameRetardantPC+ABS)Size:294mmx139mmx282mmPowerSupply:ACInput:100-240VChargingPower:AC220V:2500WAC120V:1200WBatteryType:LithiumBatt
Detailed Information
| Item brand: | SKYRC |
| Item Model: | PC2500 |
| Size and Weight | |
| Housing Material: | Plastic (Flame Retardant PC+ABS) |

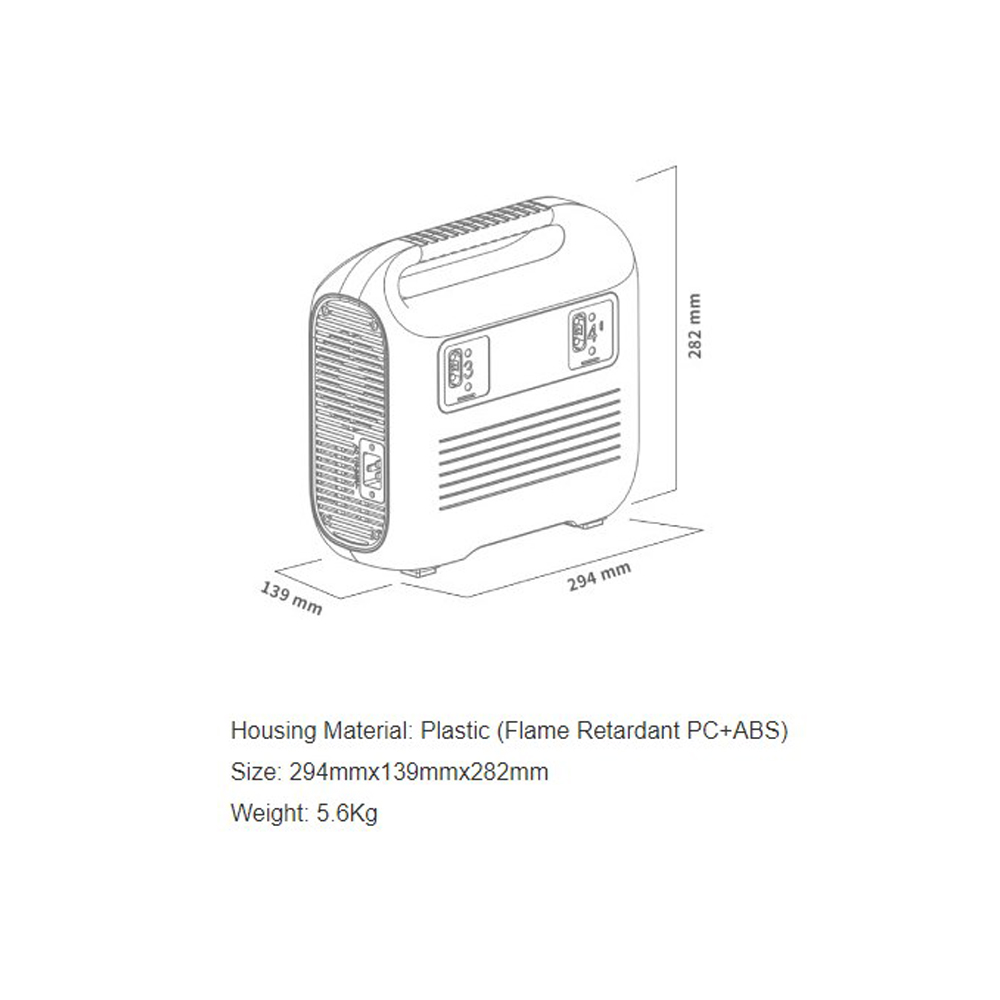

| Size: | 294mmx139mmx282mm |
| Power Supply: AC Input: | 100-240V |
| Charging Power: | |
| AC220V: | 2500W |
| AC120V: | 1200W |
| Battery | |
| Type: | Lithium Battery |
| LiPo Battery Cells: | 12S/14S |
| LiHV Battery Cells: | 12S/14S |
| Charge/Discharge | |

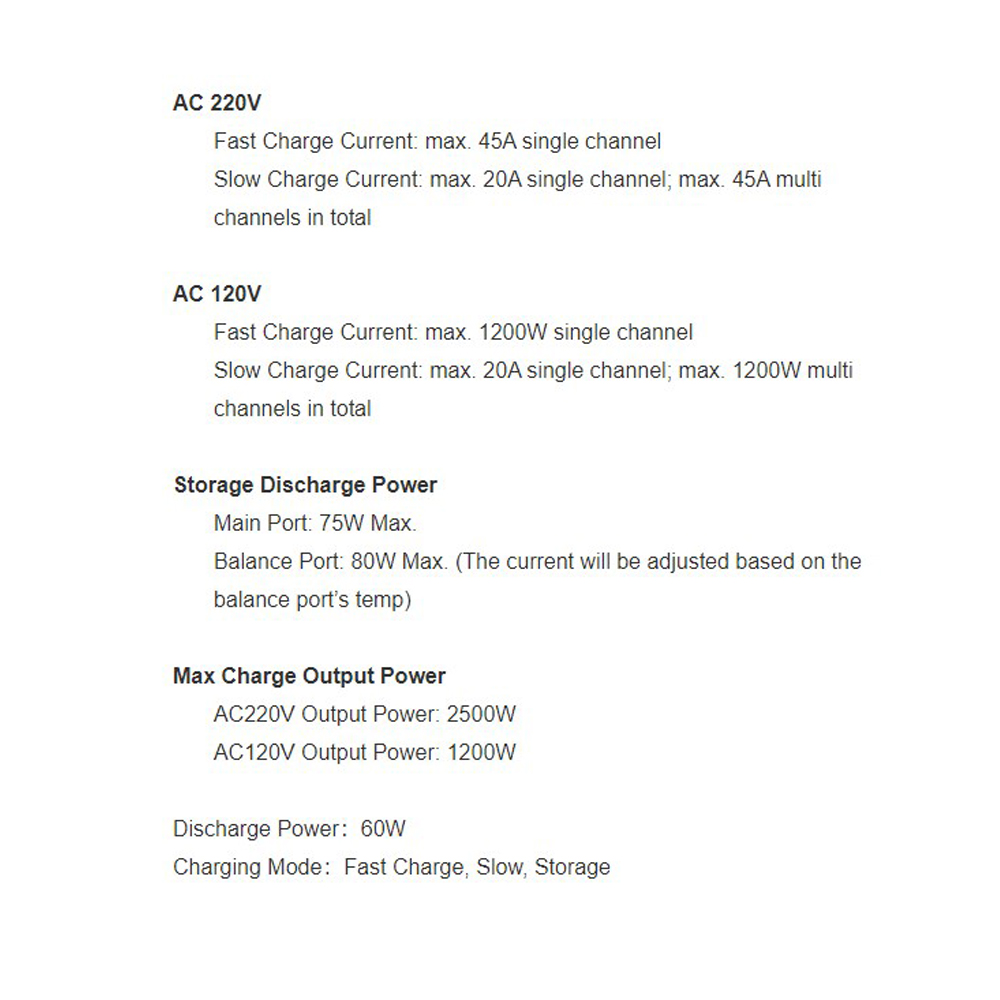

| AC 220V | |
| Fast Charge Current: | max. 45A single channel |
| Slow Charge Current: | max. 20A single channel; max. 45A multi channels in total |
| AC 120V | |
| Fast Charge Current: | max. 1200W single channel |
| Slow Charge Current: | max. 20A single channel; max. 1200W multi channels in total |
| Storage Discharge Power | |
| Main Port: | 75W Max. |
| Balance Port: | 80W Max. (The current will be adjusted based on the balance port's temp) |
| Max Charge Output Power | |
| AC220V Output Power: | 2500W |
| AC120V Output Power: | 1200W |
| Discharge Power: | 60W |
| Charging Mode: | Fast Charge, Slow, Storage |
| Working and Storage | |
| Working Temperature: | 0ºC-40ºC |
| Working Humidity: | 0%-75% |
| Storage Temperature: | -10ºC-70ºC |
| Storage Humidity: | 0%-75% |

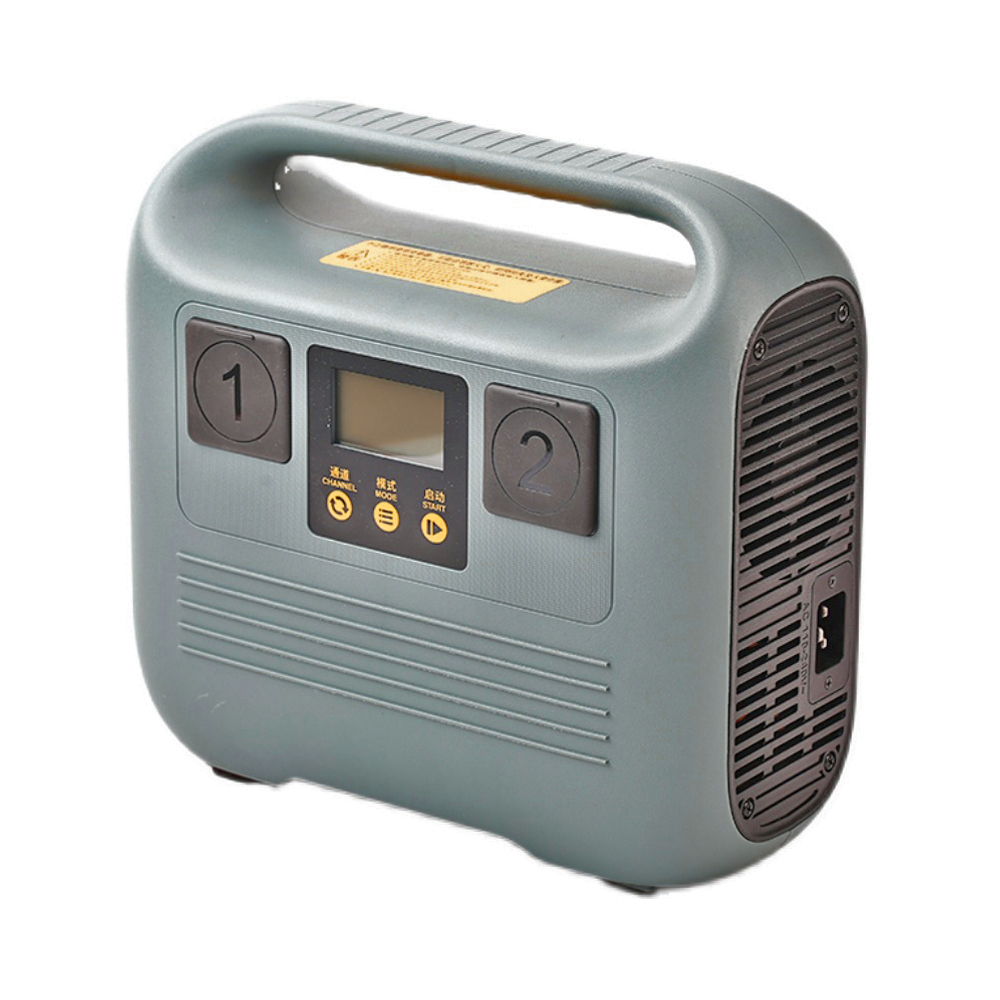

SKYRC PC2500 12/14S Agricultural UAV Intelligent 2500W 45A 4 Channel High-power Fast Charging Lithium Battery Charger For Drone
SkyRC PC2500 2500W 4 Channel 45A battery charger is an intelligent charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It is compatible with Tattu Swift 12S 16000MAH, 22000MAH, Swift Pro 12s 22000mah, Okcell 12S 8000mah to 28000mah battery, FullyMAX battery, Super Poly Power battery and etc.

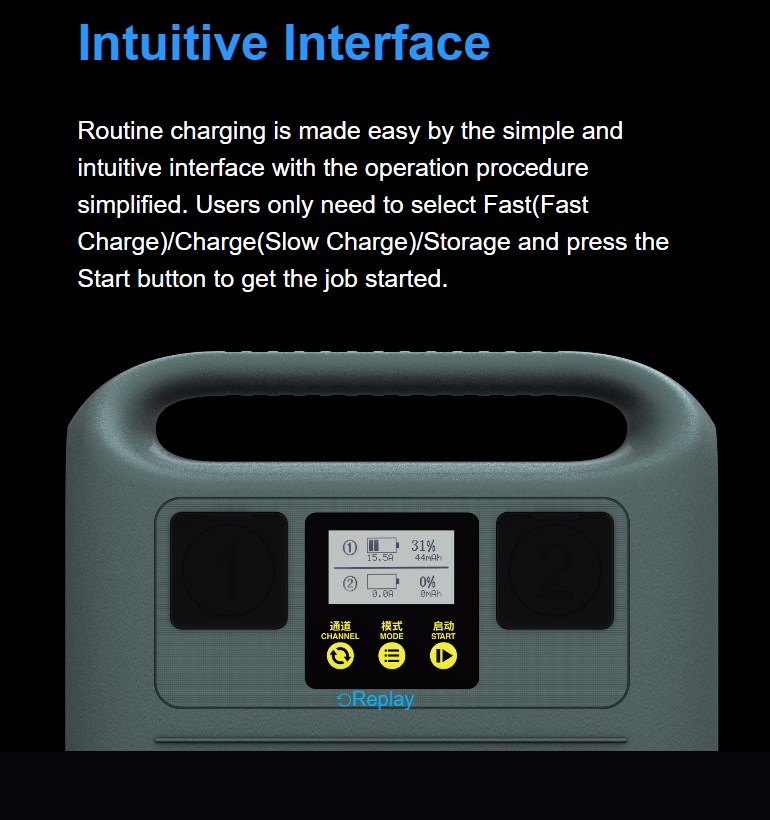

SkyRC PC2500 battery charger can connect four batteries at the same time. The charger's maximum output power is up to 2500W, with three modes: Fast(Fast Charge), Charge(Slow Charge), Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging is convenient and straightforward with a better user experience.
Main Features:
--- The Max. output can reach 2500W and the Max. Current is 45A, a 12S 16000mah battery can be fully charged in about 15 minutes;

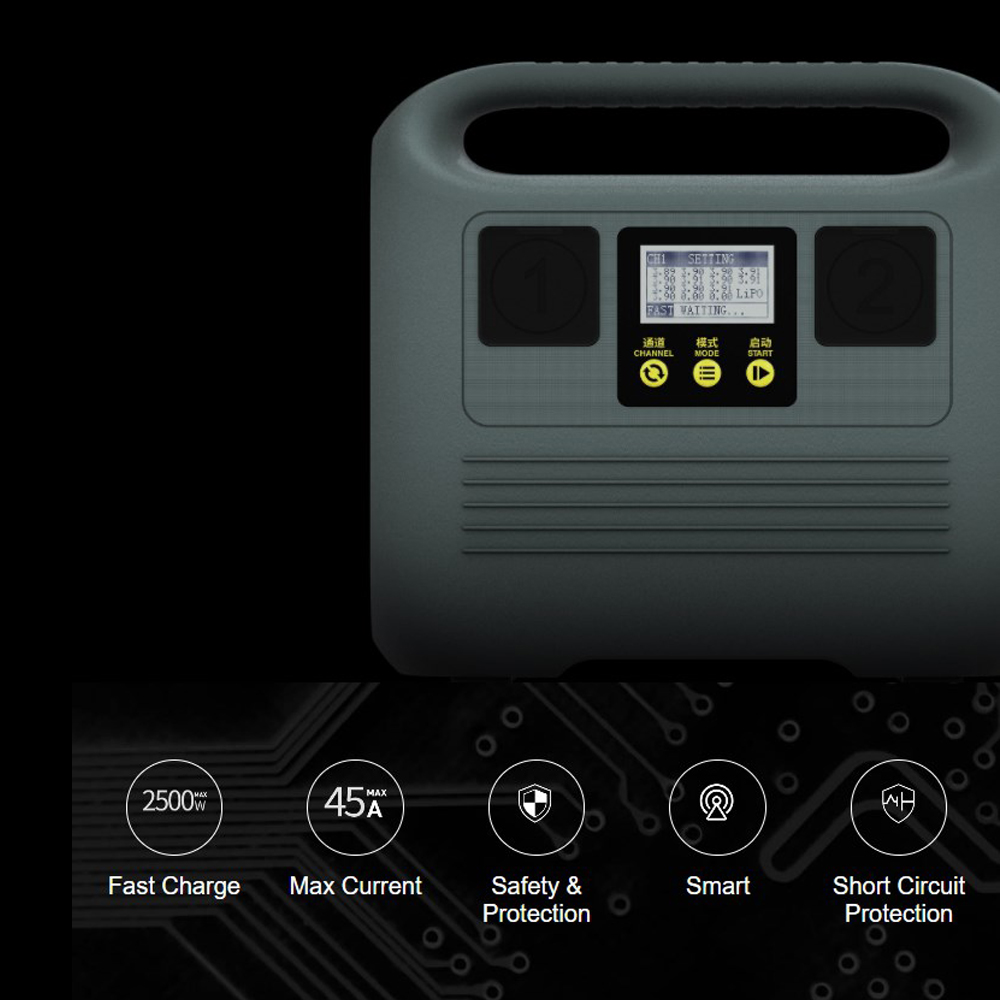

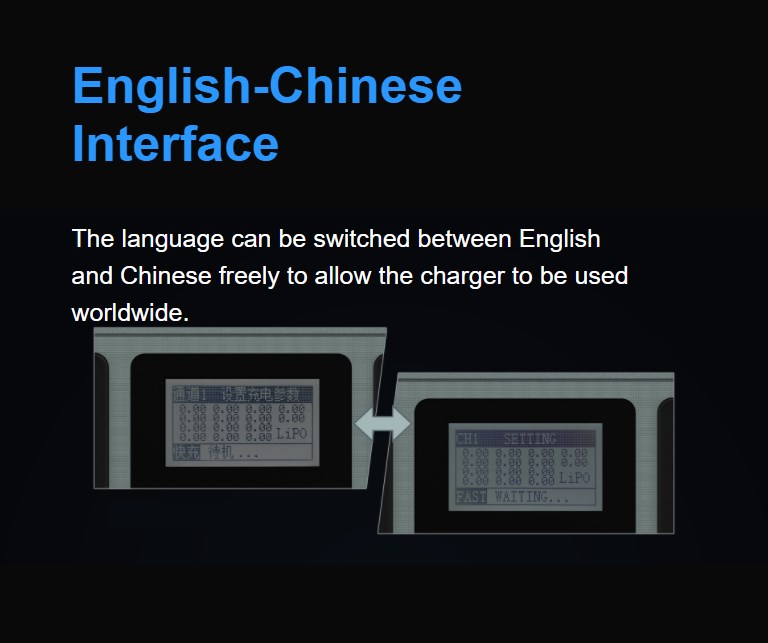

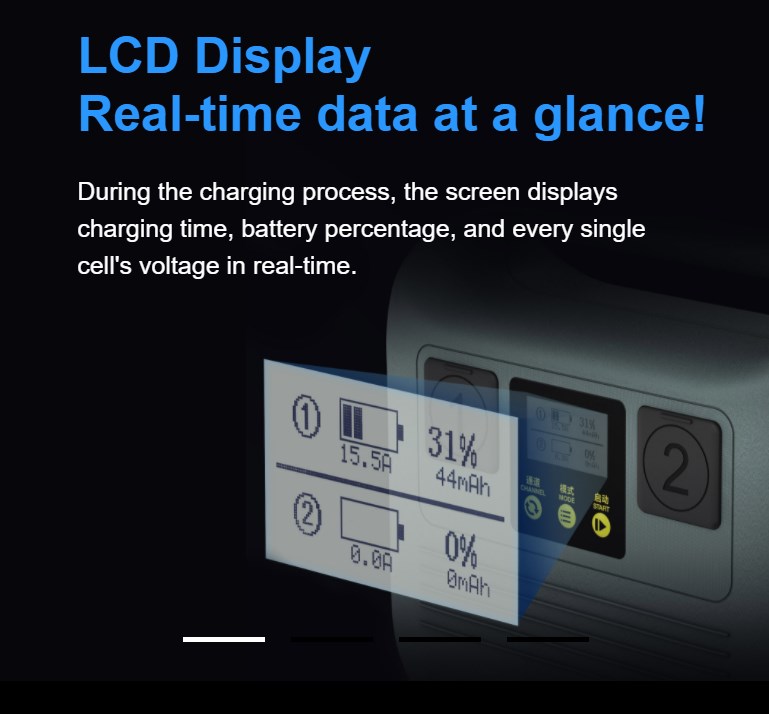

---The LCD shows the charging process in real time, such as the charging time, battery percentage, single cell voltage and etc;

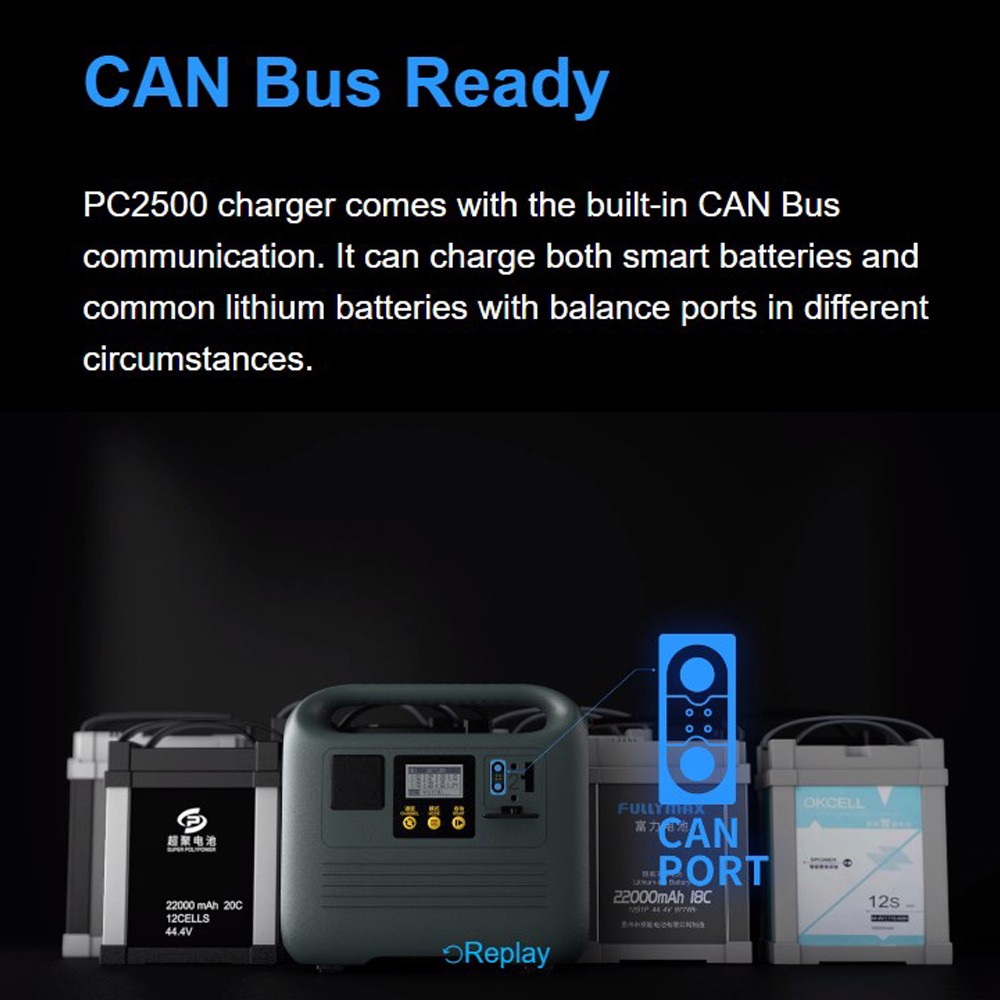

---PC2500 charger comes with built-in CAN Bus communication;

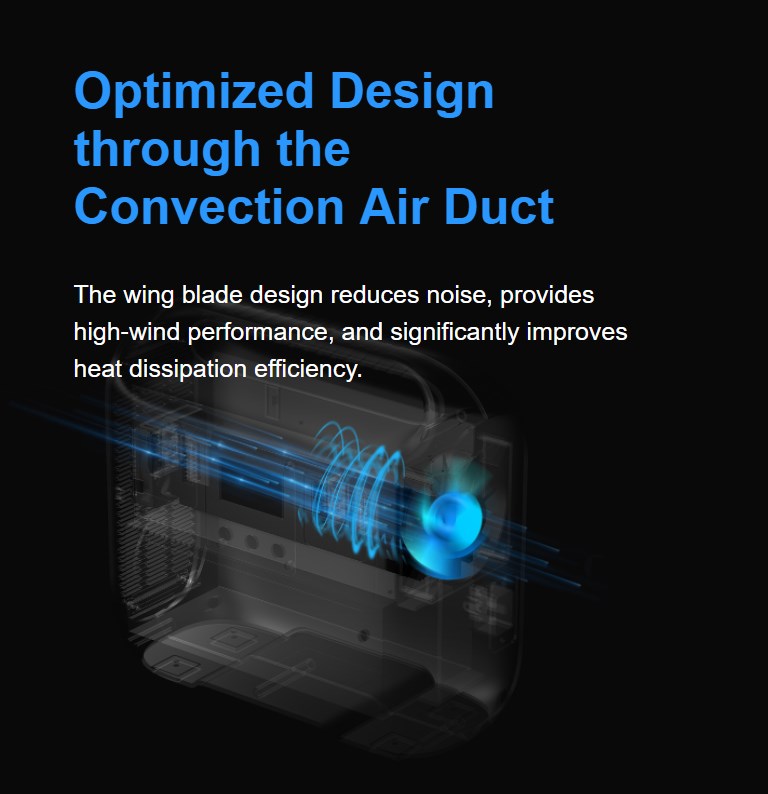

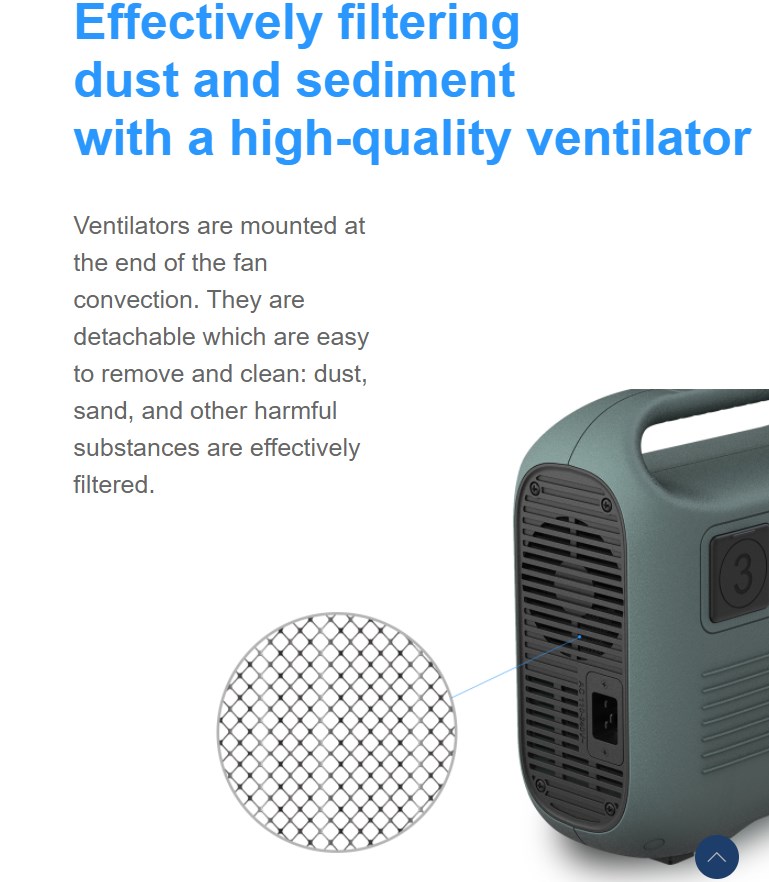

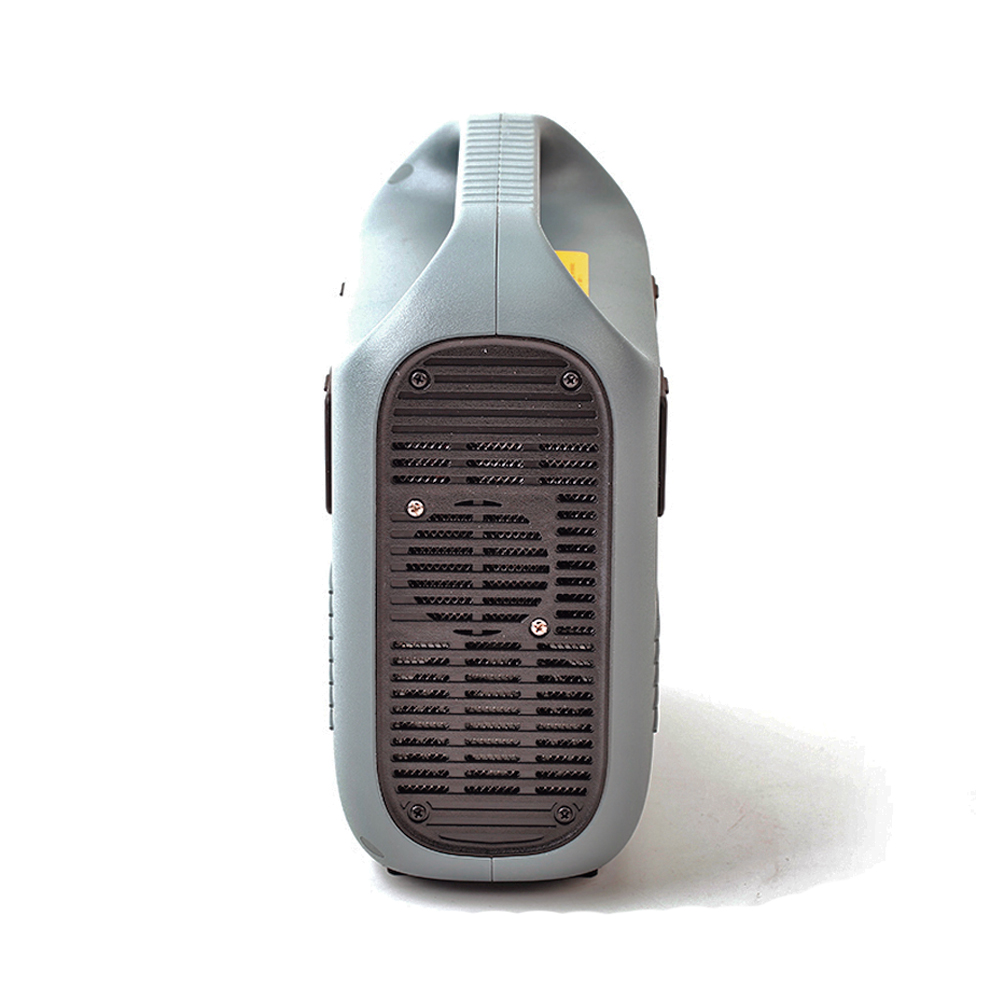

---Effectively filtering dust and sediment with a high-quality ventilator
---Short Circuit Protection;
---Reverse Polarity Protection;
---Over-temperature Protection.
