Detailed Information

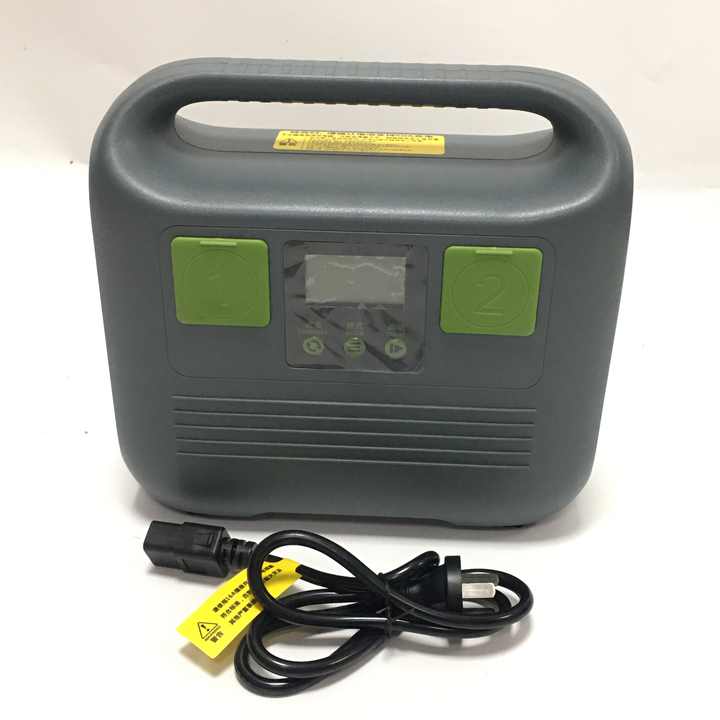

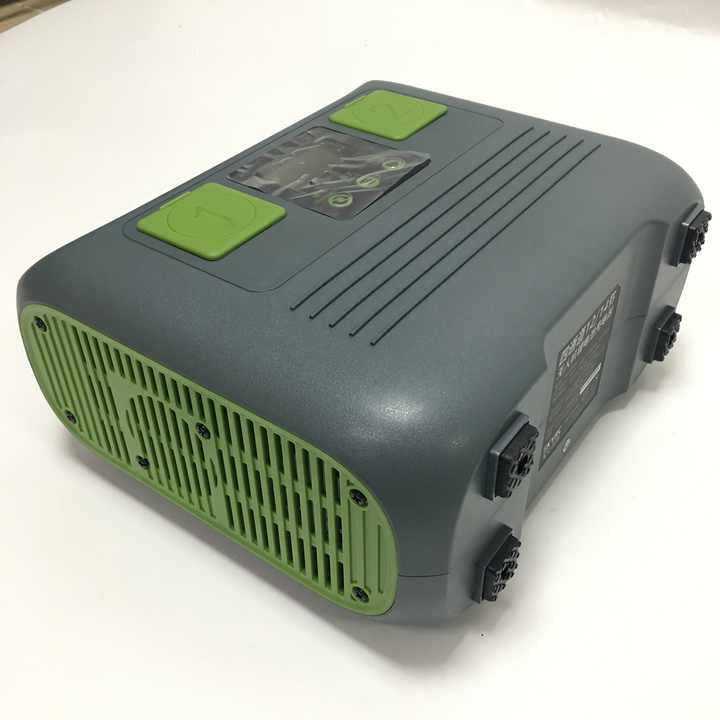

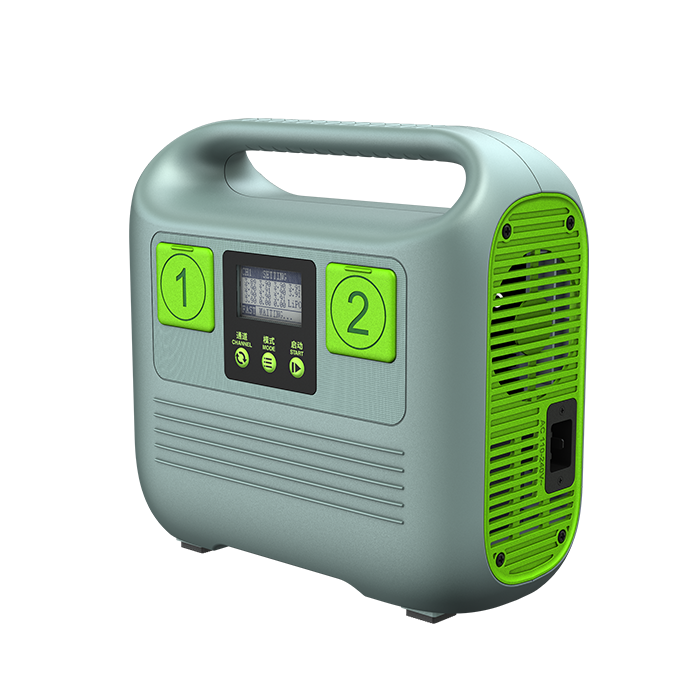

| Item brand: | SKYRC |
| Item Model: | PC3000 |
| Size and Weight | |

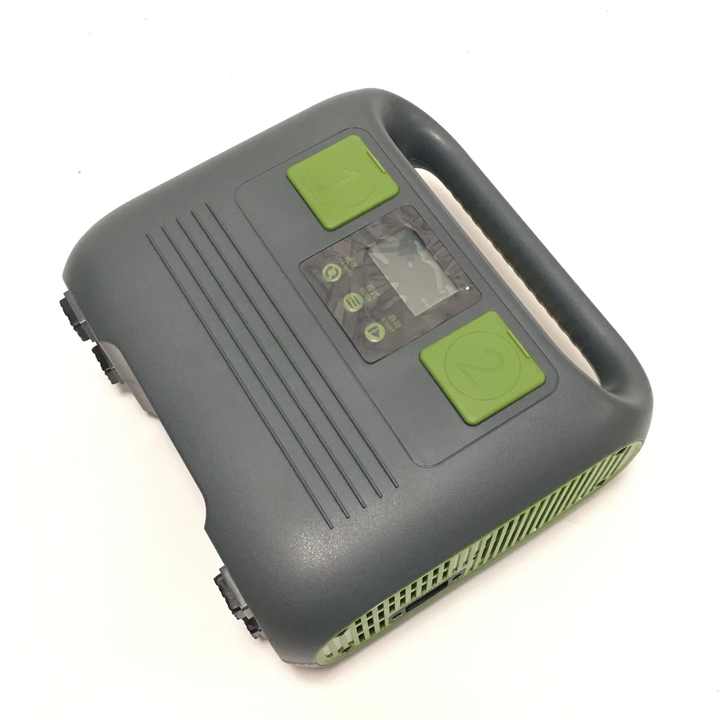

| Housing Material: | Plastic (Flame Retardant PC+ABS) |
| Size: | 200mmx180mmx180mm |
| Power Supply: AC Input: | 100-240V |
| Charging Power: | |
| AC220V: | 3000W |
| AC120V: | 1500W |
| Battery | |
| Type: | Lithium Battery |
| LiPo Battery Cells: | 12S/14S |

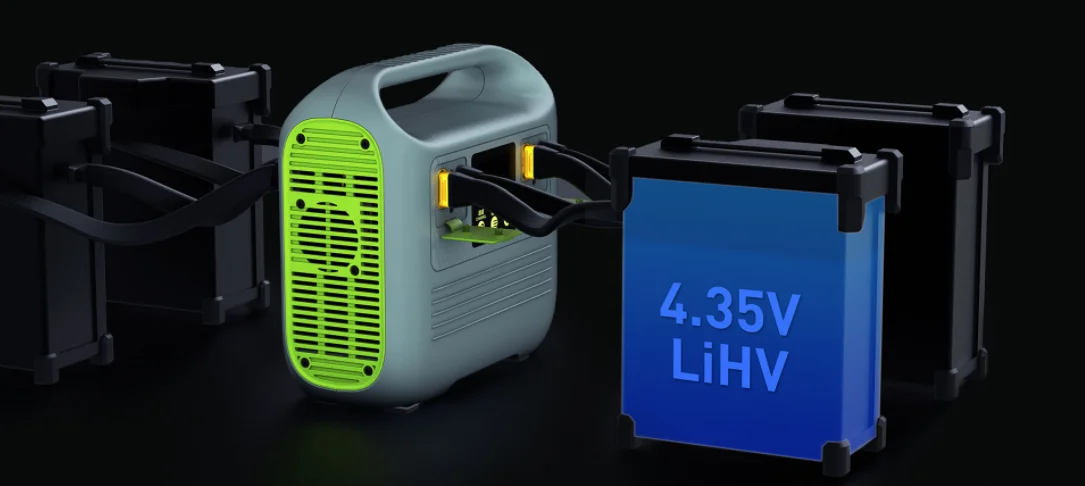

| LiHV Battery Cells: | 12S/14S |
| Charge/Discharge | |
| AC 220V | |
| Fast Charge Current: | max. 45A single channel |
| Slow Charge Current: | max. 20A single channel; max. 45A multi channels in total |
| AC 120V | |
| Fast Charge Current: | max. 1500W single channel |
| Slow Charge Current: | max. 30A single channel; max. 1500W multi channels in total |
| Storage Discharge Power | |
| Main Port: | 75W Max. |
| Balance Port: | 80W Max. (The current will be adjusted based on the balance port's temp) |
| Max Charge Output Power | |
| AC220V Output Power: | 3000W |
| AC120V Output Power: | 1500W |
| Discharge Power: | 60W |

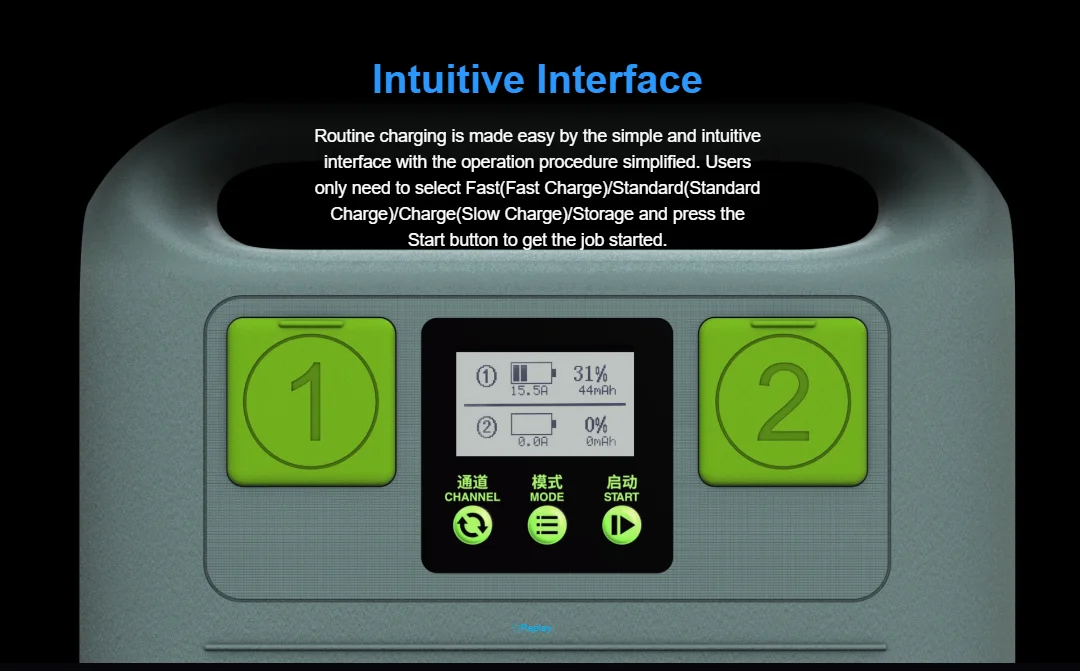

| Charging Mode: | Fast Charge, Slow, Storage |
| Working and Storage | |
| Working Temperature: | 0ºC-40ºC |
| Working Humidity: | 0%-75% |
| Storage Temperature: | -10ºC-70ºC |
| Storage Humidity: | 0%-75% |
